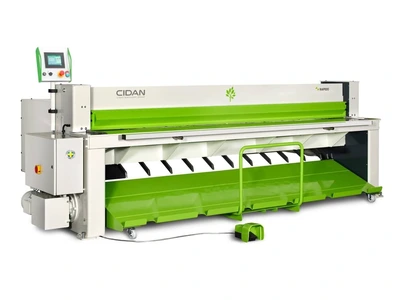

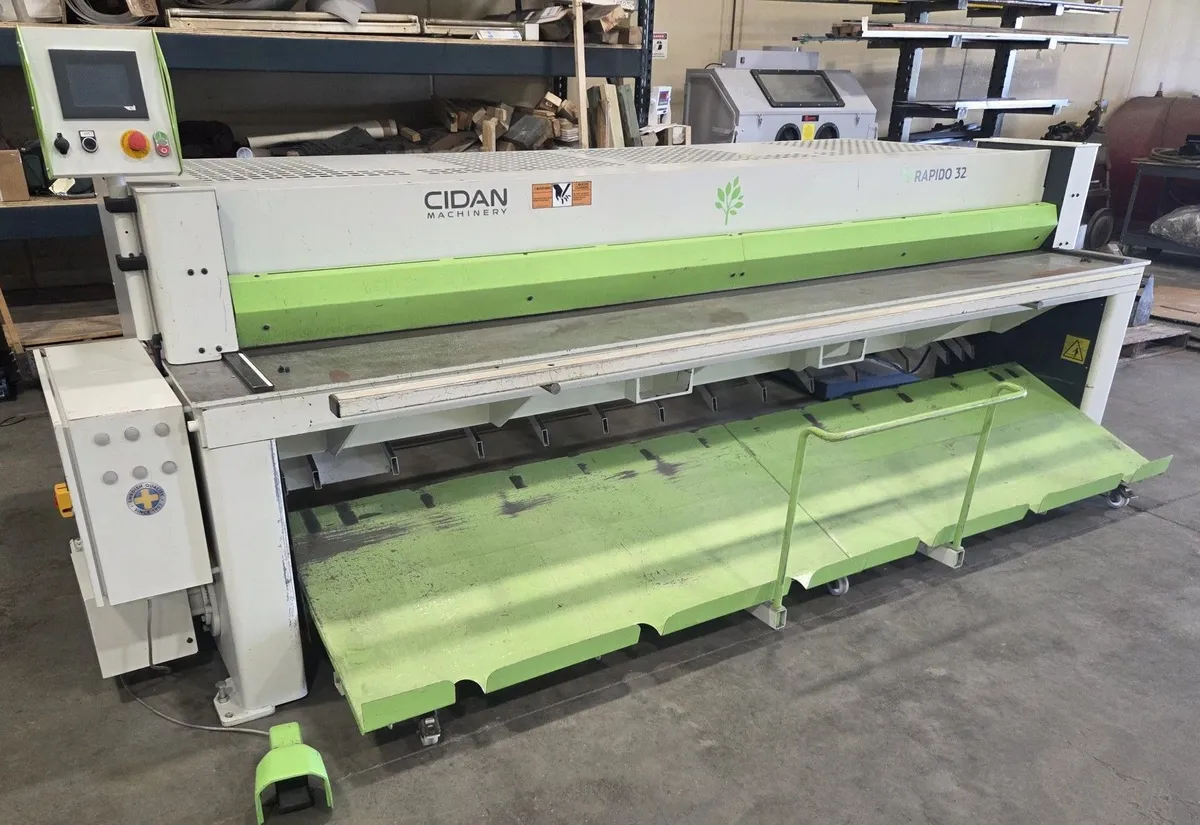

CIDAN RAPIDO 32

Description

This shear is a Cidan Shear Model Rapido 32 (126′′ x 13ga.) new in 2021 and comes with the 30′′ Power
Back Gauge & Front Return Package. The package comes with Front Drop Cart; Rear Material Sheet Supports for easy part retrieval and is wired 230V/3ph.
This late model Rapido 32 has the CNC CUTLINK which makes it easy to position your cut from 0-29.5” (0-700mm) in less than 4 seconds. Create, Save and Load up to 50 Programs. Allows up to 99 different dimensions and 999 cuts per program. Parts counter and pause function on sheet support raising after large width cut. Conversion from metric to imperial inches is one button away.

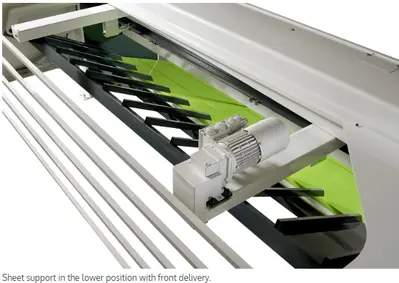

The Rapido's rear sheet support is pneumatically operated for maximum control. This allows you to adjust the speed of the sheet support based on the material type you are working with. An advantage when working with large pieces or sensi-tive material such as zinc or copper.
After the cut, the sheet support will drop the material to either a return plate in Front or optional material wagon at either the front (standard) or rear (option) of the machine.
Specifications
Max Gauge................................... 13 gauge
Length of Blade........................... 126"
Hyd/Mech................................... Mechanical
Back Gauge................................. 29.5"
Power.......................................... 4 hp
SPM............................................. 37 strokes/min.
Control........................................ CNC (CutLink)
PLEASE SEE THE CIDAN F-32 CNC FOLDER THAT CAN BE SHIPPED WITH THIS SHEAR.
