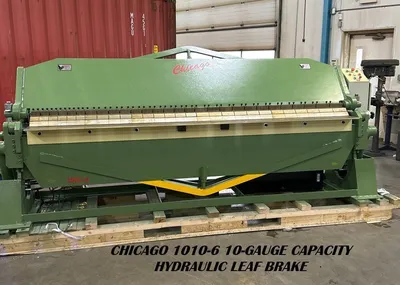

CHICAGO DREIS & KRUMP HBPU 1010-6

Description

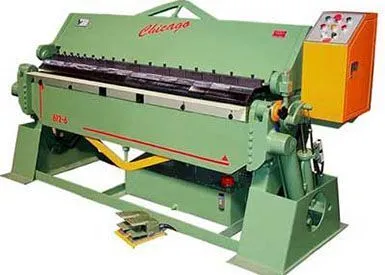

This a 10-gauge capacity, high-quality, heavy-duty Model HBPU-1010-6 Hydraulic Folding Brake.

Specifications
Bending Length: 120-inches
Capacity Mild Steel: 10-gauge Mild Steel
Capacity Stainless Steel: 14-gauge Stainless Steel
Motor: 5 HP
Dimensions: 160"(L) x 48"(F-B) x 72"(H)
Shipping Weight: 8800 lbs.

STANDARD EQUIPMENT on each Chicago Hydraulic Power Bending Brake:
- Removable Nose Bar.
- Bolted Bottom Bar.
- Compact Hydraulic Power Unit.
- Angle Bar.
- Insert Bar.
- Oil Level Sight Gauge.
Control Panel Features:
- On/Off Key Selector Switch.
- Bending Leaf Up/Down Pushbuttons.
- Clamp/Unclamp Pushbuttons.
- Motor Start Pushbutton.
- Emergency Stop Push Button.
- Automatic Cycle Push Button.
- Electric Foot Switch – Clamps and unclamps Top Leaf. Allows operator mobility when loading and unloading Material.
- Bend Angle Dial Adjustment – Adjustable cam and scale that read in degrees, actuates an electric limit
switch for bend angle control and repeatability of bends.
- Material Thickness Dial Adjustment – Reference scale for speedier set up when adjusting clamping
pressure.
- Back Gauge – 25 1/2″ travel, rack and pinion type gauge with hand wheel adjustment on right side of
machine. Inch/Cm scales.
Optional: Power Back Gauge with digital readout – electric push button operation.
- Inch Control – Bending leaf up/down pushbuttons allow complete operator control of the bending leaf
motion.
- Automatic Cycle – Actuating the “Automatic Pushbutton” clamps the top leaf, raises the bending leaf to
the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf.
