ACS EVO-T Tube Laser

Description

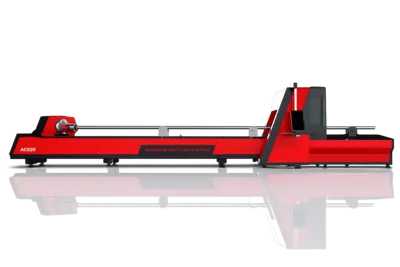

The EVO-T Fiber Tube Laser from Advance Cutting Systems is a high-performance tube and pipe cutting system designed to deliver precision, flexibility, and efficient material handling for a wide range of fabrication applications. Featuring an FDA-approved enclosed cutting head for enhanced operator safety, the EVO-T offers travel speeds up to 1,653 IPM with 1 G acceleration and supports laser power capacities up to 12,000 Watts. Equipped with an auto-focus cutting head, the EVO-T is available in multiple cutting lengths including 21 ft, 31 ft, and 41 ft configurations, along with pipe capacities of 9.4”, 11”, and 14” diameters.

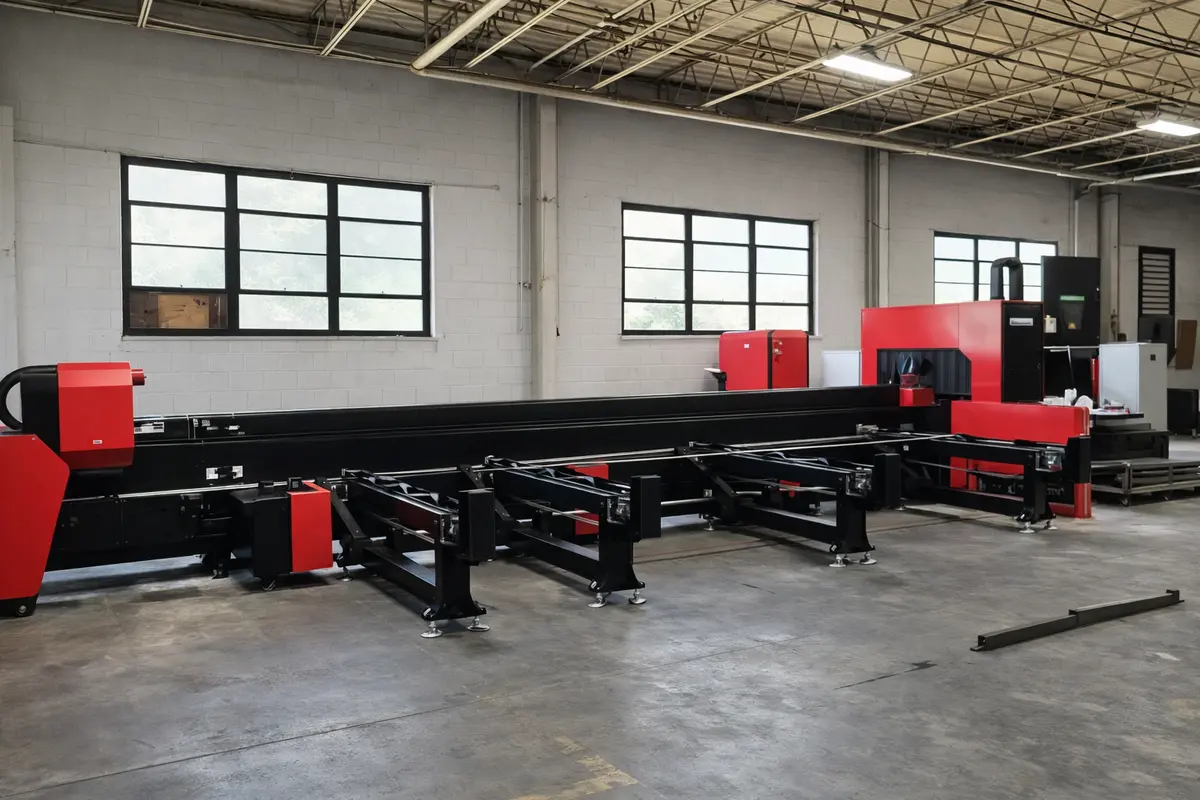

To maximize productivity and automation, Semi & Fully Auto Loading & Unloading, the EVO-T can be configured with manual loading, semi-automatic loading, or fully automatic loading and unloading systems depending on production requirements. An optional Zero Drop 3-Chuck System is also available to help reduce material waste and improve usable tube yield.

Max Travel Speed: 1,653 IPM
Acceleration: 1 G
Max Laser Power: 12,000 Watts
Cutting Lengths: 21 ft, 31 ft, 41 ft
Pipe Capacity: 9.4", 11", 14" diameter
Contact us at 800-753-0393 or email us at sheetmetalmachines@gmail.com
