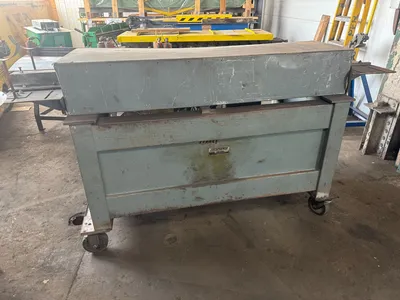

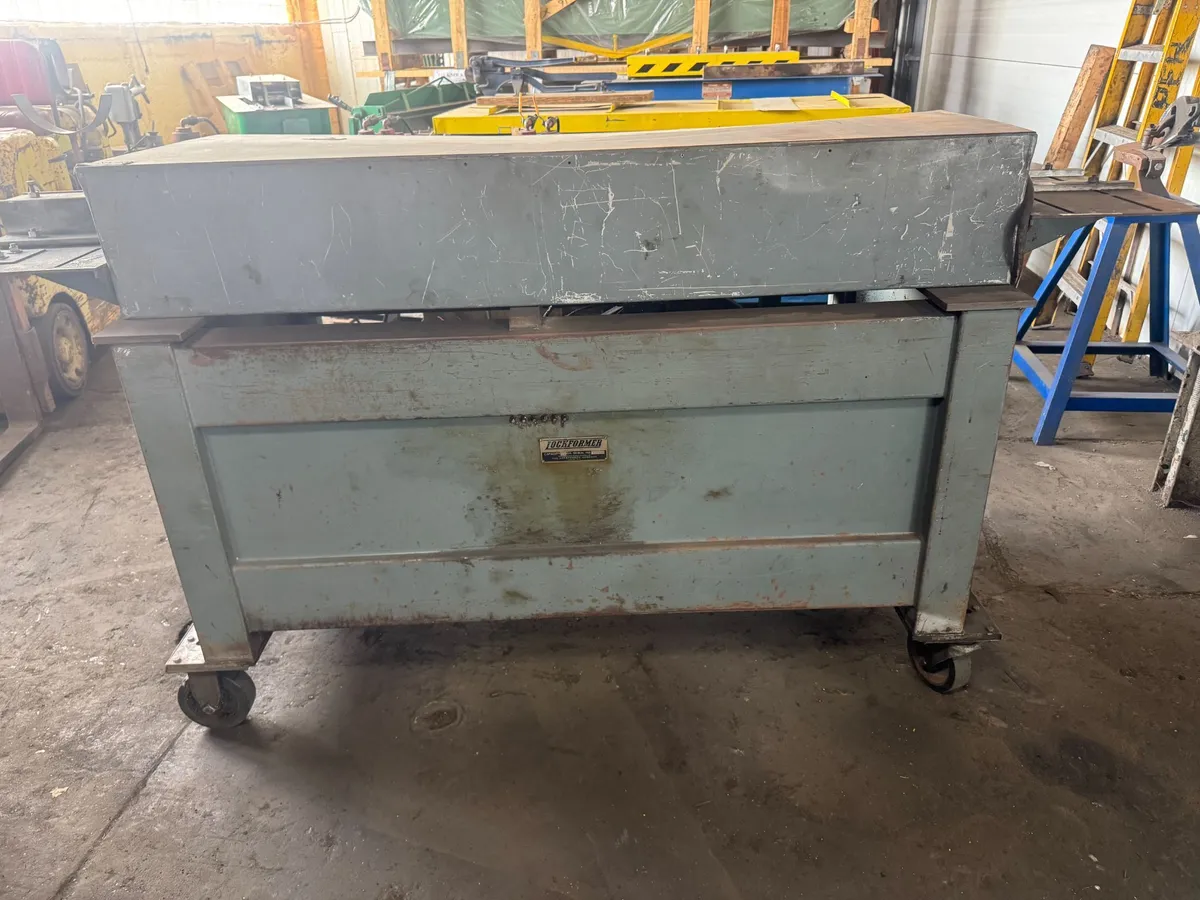

LOCKFORMER 1" STANDING S ROLLFORMER

Description

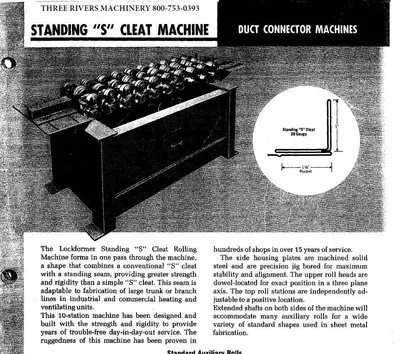

This Lockformer Standing “S” Cleat Roll Former is equipped with 10 Station that will allow you to make 1-inch Standing "S" Cleat in one pass/ It forms a shape that combines a conventional “S” cleat with a standing seam for greater strength and rigidity. This seam is adaptable in fabrication of large trunk or branch lines in industrial and commercial heating and ventilating ducts. Included are double-extended auxiliary shafts for a variety of choices for optional roll form tooling. The design integrity and quality construction of its 10-station configuration will provide years of trouble-free service.
● Capacity: 20-26 gauge
● Depth of Pocket / Size: 1-1/8″ pocket. Uses approximately / 6-1/4″ material stretch out inboard
● Speed: 60 – 70 feet per minute
● Motor / Voltage: 5 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM

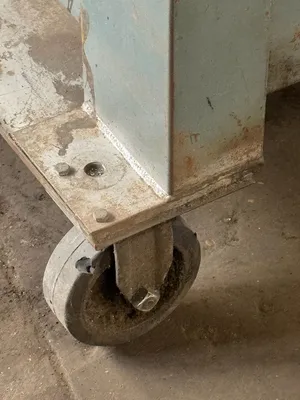

This USED unit is equipped with Heavy Duty Casters that make it super easy to move around the shop for use or storage when not in use. Call us at 800-753-0393 for more details.
