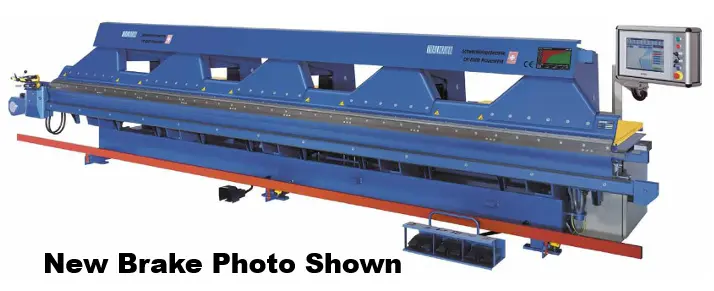

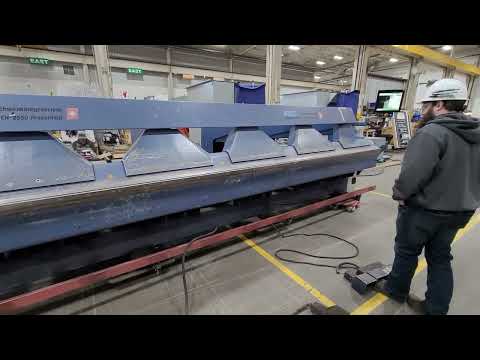

Thalmann Thako 30 21' Hydraulic CNC Folder

Description

Folding Machine
Brand: Thalmann (Swiss)
Type: THAKO 30-6.2M
SN:
06480/P03235
Year: 2013
Model Series:
Build Series:
Thako 30 - 6.2 m - AMS
AB-SE-6-300-6S-PVVHY-AMS
Model Year: 2013

Machine Dimensions:
Length: 7300mm (287.4 in)
Width: 1600mm (63 in)
Height: 1800mm (70.87 in)
Weight: 6000kg (13200 lbs.)

Technical Data:
Working Length: 6200mm (244.094 in)
Projection (Working Depth): 1000mm (39.37 in)
Back Gauge Range: 5mm - 1000mm (.1196in-39.37in)
Working Height: 900mm (35.43in)
Bending Beam Width: 15/27mm (.59in-1.06in)
Max Bending Angle: 143 deg
Noise Level: Max 62 decibels
Speeds:
Bending Beam: 143 deg in 5 sec
Clamp Beam: 100mm / sec
Back Gauge: 200 mm / sec



Power Requirements:
Total Output: 18.5 kW
Voltage: 3 phase 480V +N +E
Frequency: 60Hz
Fused Protection: 60A
Included with purchase:

• Leuze Electronic MLD 500 Light Curtain transmitter and receiver column
(will need two mirror columns P/N UMC-1002-S2)
• Light Curtain Protectors
• Updated new AMS HMI as of September 2024
• MISC spare parts
• Operators Manuals
IMPORTANT: TRAINING & SETUP IS INCLUDED IN PRICE; TRUCKING MUST GO AIR-RIDE CONESTOGA.
