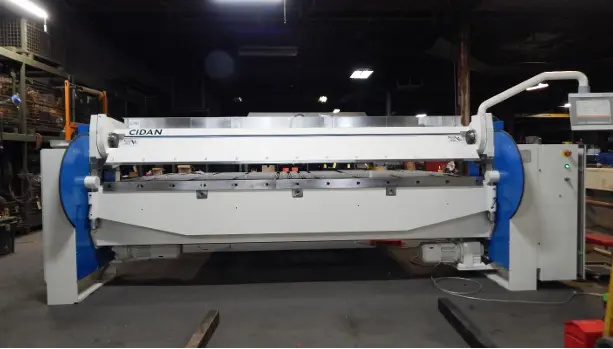

CIDAN 14-GAUGE KOMBI BEAM CNC FOLDER

Description

This K25-30 CNC Folder has been completely rebuilt and includes 61" Backgauge with the Pro-Link CNC Touch Screen Control.
Capacity: Mild Steel: 14 Gauge, Stainless Steel: 18 Gauge, Aluminum: .12" Length: 122"

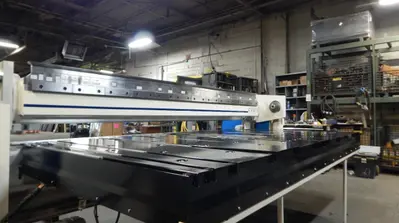

Motorized back gauge with Ball transfers in back gauge table, Squaring arm, Height adjustable back gauge (0-40mm)
Complete set of Box tooling is included and labeled. (bayonet style)
Manual crowning of folding beam rail
Full set of Kombi tooling is included with this folder, sizes shown in millimeters.
segments of 4(300), 2(90), 2(200), 1(350), 1(250), 1(100), 1(150), 1(80), 1(75), 1(70), 1(50), 1(40), 1(35),
Leg Out Left: 60mm
Leg Out Right: 60mm
Includes Double sided folding beam rail 7/10mm with quick change tooling (bayonet style)
The pedal unit has three pedals. The left and middle pedals have two positions. The pedal on the right
has one position. The second position is activated by pressing the pedal harder to overcome a pressure
point (the pedal clicks).
Front foot pedal with extra foot pedal with key switch.
Folder is equipped Moveable Foot Pedal on Rail which allows the operator to move the foot pedal quickly and smoothly along the folding area. Appropriate when folding is done with several folding stations. Especially recommended if the machine is equipped with Multifold. This option is considered a great safety feature when bolted to the floor. When operator engages foot pedal, they are away from the upcoming folding beam.
Control: Control System ProLink with touch screen and graphic programming. The ProLink program is developed for folding machines with multiple design screens.
Weight: Approx. 9,500 Lbs.
Electrics: 230-Volt 3-Phase
Operations - Clamping beam with straight rail 30-degree Lower beam rail
- Double sided folding beam rail 7/10mm with quick change tooling (bayonet style)
- Not for multifold execution, Folding beam rail 20mm with quick change tool (bayonet style)
- Manual crowning of folding beam rail
- Control System ProLink with touch screen and graphic programming
- Ball transfers in back gauge table
- Kombi clamping beam 30 straight rail and 103 mm high box tooling with radius 1mm
- Frequency/servo driven motors for both clamping and folding beams
- Hardened rails and tools
- Movable foot switch on rail
- Extra foot pedal with key switch
