VICON FULL TDF COIL LINE

Description

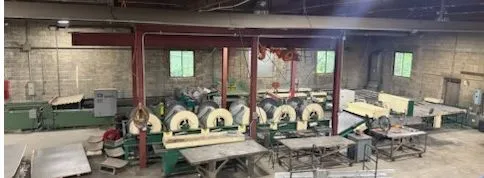

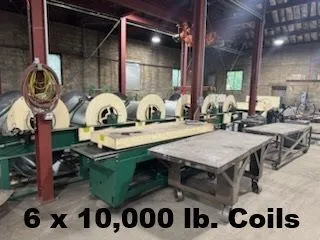

This is a Full Vicon TDF/TDX Coil Line equipped with six (6) position underfed Coil Cradle with the following specifications:
Number of Stations……………………………………………………6
Maximum Coil Weight: 15,000 lbs. per Station
Maximum Coil Width: 60”
Maximum Coil O.D.: 42”
Coil I.D.: 20”
Unit designed with pneumatic “backup” wheels at each coil station for positive feed up of each coil and safe band removal on new coils. Roller tracks guiding system provided to guide the end of the desired coil up to the infeed guide ramp on the duct blanking system. Coils will be spooled on our exclusive Coil Drum Assemblies for the fastest coil loading available (patent pending).
One (1) Vicon Machinery Model V-HCD Hydraulic Coil Drive Unit to provide powered feed up of coil stock. Unit mounted on tracks and positioned manually.
(1) Model V-PR -5 Powered Infeed Guide Ramp Assembly. Unit includes pinch drive rolls to positively feed the end of the desired coil up into the pinch rolls of the coil straightener. Infeed guides adjusted by means of a hand wheel for fast coil change.

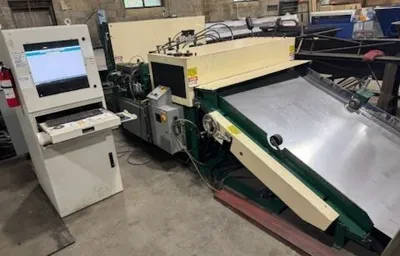

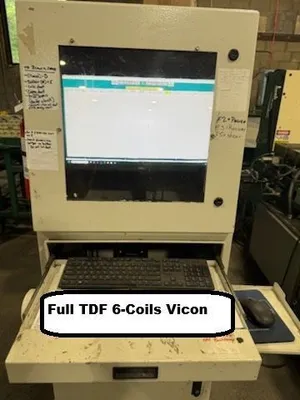

One (1) Vicon Machinery Duct Line Express Model V-60-16-N Automatic Rectangular Duct Blanking System. System includes: Computer controlled Servo driven four (4) roll straightener with 4” diameter heavy duty straightening rolls and pinch feed rolls
• 18-ga beading station to provide beading per SMACNA standards. Includes five (5) beading rings.
• Hydraulic notching unit with two (2) combination “V” dies and two (2) combination “Lock” dies providing both TDX and S & Drive Cleat notching. Located between the straightener and shear. Handwheel adjustment for variations on notch depth and/or coil width. Air cylinders mounted on “V” dies for fast change over from TDX to S & Drive notching.
• Hydraulically actuated shear with 16-gae mild steel capacity. Four sided shear blades.
• Length tolerance of ± 1/32”
One (1) Vicon Model V-510-LS Lockseam System with roll form units to form Pittsburgh Lock and Snap Lock. Maximum capacity of 18 gauge mild steel for Pittsburgh Lock and 20 gauge mild steel for Snap Lock. System includes a toggle switch to engage the button punch to male right-angle seam. Optional material removal locations priced on request.

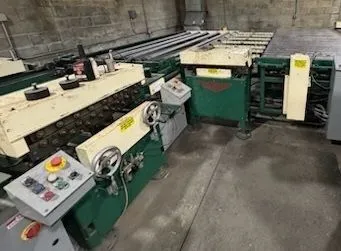

One (1) Vicon Model V-510-90 Transfer and Feed Table. Automatic transfer and feed table to accept blanks from the Lockseam System and feed the cleat edge former.
One (1) Vicon V-CEF-DH Dual Head Cleat Edge Former. Forms Cleat Edge on short leg(s) of duct. Minimum cleat edge leg length is 4”.

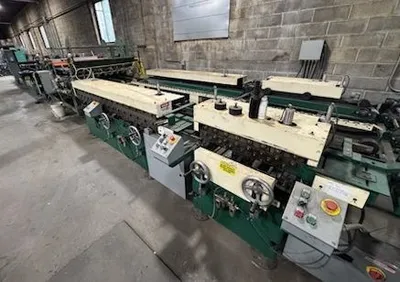

One (1) Vicon Model V-TDX-DH-5 Dual Head TDX Rollformer. TDX roll form unit includes two (2) sets of sixteen (16) rollform station tooling to form the safest flange in the industry on two (2) ends of duct sections. 18 – 26 ga. Capacity.

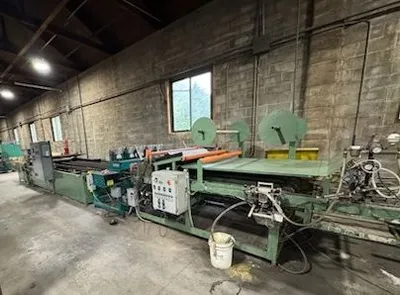

One (1) Ductformer Liner Unit. Liner system will automatically decoil, cut-to-length and apply insulation to the duct with adhesive and fasteners.

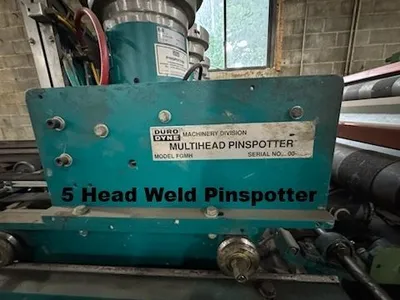

DuroDyne 5-Head Pinspotter, weld pin placement is selected by the computer control system

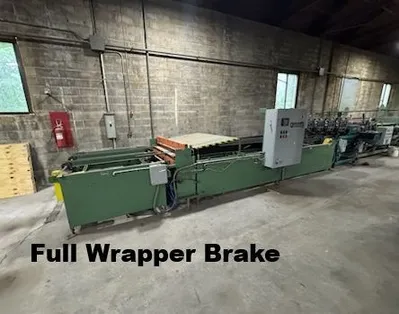

Ductformer Full Wrap Automatic Brake System. System includes infeed table, 5’ hydraulic brake, outfeed conveyor, Front Gauge System controlled by the computer control system. System designed to form L, U, or Full wrap duct.
• 6” x 6” minimum size capacity (unlined)
• Maximum capacity of 120” wrap perimeter

THIS LINE IS READY FOR IMMEDIATE PURCHASE AND MOVEMENT TO NEW LOCATION.
TEARDOWN AND SETUP ESTIMATE: $30,0000
FRIEGHT on 4 FULL FLATBEDS: $6000/Truck, tarped and air-ride trailers.
