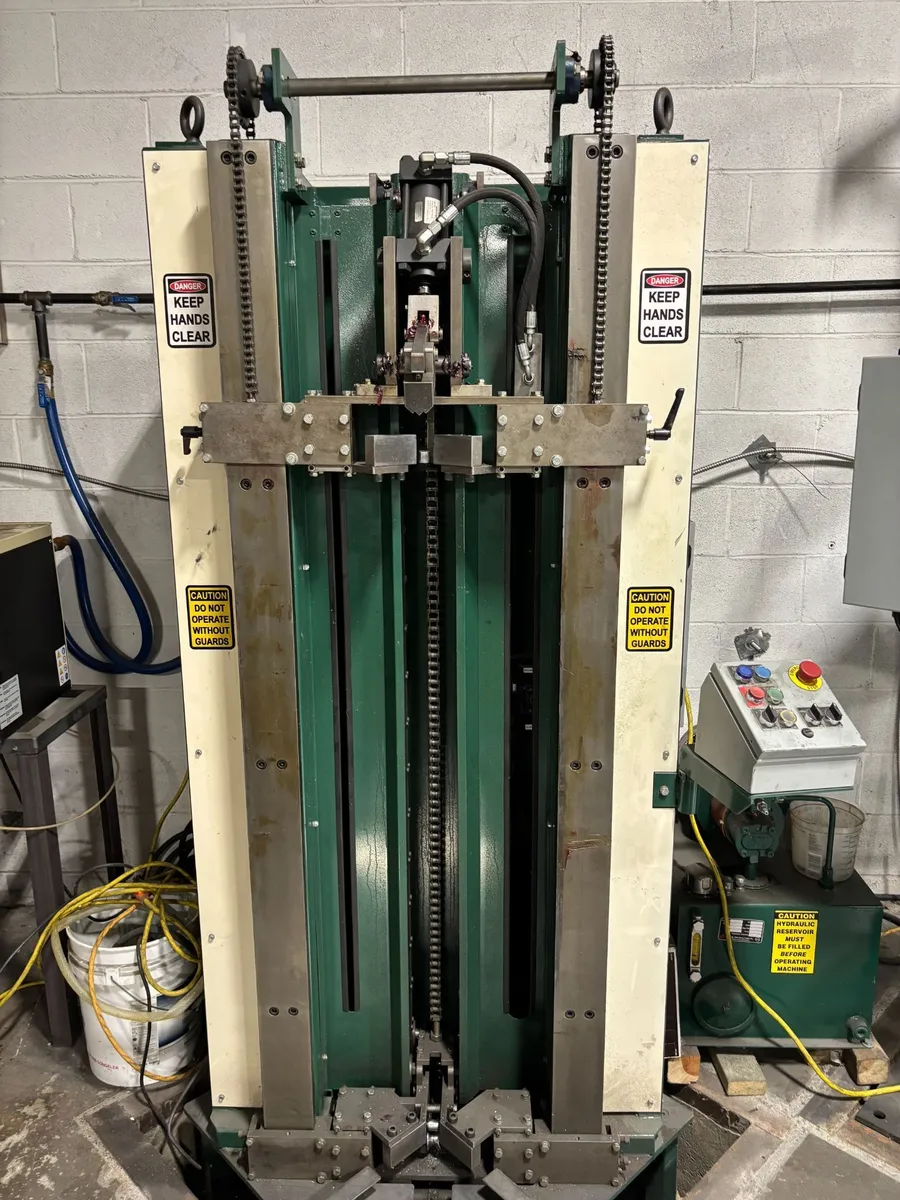

VICON V-PSC-V516 VERTICAL PITTSBURGH SEAM CLOSURE

Description

This lightly used 2023 unit has the following specifications:
Maximum Capacity: 16-gauge mild steel
Minimum Capacity: 26-gauge mild steel
Motor: 3 Horsepower
Voltage: 208/230/460-Volt, 3-Phase, 60 Hertz
Controls: Manual or Auto Push Button
Power: Hydraulic
Duct Connector Styles: TDF, TDC, TDX, S-DC or RAW
Maximum Length Part: 60-inch
Minimum Length Part: 12-inch
- The "V" shaped forming rolls will seam from either side which eliminates turning duct sections over in
order to align the Pittsburgh edge with the forming wheels.
- A large heavy duty roller chain moves the forming rolls with extra heavy-duty bearings and shafts. Unit
will close seams as heavy as 16-gauge mild steel.
- Duct lengths from 12-inches to 60-inches without changing supports.
- No tools required for height adjustments.
- The clamp pads are removable for easy clean-up of duct sealants.
- Forming rolls are resistant to lock up due tp duct sealant buildup.
- The forming roll shafts have grease fittings for re-lu-brication of bearings.
INTERESTED IN THIS WHISPERLOCK? PLEASE CALL - 800-753-0393 We have a cornermatic that can go with it.
