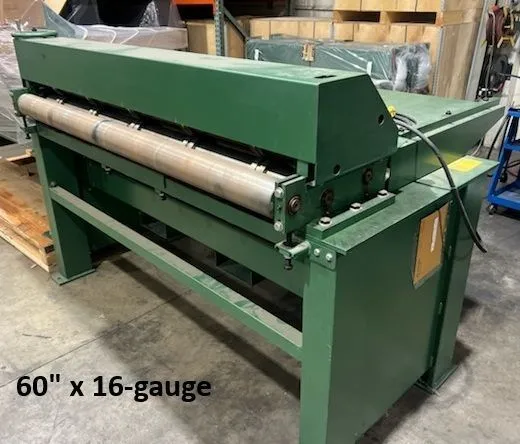

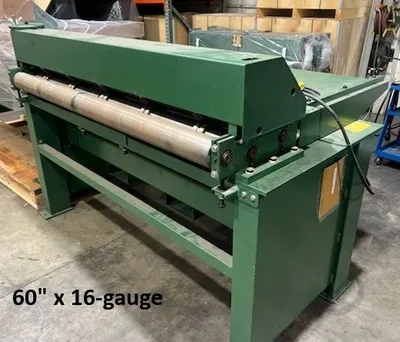

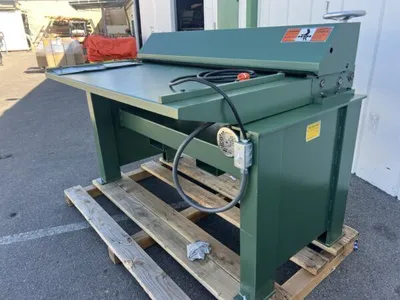

TIN KNOCKER TK-1660 DUCT BEADER

Description

This slightly USED Tin Knocker 1660 Duct Beader comes with a FULL ONE YEAR WARRANTY AND is a heavy-duty, adjustable beader designed to efficiently create SMACNA-approved beads, and eliminate the need to cross-break duct work.

Features of the 1660 Duct Beader include:
• 5 sets of bead tooling that can be positioned anywhere across the 60” working length of the machine for custom beading
• Tooling is held in place with set-screws, and can easily be swapped or replaced without replacing the cross-shaft
• Adjustable bead depth, up to 3/16” deep
• Powered exit support roll to eliminate material hang-up
• Large entrance table to support and orient the material entering the bead roll

Specifications:
Material Capacity: 16ga
Maximum Material Width: 60"
Maximum Bead Depth: 3/16"
Tooling: 5 sets

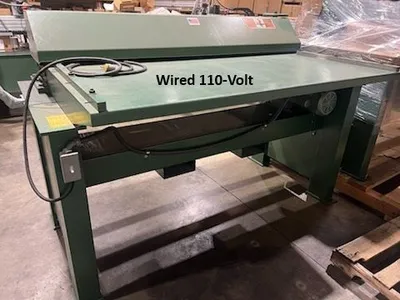

Motor: 1 HP, 115V, Single Phase, 60 Hz Standard (230/1/50 available)
Dimensions: 80"L x 43"W x 34"H
Weight: 1750 lbs.
