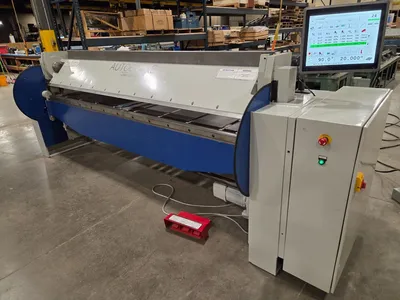

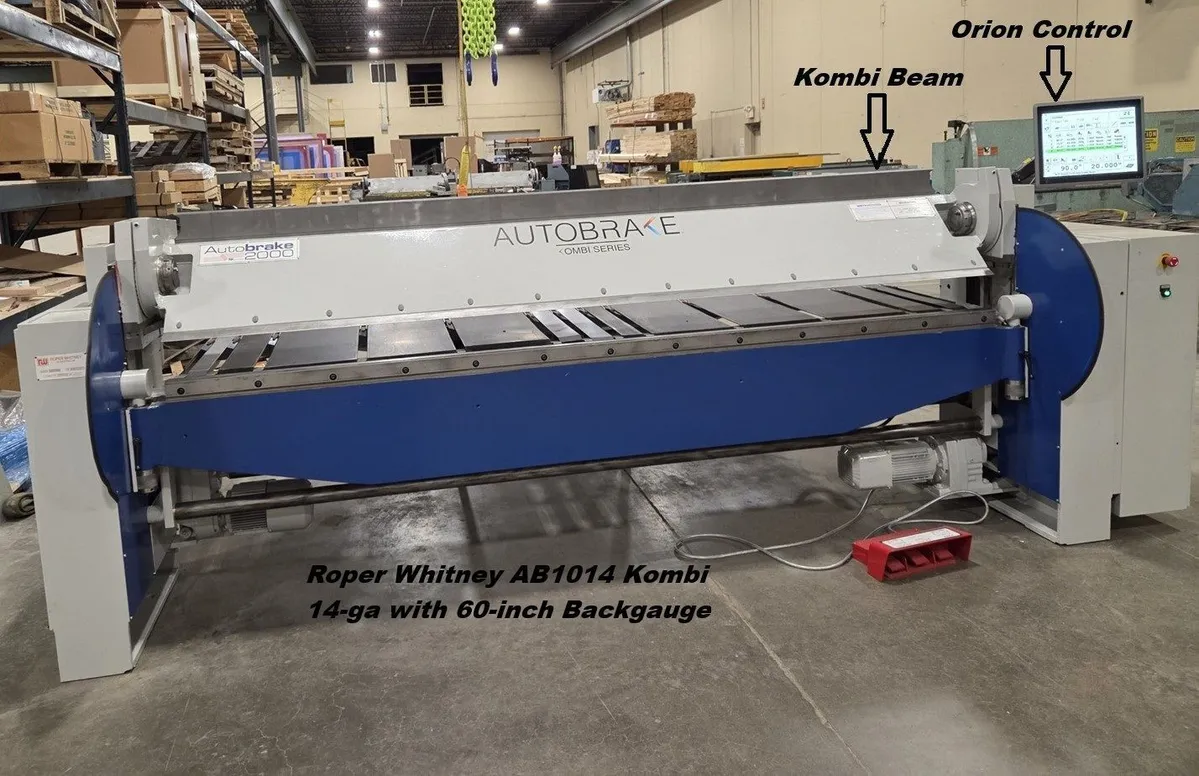

ROPER WHITNEY 1014K KOMBI CNC FOLDER

Description

The twin to this Model AB1014K will have a new 2026 ORION Controller with a one year warranty and then the brake itself will have a 3 month warranty on all parts. Setup and training can be arranged at an additional cost.
Bending Capacity: (Mild Steel) 14ga / 2,0mm
Bending Capacity: (Stainless) 16ga / 1,5mm
Bending Length: 122 in / 3100mm
Back gauge Depth: 60 in / 1015 mm
Clamping Beam Opening Height: 7.3 in / 185mm
Clamping Beam Straight Bar Tooling: 30 Degrees
Folding Beam Adjustment: 2 in / 50mm
Crowning of the Folding Beam: 3-Point 0”-0.030” Adjustment
Working Height: 34 in / 864mm
Machine Length: 180 in / 4572mm
Machine Width: 96 in / 203mm
Machine Height: 84 in / 2134mm
Machine Weight: 9,132 lbs.
Shipping Weight: 9,612 lbs.
Back Gauge Servo Motor: ¾ HP
Clamping Beam Motor: 2 HP
Bending Beam Motor: 2 HP
Clamping Beam Speed: 2.5” per second
Folding Beam Speed: 70 deg per second
Back gauge Speed (0.375” to 61”): 2.5 seconds
Electrical- Voltage required 230/3/60 – Direct wiring only
Maximum current draw 7 amps
Service required 15 amps
Wire gauge required for incoming power 14 gauge

This brake is available to ship within 4-5 weeks, please advise at 412-921-2800, thank you!
