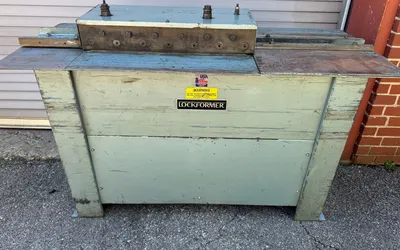

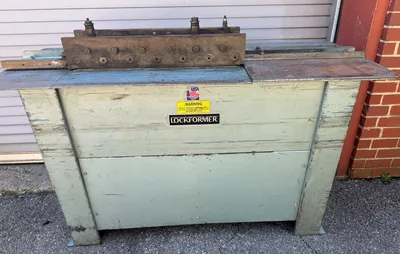

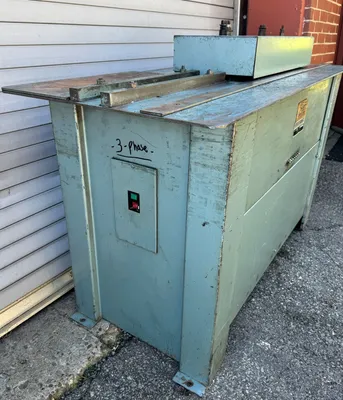

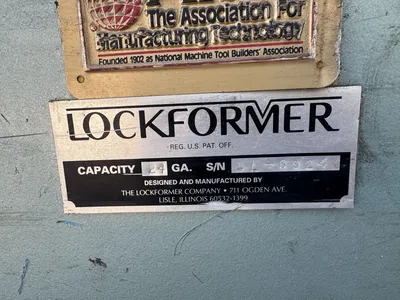

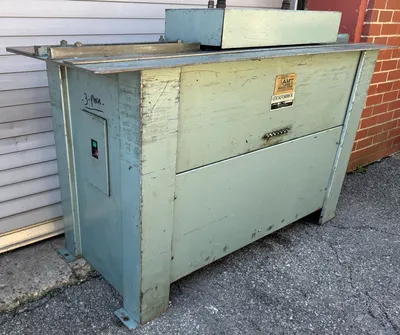

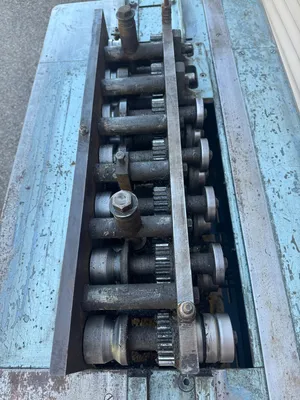

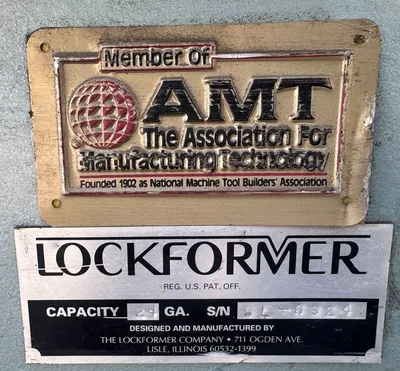

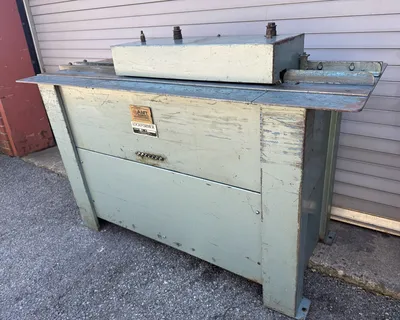

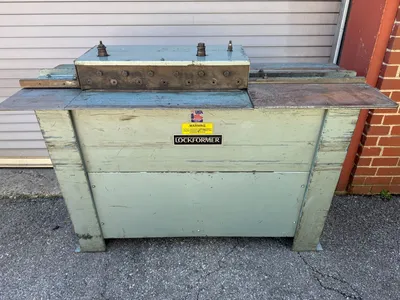

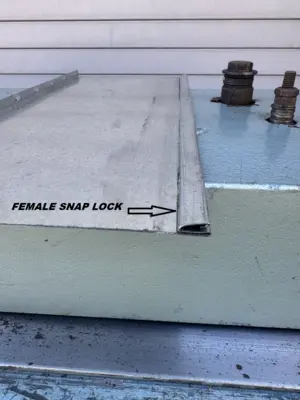

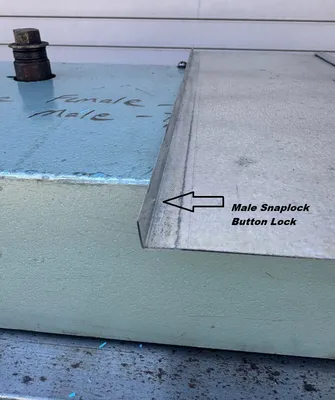

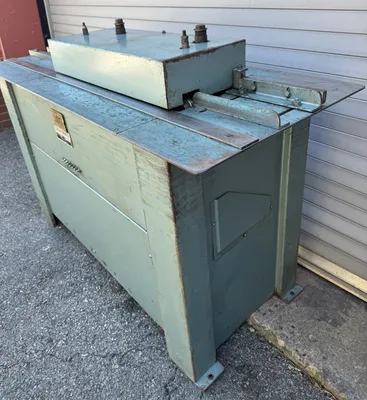

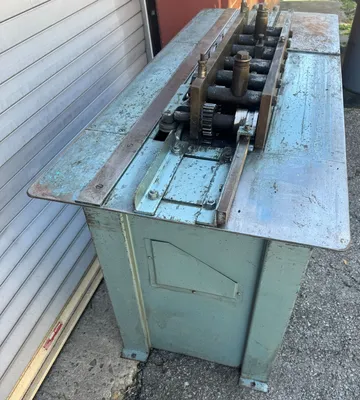

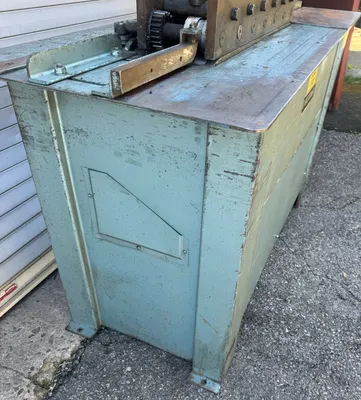

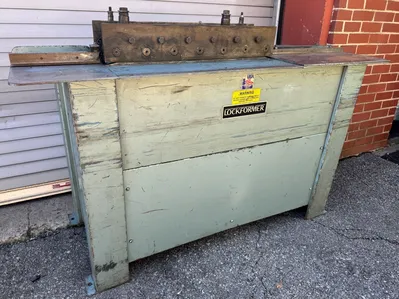

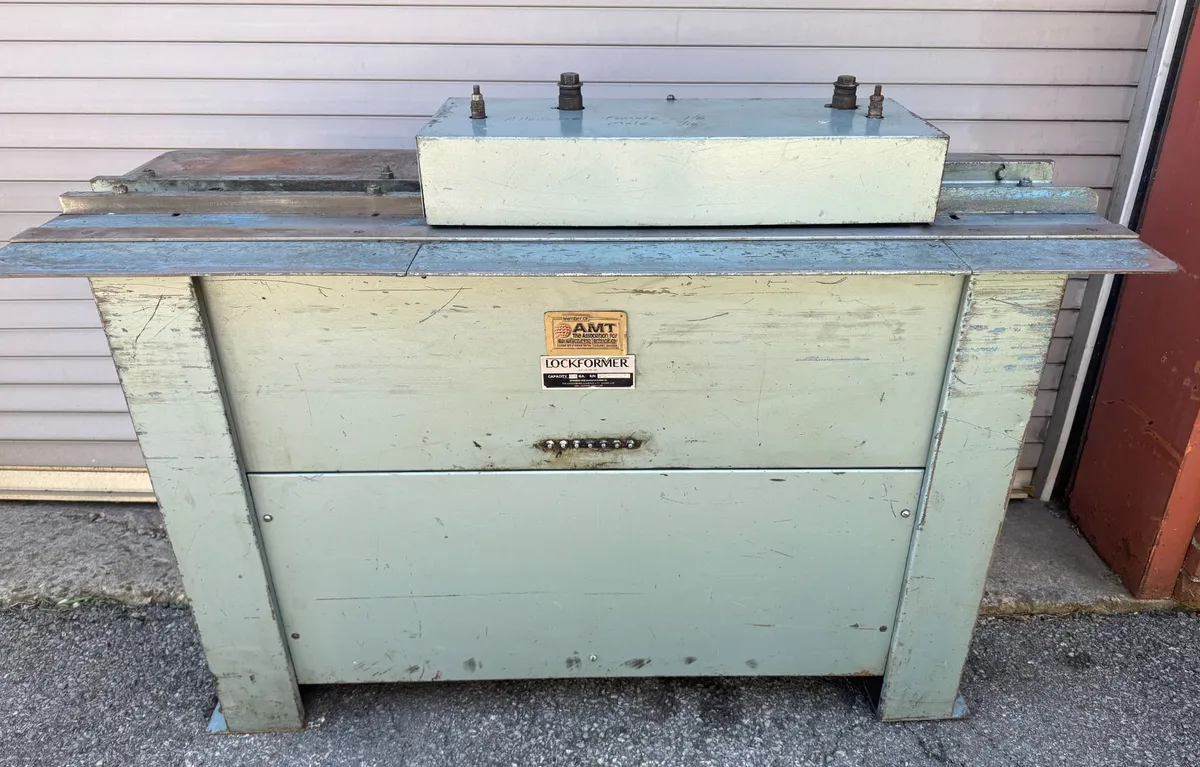

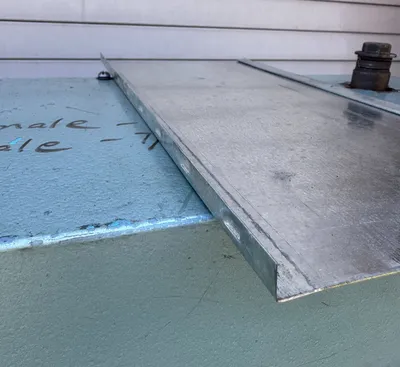

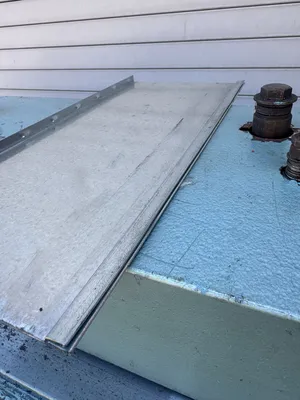

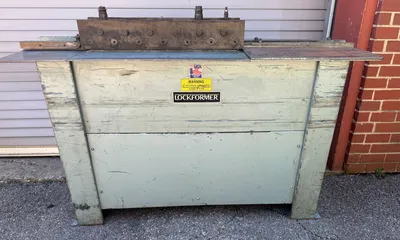

This 24-gauge Button Punch Snap Lock Machine was built in USA in Lisle, IL., forms a two-piece seam that greatly simplifies ductwork assembly. The male seam is a button; the female seam is a lock and the two snap together for a nice flush corner. This machine forms 24-to-30-gauge sheet metal into female locks on the inboard and button punched right angle flanges on outboard rolls at speeds of 60-65 fpm. Not only will you be able to assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport too. This unit is "THE OLD SCHOOL STANDARD" with Lockformer's quality construction, it is equipped with a Baldor motor; high precision needle-type bearings; heavy 3/4" chassis plate; case-hardened and ground roll shafts; and arc-welded steel stands protected with Lockformer's top-quality primer and paint finish. Grease fittings are easily accessible from a main transmission bearing lubrication panel. The Lockformer 24-gauge snaplock specifications include: Capacity: 24 gauge and lighter.
Working Range: 24 through 28 gauge.
Flange Height: Approximately 7/16 inches.
Forming Speed: Approximately 18 feet per minute.

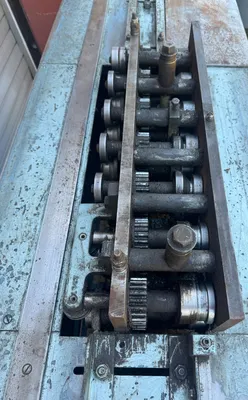

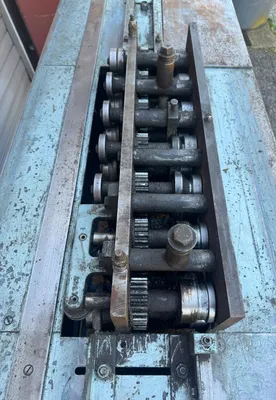

Forming stations: 7
Capacity: 24-30 gauge
Forming speed: 60-65 fpm

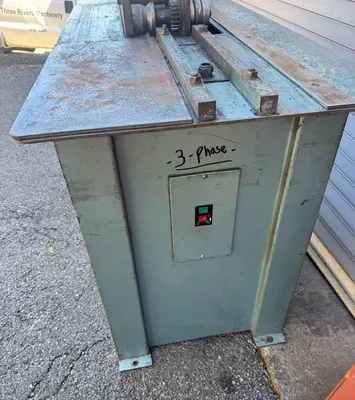

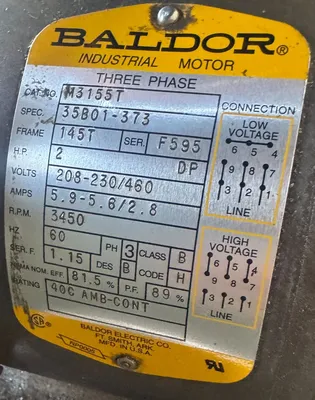

Motor: 2 HP, 3600 rpm, 230/460 Volt, 3-Phase
Horizontal roll: 4"
Vertical roll centers: 2-1/2"
Shaft diameter: 1"
Dimensions: 58-1/2" x 24" x 41" (I x w x h)
Ship weight: Approx. 550 Ibs.
LET US KNOW WHERE YOU NEED THIS MACHINE TO BE SHIPPED, WE CAN SOMETIMES SHIP MACHINES AT NO ADDITIONAL COST TO YOU. 800-753-0393 to discuss this machine.
These specifications highlight the capabilities of the Lockformer machine for forming sheet metal into snaplock flanges.
