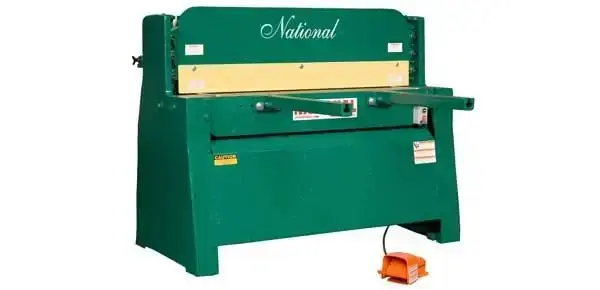

National 6 foot Hydraulic Shear, 1/4 inch Mdl NH7225

Description

This 6 foot National shear offers steel cutter heads and tables. Standard with hydraulic rubber inserted hold downs, quick adjusting back gauge for direct reading with a positive lock, front arm extensions, table gauges, heavy duty foot switch and well lighted work area. You receive a full three year warranty. The hydraulic unit conforms to J.I.C. standards featuring simplicity of design. The National hydraulic system is simple to maintain with standard replacement parts such as valves, cylinders, hoses and oil. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator.
National Shears have high carbon, high chromium blades with four cutting edges of premium quality tool steel and will withstand nicking and wear better than relieved blades. National blades are secured to the shear with tempered flat head screws through countersunk holes in blades. Complete cuts of full width pieces are 2 inches longer than specified cutting length. The high strength cast iron constructed side frames are made of the highest tensile strength metal needed for long life and accurate shearing. Underdrive construction with downward cylinders and major hydraulics under the bed gives the shear a low profile. These shears also include a full 3 year warranty and 5 year warranty against breakage of the cutter heads and tables.

Warranty:

3 year manufacturer's warranty

Part #: NH7225
Ships From: Factory shipped
Availability: Usually ships within 4-6 weeks

•Type: hydraulic
•Mild Steel Capacity: 1/4 inch (6.35mm)
•Stainless Capacity: 1/8 inch (3.1mm)
•Cutting Length (inches): 72
•Cutting Width (inches): 72
•Weight (pounds): 6000
•Dimensions (LxWxH): 84 x 98 x 54

Includes:

Back gauge
Front extension arms
Table gauges
