LOCKFORMER 20 GAUGE SNAPLOCK BUTTON LOCK ROLLFORMER

Description

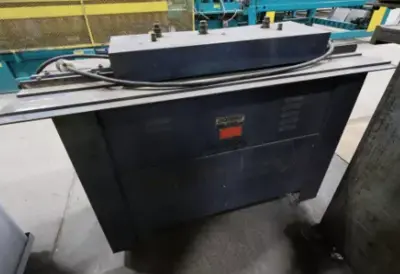

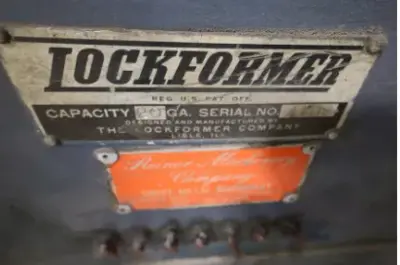

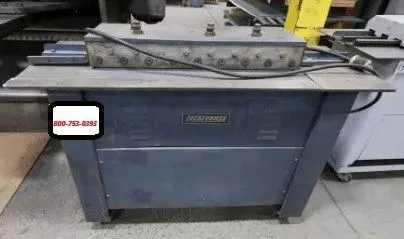

This is a Lockformer 20ga. Snap Lock S/N: 4109 equipped with good casters for easy movement within the shop. These Button Punch Snap Lock Machines form a two-piece seam for ductwork assembly. The male seam is a button; the female seam is a lock and the two snap together for a flush corner. This machine can form 20-to-26-gauge sheet metal into female locks on the inboard and button punched right angle flanges on outboard rolls at speeds of 60-65 fpm and are available in seven and nine forming station machines. These locks assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport on your delivery truck.
Capacity: 20–26 gauge
Depth Of Pocket/Size: Uses approximately 1 3/4" material
Others: Special speeds available upon request
Speed: 60 - 65 feet per minute
Motor/Voltage: 3 H. P. 230/460 volts, 60 cycle, 3phase, A. C. 3,600 RPM.
Dimensions: Length - 58.5", Width - 24", Height - 41", Passline - 34"
Weight: 550 lbs.

Available from stock, FOB Braddock, PA 15104 800-753-0393
