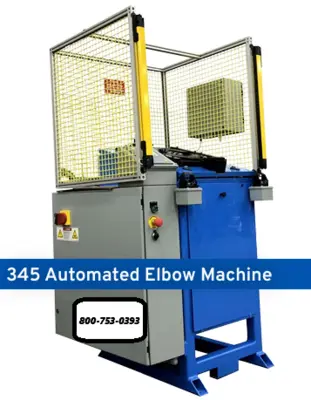

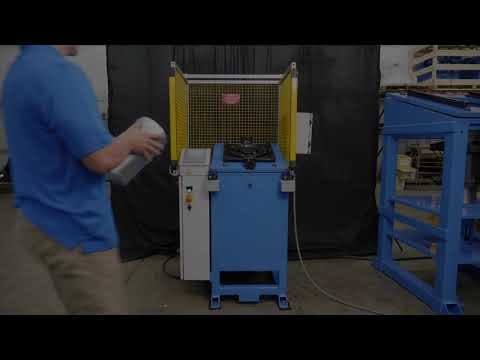

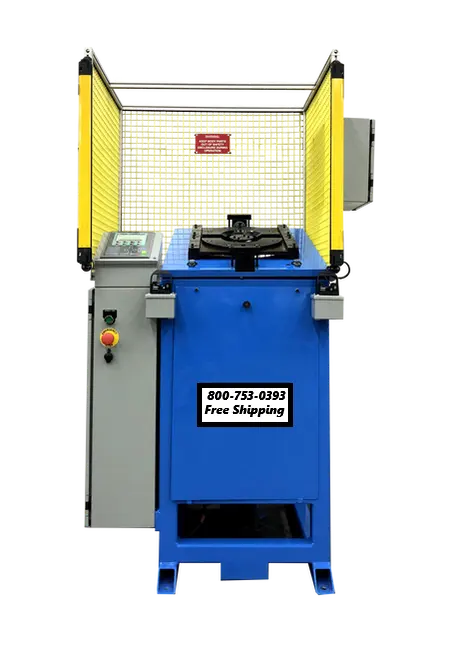

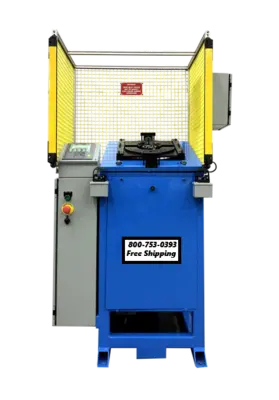

CT-SM-916 Elbow Maker

Description

The 916 Standard Head Adjustable Elbow Machine makes an elbow every 24-seconds.
Cycle Time: 24 sec
External Oiler INCLUDED
Proportional Valve with Ramping Control
Safety Light Curtains
Hydraulic power Unit
Verify Supply Voltage on PO
Recommended Material:
9-10-12-14-16 inch - 0.012-0.020 Gal
Fittings are 90Deg +/- 1Deg
Delivery: 45-Weeks
THE AUTOMATIC ELBOW MACHINE IS DESIGNED TO PRODUCE HIGH QUALITY ø
3”, 4“, 5” 90º ELBOWS (+/-1º)
• Increase productivity
• High quality forming and cutting means less scrap
• Full safety features assure safety of operator and passerby
STANDARD FEATURES
+ Pre-programmed PLC
+ Proportional Valve with amplifier card for accurate cutting height
+ Proportional Valve with Ramping for control of the Gear Head
+ Integrated Lubrication System powered by air
+ Hardened and Heat-Treated Tooling
+ Changing Tooling Size takes only 20 minutes!
+ Electrical Supply: 230/460 VAC 3ø
+ Safety: Built to NFPA, ANSI, & OSHA safety standards.
Light guards included on all CTM machines
+ Under 18 second cycles! *
OPERATOR
+ All functions on easy-to-use interface
WARRANTY
+ All machines include a full 1-year warranty on all materials and workmanship
RECOMMENDED MATERIAL: + 0.012”-0.024” Galvanized

THREE RIVERS MACHINERY OFFERS FREE FREIGHT ON ALL NEW ELBOW MACHINES
