BRAVO AUTO GL2T-PLUS GORELOCK

Description

Power, Precision, and Productivity — All in One Machine. One of the huge problem with all the spiral machines is finding a "good" operator. This Gorelocker will help even an experienced worker get out more fittings per hour. Let modern technology help your business rep the benefits of making more fittings every shift. The GL2T-Plus is equipped with a programmable control system for precise seam forming, this machine combines two stations in one — one for flanging and one for closing. Always ready to work, it requires no tooling changes and delivers fast, effortless production of elbows and reducers. Achieve professional results at a fraction of the cost of other brands.
Make your own round fittings: elbows, reducers…. and cost effectively!
Two stations in a single machine: one for edging and one for closing. The machine is always ready to work, with no need to change tools. Produce elbows and reducers quickly, easily, and economically. At a much lower price than the popular "blue" brands.
A perfect companion for Spiro Duct fabrication — efficient, reliable, and built for performance. A great, complementary machine to our Spiral Duct Forming Machine.
Specifications:

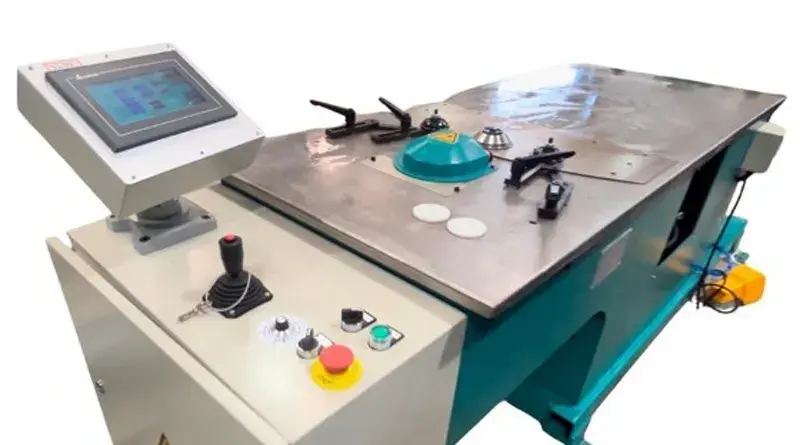

DELTA PLC and Touchscreen for forming sequence programming.
Diameter Range: 5” to 50”
Material Thickness:
4 – 1.5 mm (26 – 16 Ga) galvanized
4 – 1.0 mm (26 – 20 Ga) Stainless Steel
Forming speed
Adjustable up to 120 m/min. (394 fpm)
Production time:
90 sec. (bend ø 200 mm, 90° / 4 segments)
Electrics: 4KW, 220volts/3phase/60Hz
Footprint: 120 x 36 inches Weight: 2,300 lbs.
MACHINE IS IN STOCK, ADD $4,000 for onsite training and setup. Split freight cost on the stock machine.
