MAPLEWOOD PIPE ROLLER MACHINE

Description

This is a Maplewood Stove Pipe machine in very nice condition. They will sharply reduce the cost of manufacturing pipe and duct sections.

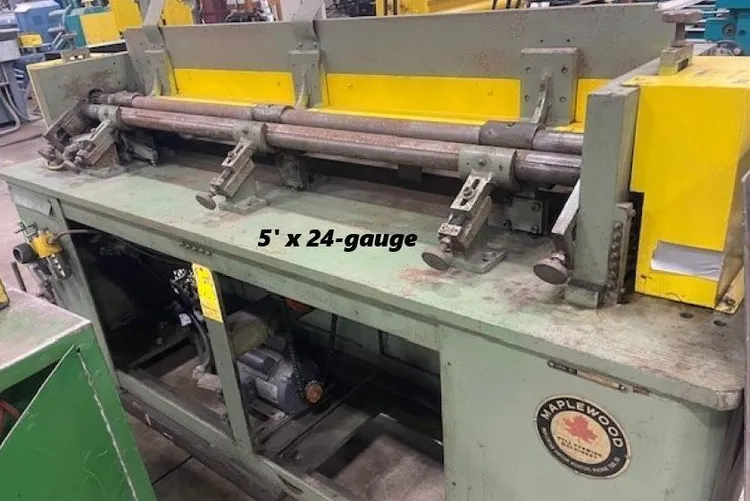

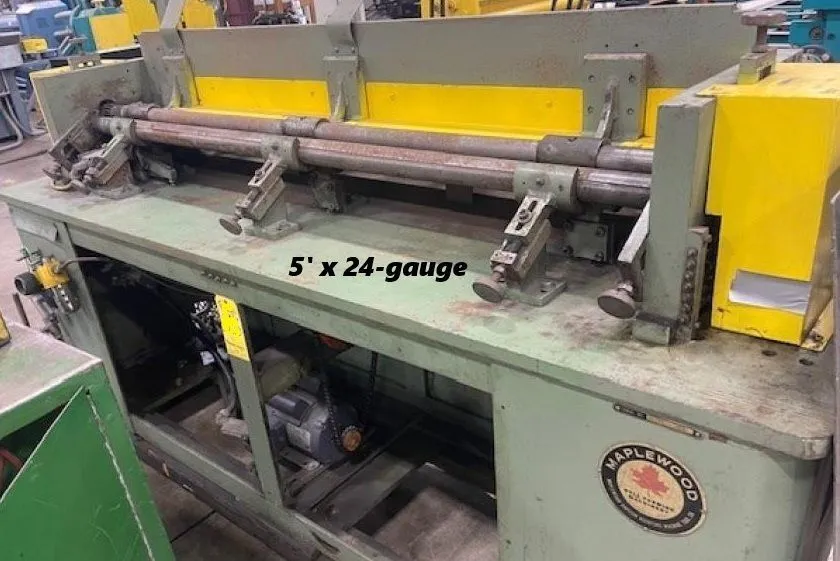

All rolls are powered ... operating at 95 FPM, they can roll, crimp and bead 24-gauge and lighter mild steel IN ONE PASS. Two models are available with capabil­ities of 5-foot or 10-foot pipe. We have the 5-foot model seen in photo attached and it is in stock. Manual feed tables are available when pipe rolls are not used with a feed table.
Capacity, Mild Steel: 24 gauge mild steel
The R-5 rolls up to 5'
Pipe Diameter: 3" to 14"
Pipe Diameters from 3-inch thru 14-inches
Forming Speed is 95 Feet Per Minute
Rolls Diameters
Top: 1-3/4"
Bottom: 2-inch
Electrical: 2 HP Motor; 1800 RPM, 220/440/Volt, 3-Phase, 60-Hertz
Drive: Chain Drive
Air Supply: 3/8" Line needed @ 90 P.S.I.
Includes: Air Lubricator, Filter and Pressure Gauge
Floor Space Required: 90" L x 24" W
Additional helpful information includes the Bead and Crimp Rolls.
Manual Entrance and Top Roll Adjustment.
