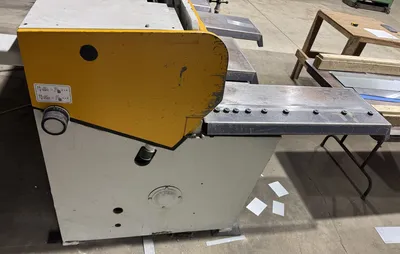

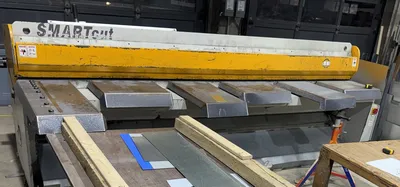

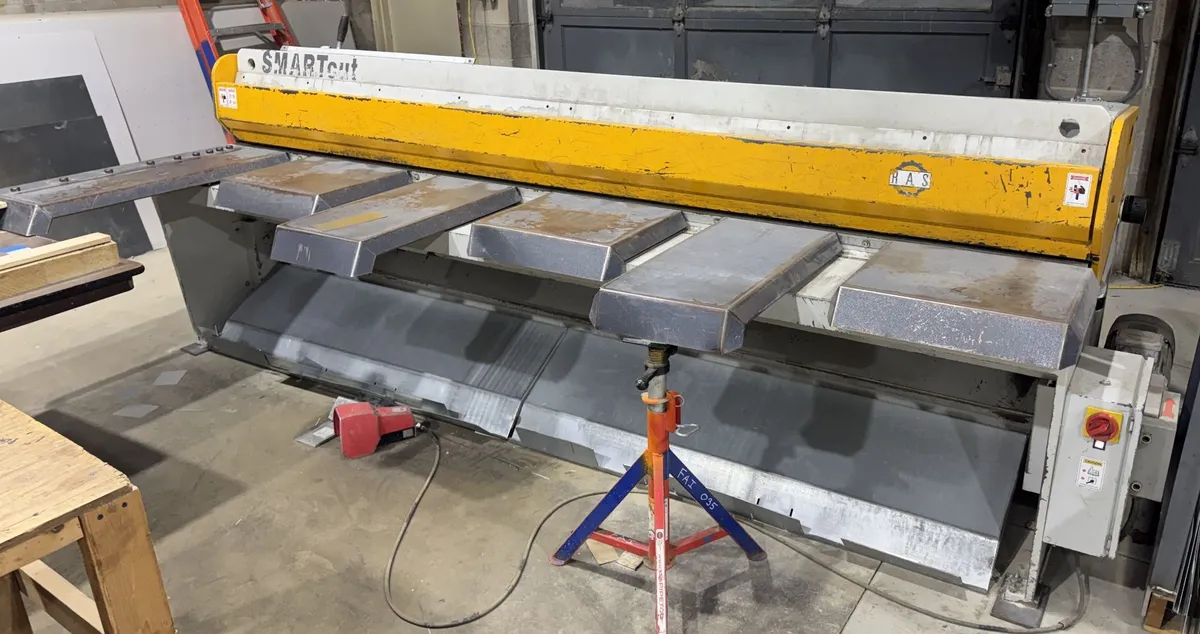

RAS SMARTCUT 52.30 MECHANICAL POWER SHEAR

Description

This is a USED RAS power Shear is available but only after we sharpen the blades, replace the neoprene hold-downs and a few other small parts. This shear is available mid-April 2026, see SPECIFICATIONS:

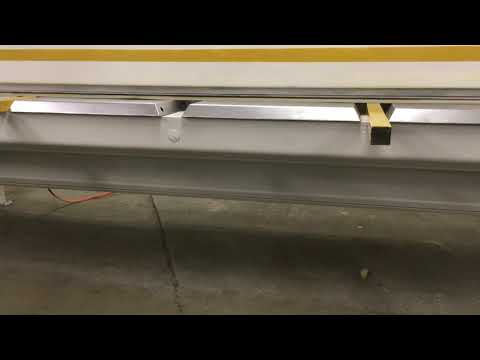

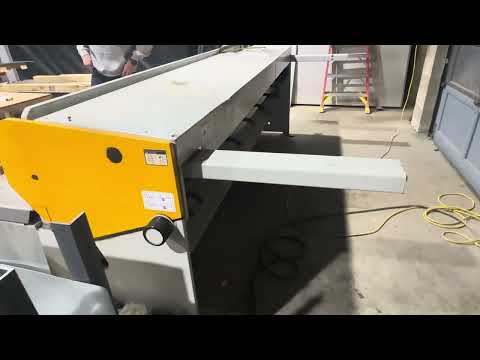

Year: 2013 SEE SECOND VIDEO BELOW
Technical Data SMARTcut (inch) 52.30
Cutting length 122-inches
Material thickness max (58,000 PSI) 14 ga
Backgauge 0.2″-29.5″
Sheet support
Blade clearance adjustment
Strokes/min 36
Blade angle 0.9°
Swing beam
Machine dimensions (incl. table extension) 148″ x 91
Equipped With: Sheet support, Part sorting, Blade clearance adjustment
Power Squaring Swing Beam Shear
Front Material Return
Approx. Weight: 5,300 LBS
Dimensions: 145" X 66" X 55"
SHEET SUPPORTS ETC,
The RAS 52.30 is a power squaring shear known for
cutting up to 14 gauge (approx. 2mm) mild steel, with a maximum shearing length of 10 feet (3100mm), featuring automated back gauge for precise cuts up to about 29.5 inches, and typically operating at around 36 strokes per minute, designed for efficient, automated sheet metal processing.
Key Specifications:
Material Thickness: Up to 14 gauge (approx. 2.0 mm / 0.08").
Shearing Length: Max 10 feet (3100 mm).
Back Gauge: Up to 29.53 inches (750 mm).
Speed: Around 36 strokes per minute.
Automation: Medium level of automation for positioning.
