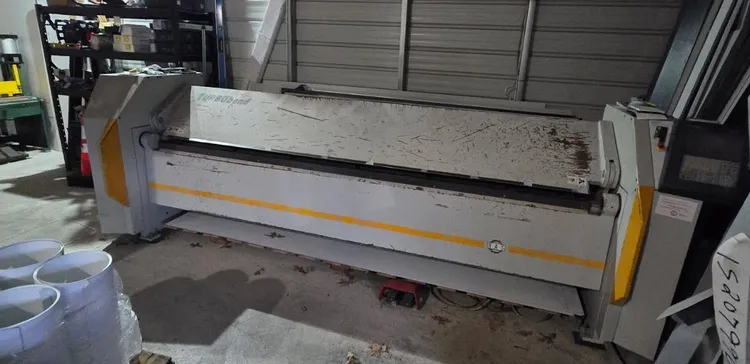

RAS TURBOBEND CNC FOLDER MODEL 61.31

Description

This is the reliable and accurate RAS TURBOBEND MODEL 61.31 sheet metal folding machine that is designed for precision forming applications. All RAS TurboBend 61.31's combines durable German engineering with the intuitive controller, offering precise and repeatable bends for a wide range of materials and thicknesses. Ideal for fabrication shops, HVAC production, and light industrial manufacturing.

Technical Specifications on this RAS
Model: TurboBend 61.31
Year: 2012
Type: CNC Folding Machine
Overall Bending Length: 124″
Bending Capacity: 0.059″ (approx. 16-gauge mild steel)
Back Gauge Depth: 0.3″ – 39.4″ (programmable range)

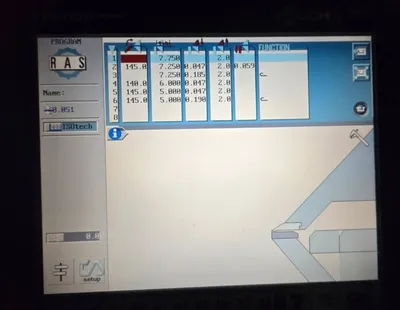

Control System: RAS-System 4000
Equipped With System 4000 CNC control for programmable bend sequences
Adjustable back gauge system for precise positioning
Rigid clamping and folding beams for consistent results
Foot pedal operation for operator convenience and safety
The condition of this brake is EXCELLENT. Our customer bought it REBUILT from RAS less than two years ago, but unfortunately has had to change the process of how they're doing business.
Machine is in Perfect working condition and fully functional and completely ready for use in a precision sheet metal folding shop or a high-volume roofing shop.
CAPACITY:
Maximum Bending Capacity: 16 Ga.
Maximum Forming Length: 122"
Upper Beam Height: 4.725"
Back Gauge Range: 40"
Max Folding Beam Adjustment: .2"
Drive Motor: 4 HP
Folding Beam Speed: 80 / Sec
Upper Beam Speed: 2.6" / Sec
Equipped With: System 6000 CNC-Control
Electric Foot Switch
