ENGLERT METAL MAN MULTI-PANEL ROOFING MACHINE

Description

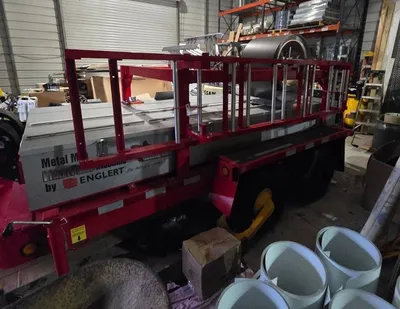

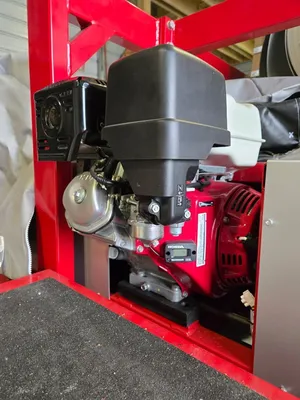

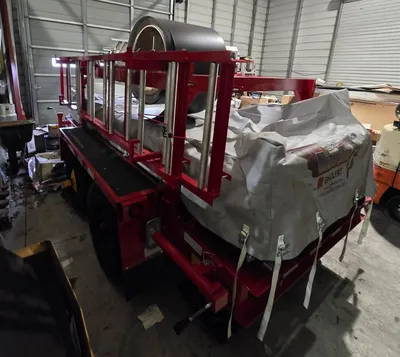

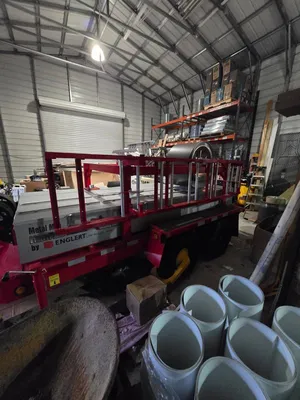

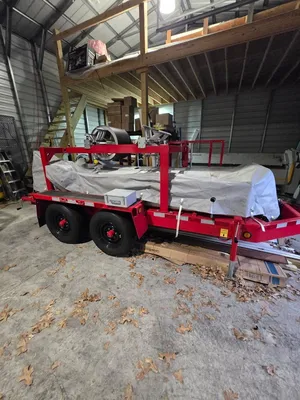

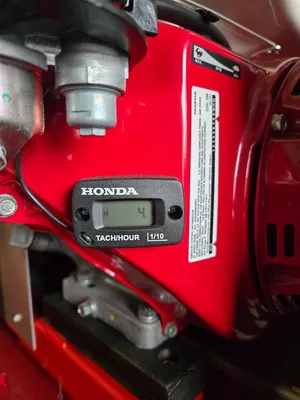

This rollformer with trailer has FOUR (4) HOURS on it!!! This is the actual number of hours in use, see photos of the Honda Motor. Comes with the custom cover, 2 Arbors and two (2) Roll Out Tables with the trailer. Be ready for the spring season! We have a folder and a shear that can ship with the trailer.
• Chrome plated forming roller systems.
• Infinitely variable full cycle shear.
•Clip relief and/or stiffening ribs can be added to any panel profile. Striated paneling rollers also available
• Separate drive and form rollers, eliminates most oil canning.
• Hydraulic drive system and shear are electrically activated.
• Optional electronic computer control (INCLUDED) and electric hot melt sealant.
Pump systems are available.
• Forming roller systems can be changed out in about 1 hour.

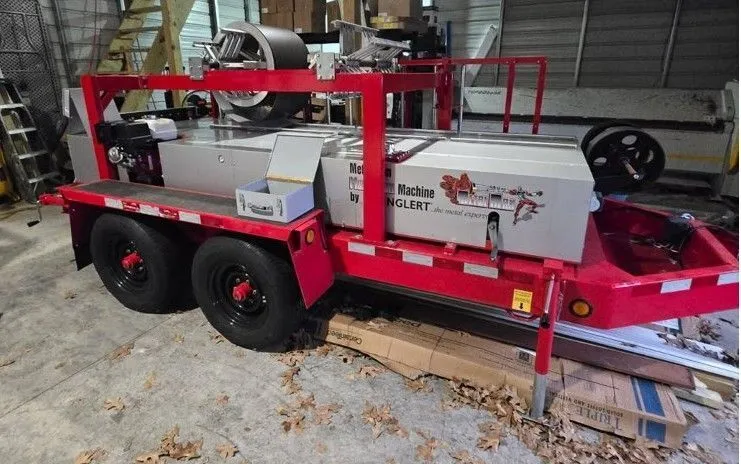

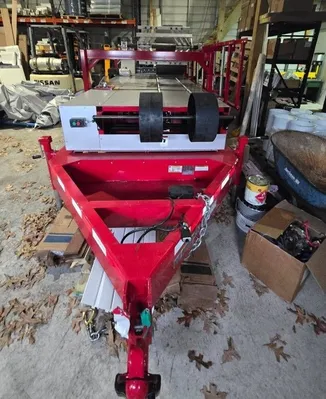

• 12,000 lb. capacity tandem axle trailer. INCLUDED Has dual reel overhead decoiler standard.
No remote decoiler will be furnished.
• 50 ft. of variable height run out stands.
• Electric seamer for use with A1300/A1301 or
S2400/S2500 panels.

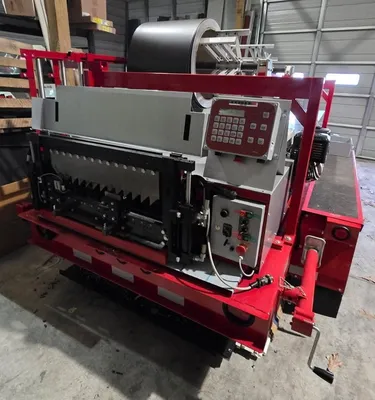

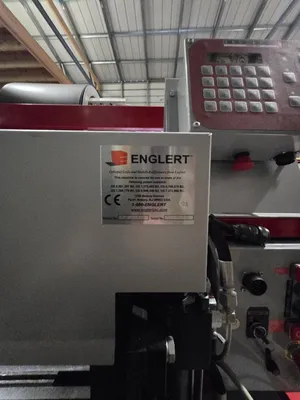

• Dual register electronic control-panel length and quantity.
• Hot melt system sealant.
• Hand seamer: 2500/2400 - 1300/1301.
• 7-1/2 in. HP electric motor, 220V 1PH. 60 Hz.
• Striation Rollers
• Pencil Rib Rollers (5/8” and 3/8” wide)
Panformer:
Length – 12 ft. (3.657m)
Width – 4 ft. 5 in. (1.364m) plus engine projection
Height – 1 ft. 3 in. (.381m) plus engine projection
Panformer on Trailer:
Length – 17 ft. 2 in. (5.232m)
Width – 7 ft. 3 in. (2.21m)
Height – 6 ft. 3 in. (1.905m) with reel
Weight – 3990 lbs. (1810 kg)
Power: 13 HP electric start gas engine
Drive: 16 hydraulically powered chain driven cast polyurethane drive rollers.

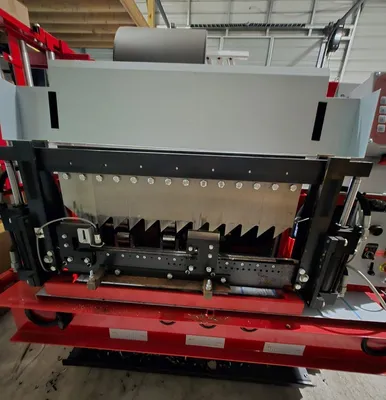

Shear: Electrically activated, hydraulically powered, infinitely adjustable, full cycle.
Speed: Approximately 90 ft. (27.43m) / minute. Speed should be decreased 25-50% when using sealant pump depending on temperature.
Materials Formed: Steel – 30 gauge to 22 gauge (painted, galvanized, aluminized)
Aluminum – .019 in. (.48mm) to .040 in. (1.02mm)
Copper – 16 oz. to 20 oz.
