Rotodie CB30 Air Cleatbender

Description

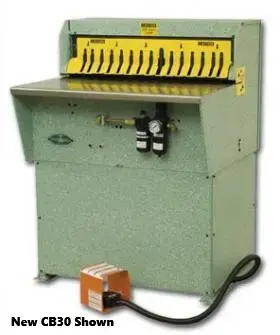

Roto-Die ’s CB-30 Cleat Bender is an economical, pneumatic bender for bending cleat on duct and fitting or similar applications that utilize a cleat type connection, up to 20-gauge sheet metal thickness. Unlike the competition, the CB-30 cleat bender requires no electricity, only a compressed air line connection. The stainless-steel top resists rust to insure years or service. Unlike competitors' machines, the CB-30 has 15 forming fingers, which accommodates more discrete combinations of duct or fitting sizes. Also, with the open-ended design, the operator can notch the sheet to make cleats of more than 30” in length by bending in multiple steps
Model - CB-30
Capacity - 20 gauge and lighter
Type - Open end cleat bender
Bend Length - 3” - 29-1/2”
Bend Width - 7⁄16” through 1⁄2” Present
Table Height - 36”
Strokes Per Minute- 0-50
Air Consumption: < 0.5 cu ft/cycle at 100 P.S.I
Weight - 500 lbs.
Dimensions - 40“L x 47” W x 34” H

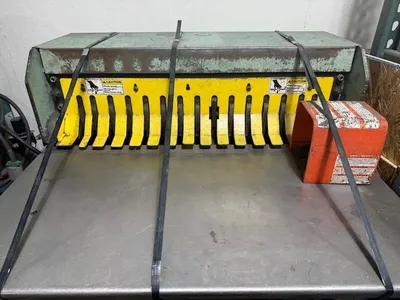

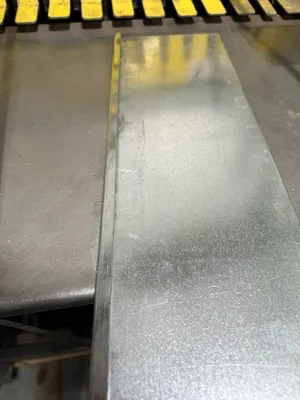

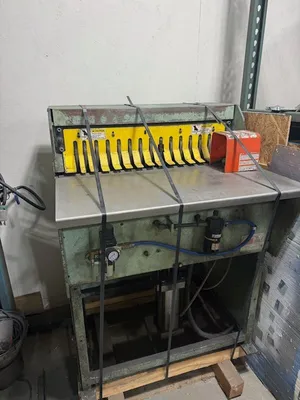

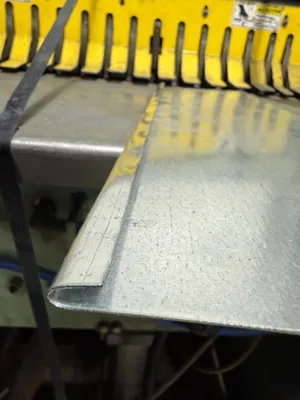

This USED Roto-Die CB-30 Open End Cleat Bender quickly forms consistent cleats with no setup or adjustment.
Features: Pneumatically Operated
Wide jaws allow forming in 1/2″ increments
Adjustable cleat settings
Front-mounted quick-release valves
This machine was built in Cleveland, Ohio by Roto-die, but are NO LONGER produced.
