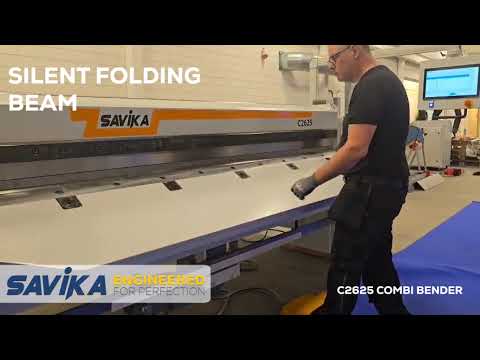

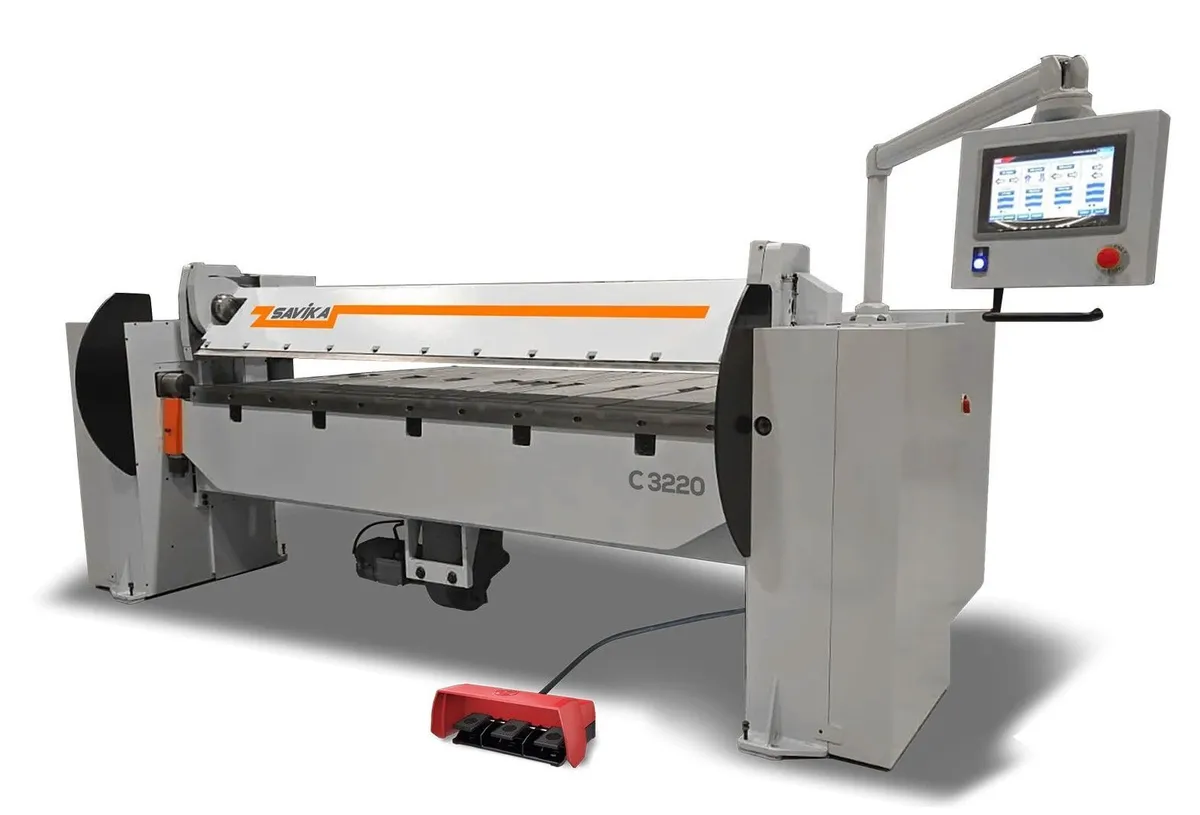

The SAVIKA Combi Beam model is the double tool folder, that is even more solidly constructed, which means greater bending capacity. With a range of control systems and backgauge options as well as a wide selection of rails, the C-model can be fully customized to meet your requirements.
Precision, Durability & Efficiency
Revolutionizing Sheet Metal Folding
The Savika Folding Machine is designed for professionals in the sheet metal industry, delivering exceptional precision, durability, and efficiency. With cutting-edge technology and a robust construction, Savika is the ideal choice for industrial and custom metal fabrication.
Why Choose Savika? Savika stands out in the market by combining precision engineering, advanced technology, and superior build quality.
BENEFITS: Rotating combi beam solution with segmented box tools
Strong structure for high quality bends
Timesaving through 1-man operation with minimal maintenance effort
Easy software for fast programming

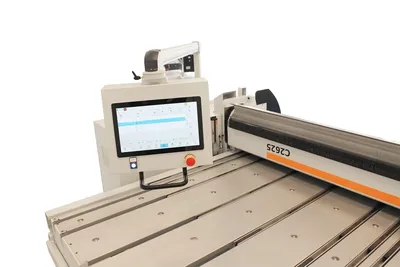

CONTROLS
Savika machines come with 2 types of controllers.
Choose from: LBL – Line by line programming 12“touchscreen
2D graphic – graphic CNC software 15“touchscreen
SERIES EQUIPMENT
The following series equipment is possible depending on the version (working length/control):
Sharp rail 30° R 1 mm / .0393 inch offset
Motorized backgauge 3 – 1000mm Insert rail 7/10 mm

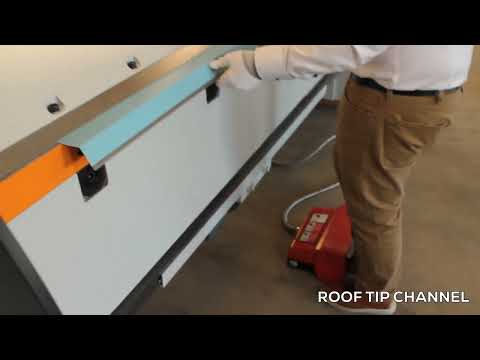

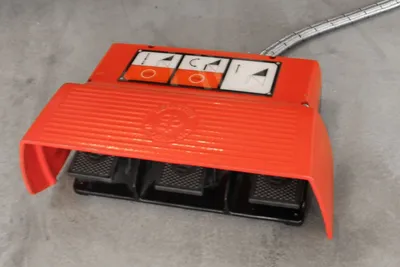

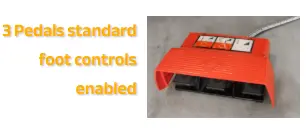

Insert rail 25 mm / .0984-inch Foot pedal 3 pedal

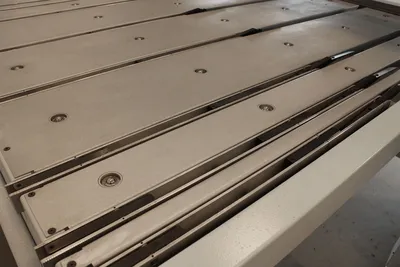

Ball transfers in backgauge table
ADD-ONS – OPTIMISE YOUR SAVIKA
The following add-ons are possible depending on the version (working length/control):

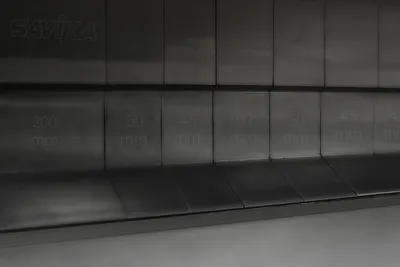

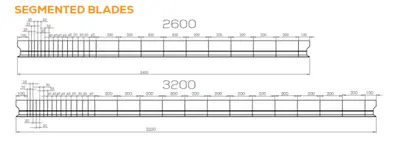

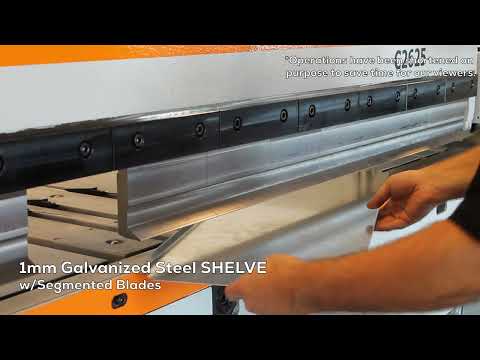

Combi beam with segmented box tools
5 – 1550 mm / 5 mm to 61.02 inches motorized backgauge with 3 stations (under 3 sec for positioning)
2D Graphic software

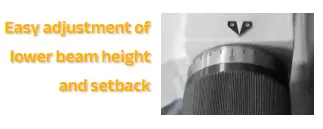

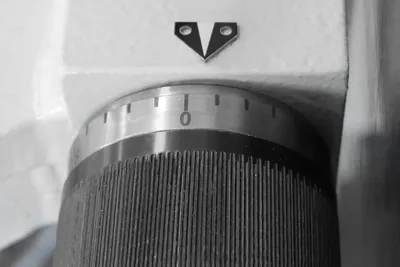

Motorized folding beam adjustment
Squaring arm on backgauge side
U shape backgauge or L shape backgauge

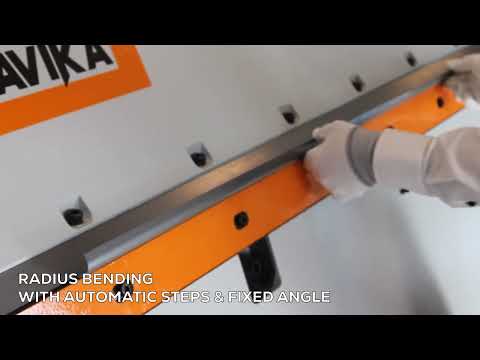

Radius rails

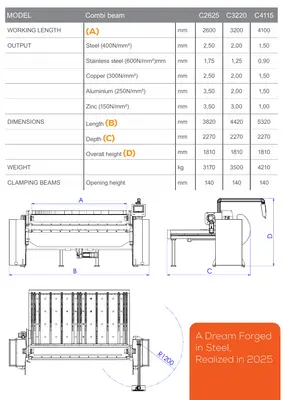

TECHNICAL DATA
MODEL C3220 COMBI BEAM C3220
WORKING LENGTH 125.98 inches
OUTPUT Steel (400N/mm²) 14-gauge
Stainless steel (600N/mm²) mm 18-gauge
Cooper (300N/mm²) 14-gauge
Aluminium (250N/mm²) 10-gauge
DIMENSIONS Length 174.01 inches
Depth 89.37 inches
Overall Height 71.25 inches
WEIGHT 7716.17 lbs.

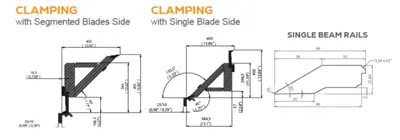

CLAMPING BEAMS Opening height 5.511 inches
Ball transfer in backgauge

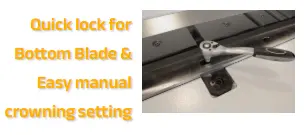

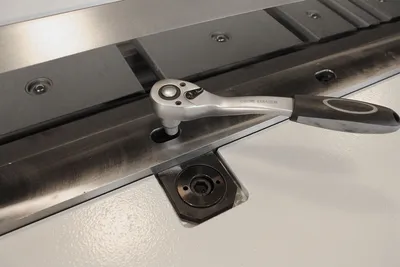

Quick lock on insert rails for fast change of tools

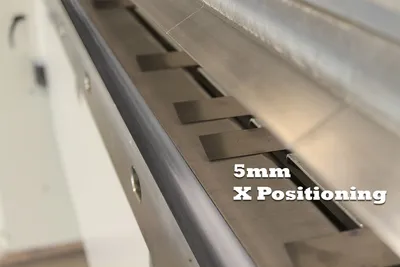

Multistation 3 stations backgauge with Feather Springs in front for making no marks from under rail

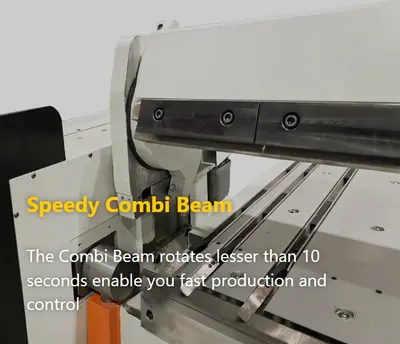

Rotating upper beam for quick change between standard and box tools (under 10 sec to change)
Box tools 100mm high freespace on C-model
Strong folding beam for the best folding result
Motor in middle for upper beam give exact same force in both sides of the machine and more accurate folding.
Customizable table on the back with expansion possibilities.
TECHNICAL DATA
MODEL Combi beam C3220
WORKING LENGTH 125.98 inches
OUTPUT Steel (400N/mm²) 14-gauge
Stainless steel (600N/mm²) mm 18-gauge
Cooper (300N/mm²) 14-gauge
Aluminium (250N/mm²) 10-gauge
DIMENSIONS Length 174.01 inches
Depth 89.37 inches
Overall Height 71.25 inches
WEIGHT 7716.17 lbs.
CLAMPING BEAMS Opening height 5.511 inches
