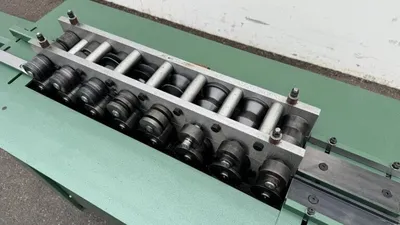

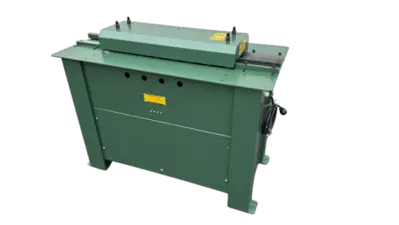

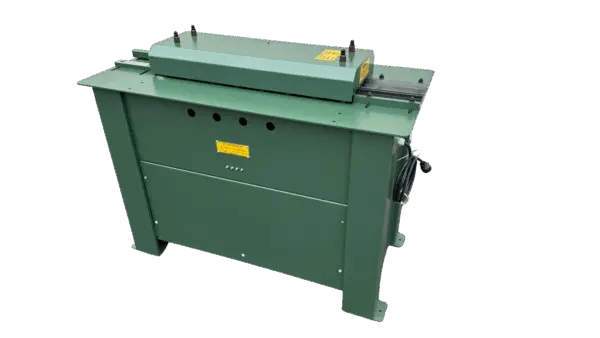

The Tin Knocker S & Drive Rollformer is the ideal machine for shops looking to improve their efficiency and quickly fabricate both S and drive cleats. The S & Drive Rollformer utilizes 8 stations to form either 3-5/8” width material into S-cleats, or 2-1/8” width material into drive cleats.
With its ability to efficiently fabricate large quantities of both S and drive cleats, from either new or scrap metal, the S and Drive Rollformer is a fast payback machine for HVAC shops.
Note that this machine does NOT include a slitter.
Capacity: 22-28 Ga. Galvanized Mild Steel
Motor: 1.5 HP, Single Phase 110 Volt
Width of finished S-Cleat: 1-1/16”
Width of finished Drive Cleat: 1 1/8”
Dimensions: 52” x 29” x 46”
Weight: 565 lbs
Capacity: 22-28 Ga. Galvanized Mild Steel
Motor: 1.5 HP, Single Phase 110 Volt
Width of finished S-Cleat: 1-1/16”
Width of finished Drive Cleat: 1 1/8”
Dimensions: 52” x 29” x 46”
Weight: 565 lbs
