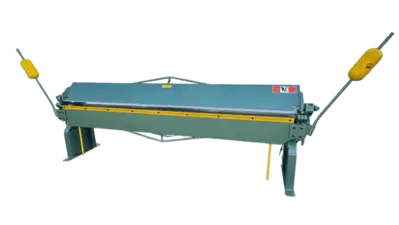

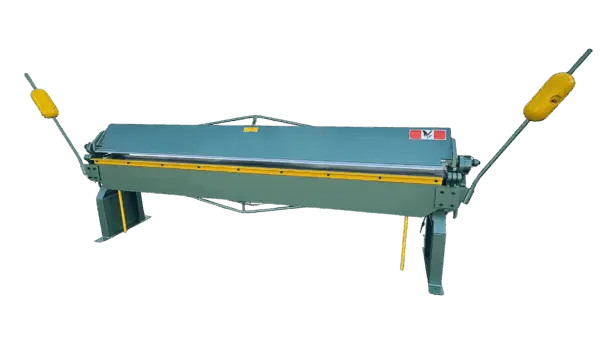

The Tin Knocker 1018 Leaf Brake is a heavy duty, manual sheet metal brake, capable of bending material up to 10 feet wide and 18 gauge weight. The 1018 is an industrial-quality brake, designed and built to last.
The Tin Knocker 1018 Leaf Brake includes the following features:
A spring steel nose bar for durability and long-lasting service
A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity.

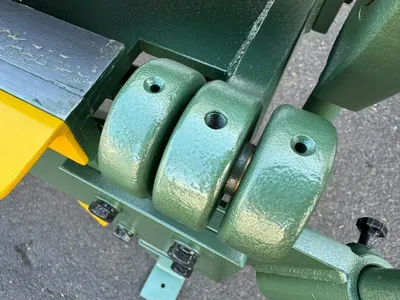

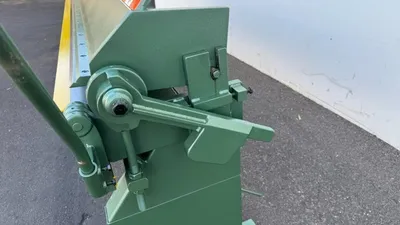

A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication. Easily serviceable and rebuildable.
A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees.
Material Capacity: 18ga
Max. Bend Length: 10'-1"
Beam Lift: 2-1/4"
Max. Bend Angle: 135°
Box/Pan Depth: 2" on 3 sides
Dimensions: 144" x 32" x 43"
Weight: 2750 lbs
Included Equipment: Bolt-on apron angle & counterweights
