LOCKFORMER 1" STANDING S CLEAT ROLLFORMER

Description

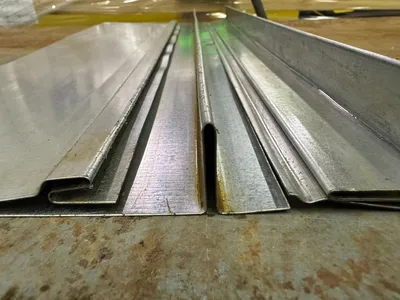

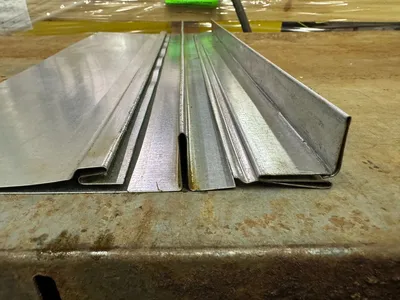

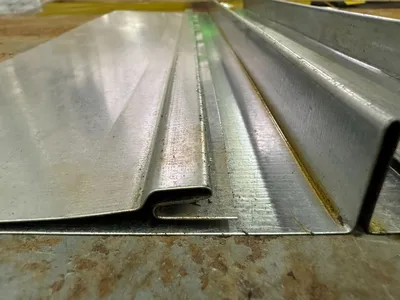

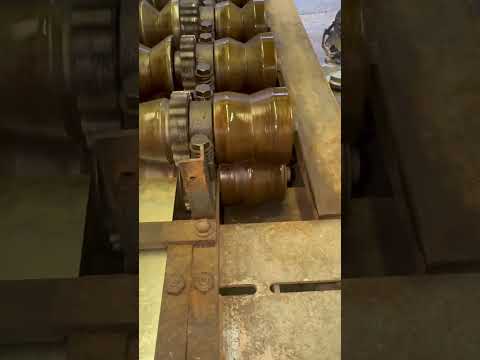

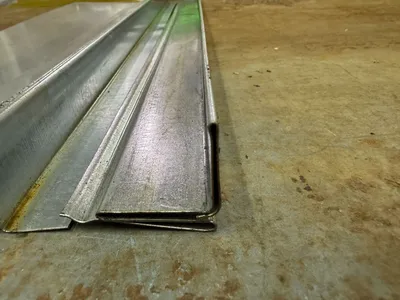

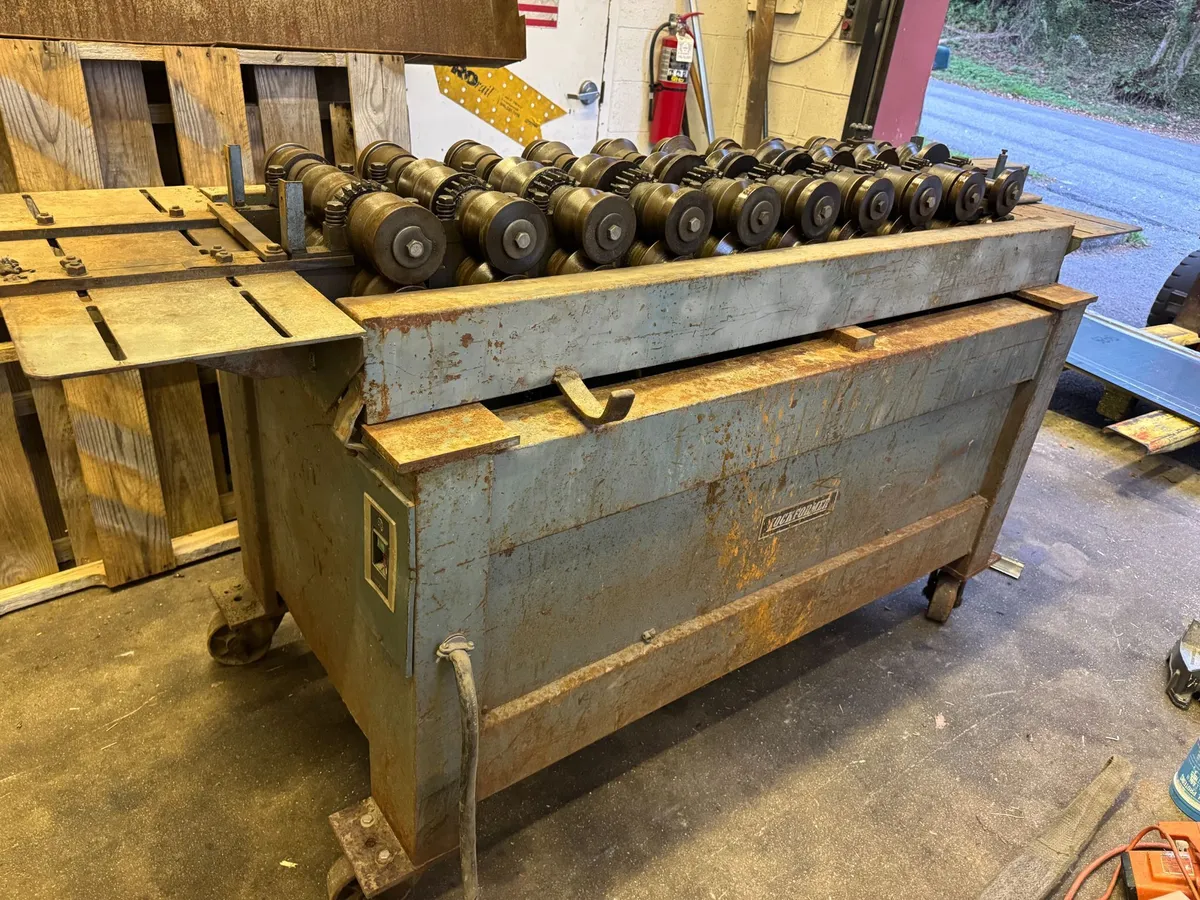

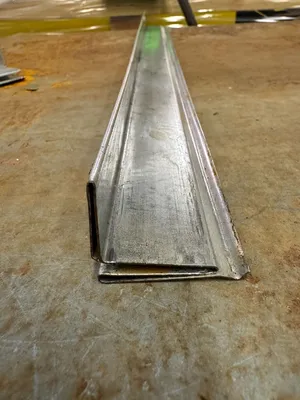

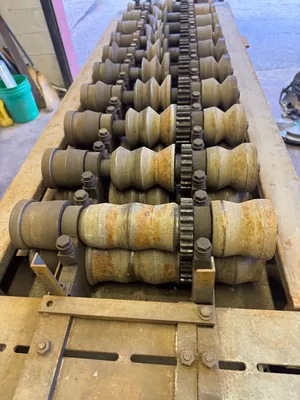

This is a very nice running Lockformer 10-Station Standing “S” Cleat Roll Former on heavy duty easy to move casters, she doesn't look great because it was in a old unheated shop, BUT it runs perfectly. This machine will allow you to make your own 1-inch Standing S cleat in-house and save money forever instead of buying from a supply house. This machine forms “S” cleat with a standing seam for greater strength and rigidity. This seam is adaptable in fabrication of large trunk or branch lines in industrial and commercial heating and ventilating ducts. Included are two sets of auxiliary tooling on the outboard shafts, one the LEFT side is the heavy duty large 16-gauge Pittsburgh Lock and on the Right side is a set of 3-in-1 rolls. These allow the formation of the Right Angle Flange for the male part of the Pittsburgh; then it has the 1-inch Standing Seam connection and lastly it will form the "T" Connection. This machine runs like a champ and is wired 230-Volt 3-Phase! MAKE US AN OFFER, the MSRP Price is what this machine would cost if ordered new in 2025 as it is equipped. The base 1" Standing S 10-Station machine without the auxiliary rolls retails at $38,430 and delivery would be approximately 12-14 months.
Model: Lockformer Standing "S" Cleat Roll Former | 10 Station
Capacity: 20-26 gauge
Depth of Pocket / Size: 1-1/8" pocket. Uses approximately 6-1/4" material stretch out inboard
Speed: 60 - 70 feet per minute
Motor / Voltage: 5 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM
Dimensions: Length: 84" x Width: 30" x Height: 37" Passline: 33"
Weight: 1,700 lbs.

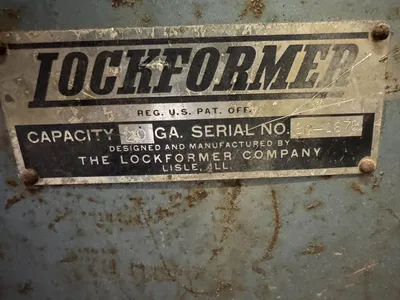

100% Made in USA, Lisle, IL.
Call us to discuss price we will help get the machine to you. 800-753-0393
