SCHLEBACH SLASHER CUT-To-LENGTH SLITTING LINE

Description

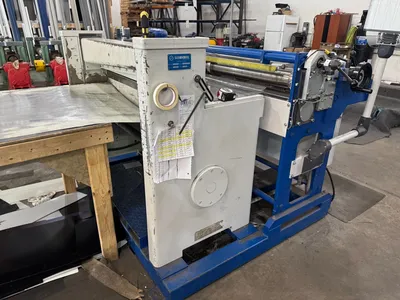

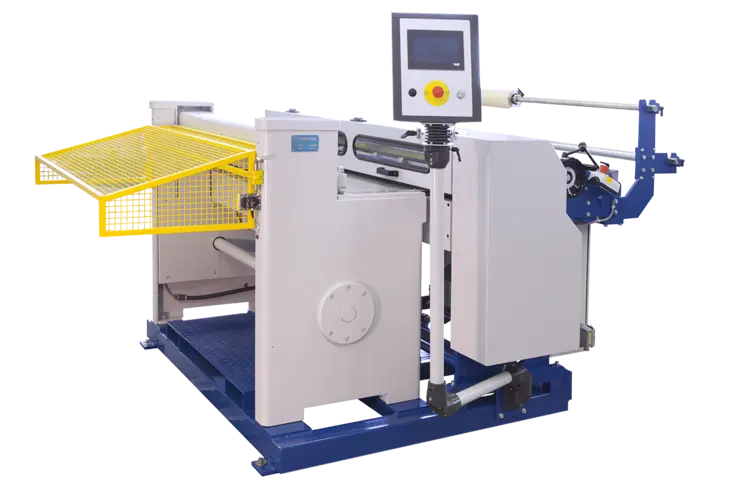

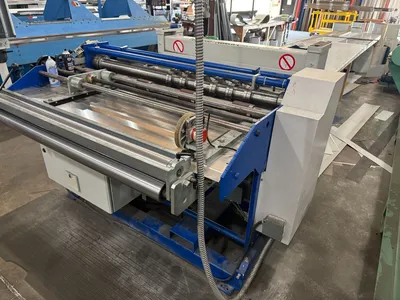

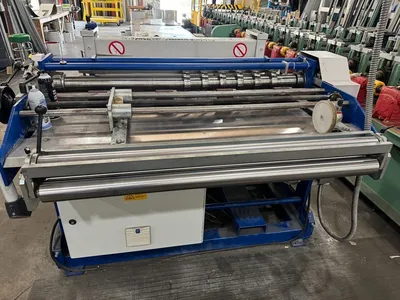

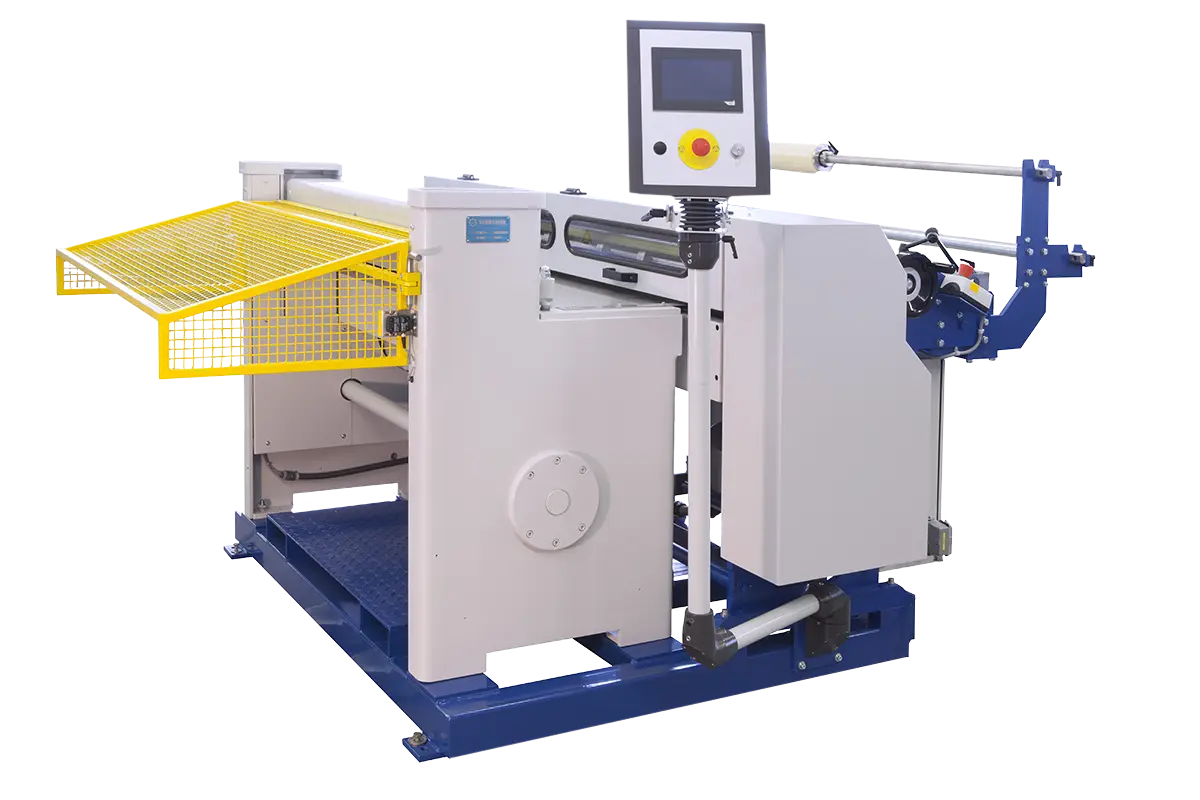

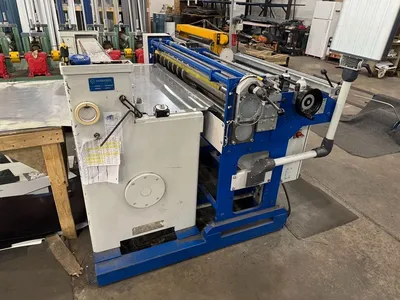

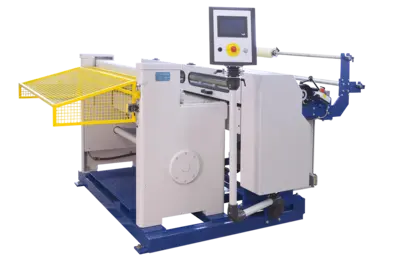

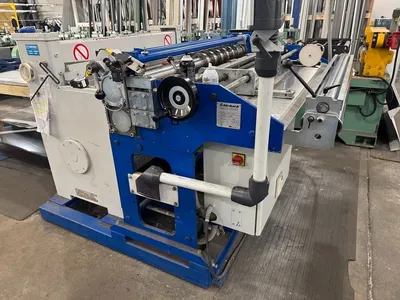

This is a 2019 Schlebach Slasher Slitting and cross-cutting system for flexible, precise and burr-free cutting of wide metal strips.
Productive slitting and cross-cutting system for wide strips 1,250 and 1,500 mm
Cross cutting with guillotine shear for high productivity
Run-in width steplessly adjustable from 200 – 1,250 mm (1,500 mm)
Material thickness up to 2 mm (depending on material and number of cuts)
User-friendly PLC control with 7“touch panel
Feed rate 22 m/min (adjustable via frequency converter)
Strip in-feed, easy on materials, with specially coated feed rolls
Rapid clamping mechanism for damage-free clamping of the blades

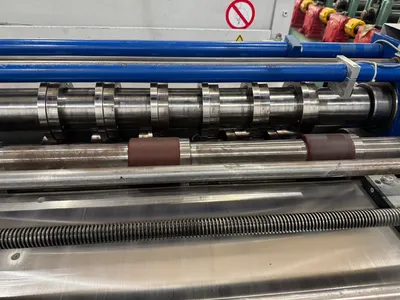

Blade shafts with 4 pairs of knives (deployable and regrindable from both sides)
Adjustable support for lower blade shaft
Blade position control using scale, with millimeter precision
Blade shaft with 100 mm diameter
Optional enhancement up to 10 pairs of knives at reduced cutting capacity
Raising of the upper shaft for waste optimization and for cross-cutting operating mode
Maintenance-friendly, easier and more efficient blade changing
Uniform base frame for cross-cutting system and guillotine shear
Forklift pockets for safe transport

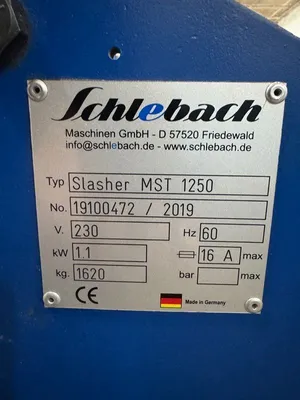

MODEL: SLMST 1250
Supply voltage 400 V / 50 Hz / 3 Ph.
Optional:
460 V / 50 Hz / 3 Ph.
230 V / 50 Hz / 3 Ph.
Optional:
460 V / 50 Hz / 3 Ph.
230 V / 50 Hz / 3 Ph.
Drive power 2.2 kW
Strip run-in width: 200 – 1,250 mm
Working speed: max. 22 m/min, adjustable
Length tolerance: ± 0.5 mm (1,000 mm)
Number of blade pairs Default: 4
Number of Blades INCLUDED: SIX
Optional up to 10 (depending on the Material)
Processable materials
Sheet steel (400 N/mm²): 1.25 mm (4 blade pairs)
Stainless steel (700 N/mm²): max. 1.00 mm (4 blade pairs)
Copper / Zinc: 1.25 mm (4 blade pairs)
Aluminium max. 1.5 mm (4 blade pairs)
Dimensions (L x W x H) 1,710 mm x 2,050 mm x 1,450 mm
Weight approx. 1,620 kg
