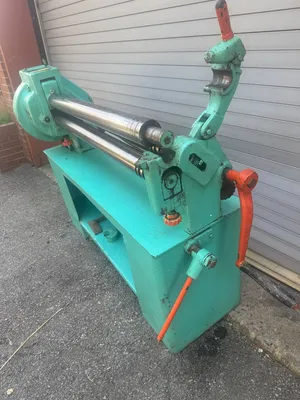

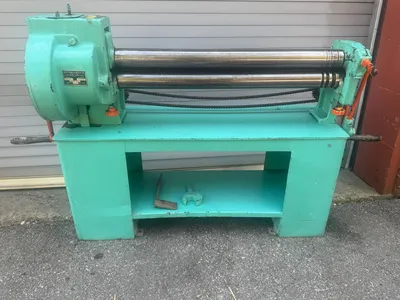

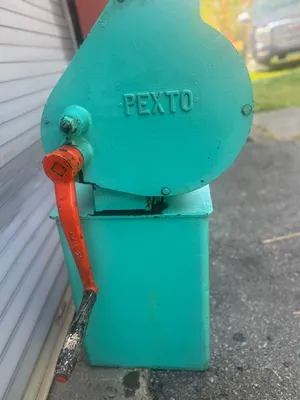

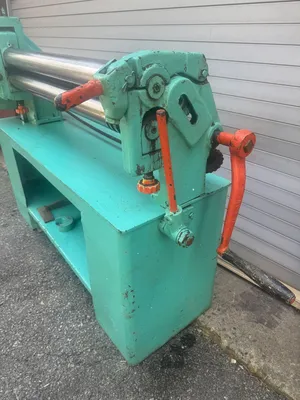

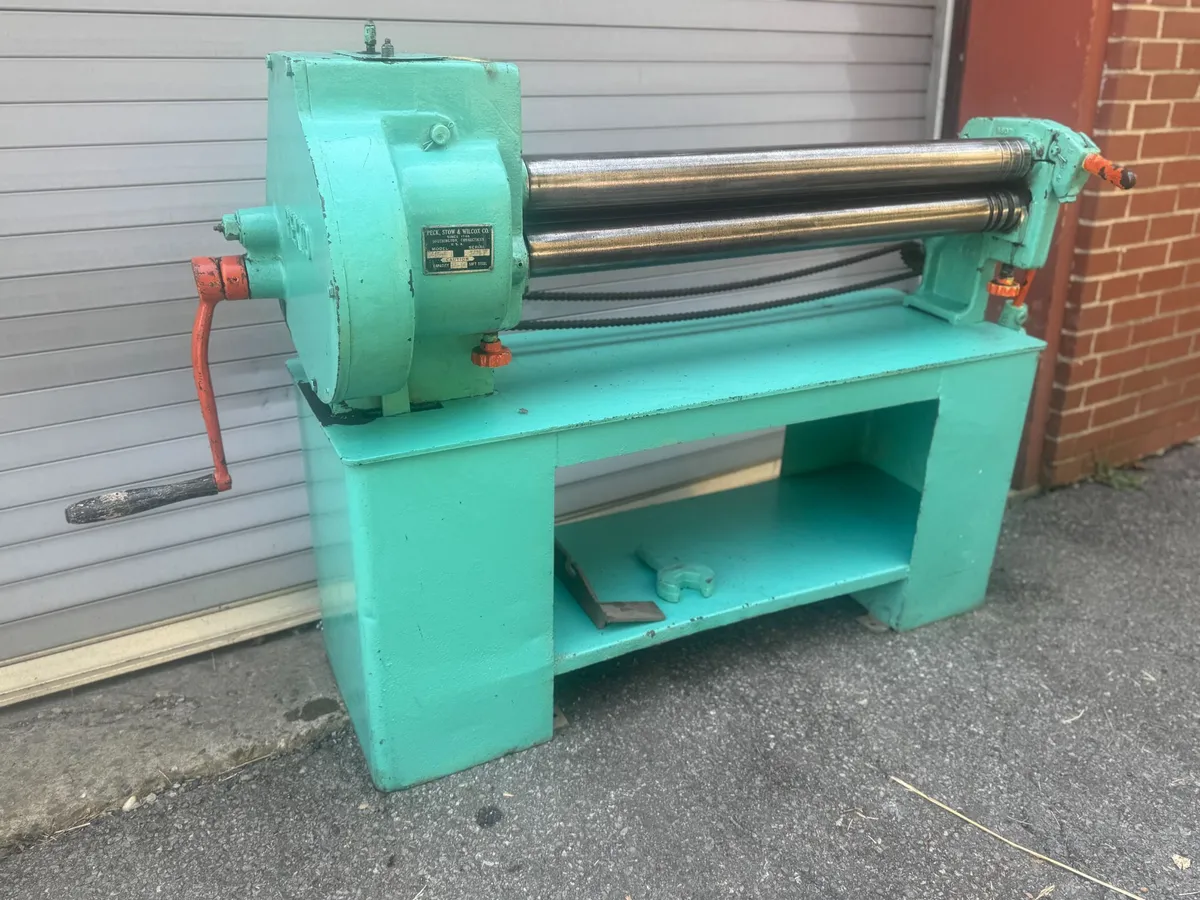

Pexto 416-E Manual Slip Rolls

Description

The Pexto 416E is a heavy-duty manual slip roll machine designed for bending mild steel sheets up to 14 gauge, featuring 3-inch precision turned rollers and a maximum forming length of 36 inches.
Key Specifications and Features
Roll Length: 36 inches (3 feet), suitable for handling sheets up to this width.
Material Capacity: Can bend mild steel up to 14 gauge thickness, approximately 2.0 mm thick.
Roll Diameter: 3 inches, precision turned and ground from high carbon steel for durability and accurate forming.
Forming Radius: Minimum radius achievable is about 1.5 inches, allowing tight bends.
Wiring Grooves: Equipped with three different wiring grooves sized at 3/8", 1/2", and 5/8" for forming wires or special shapes.
Gearing Ratio: 4:1, which provides mechanical advantage for rolling thicker materials with ease.
Weight and Dimensions: The machine typically weighs around 720 pounds and measures approximately 69 inches in length, 19 inches in width, and 19 inches in height.
INCLUDES: No. 416 Heavy Duty Welded Floor Mount Stand
