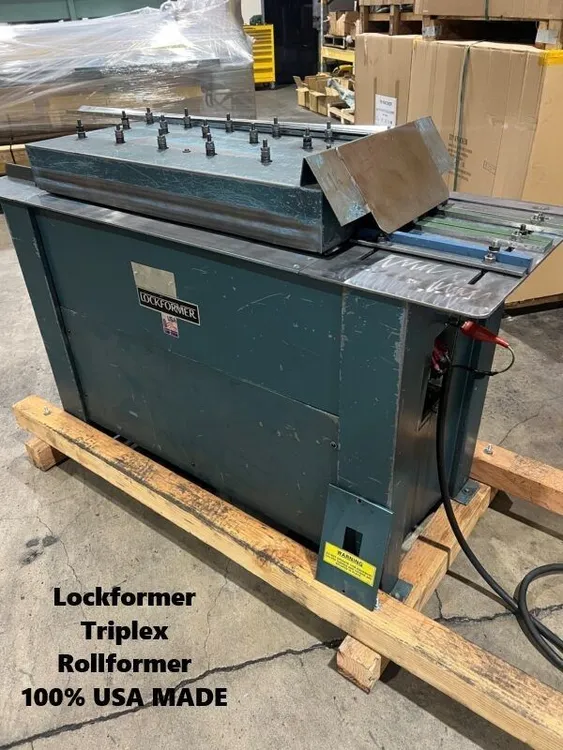

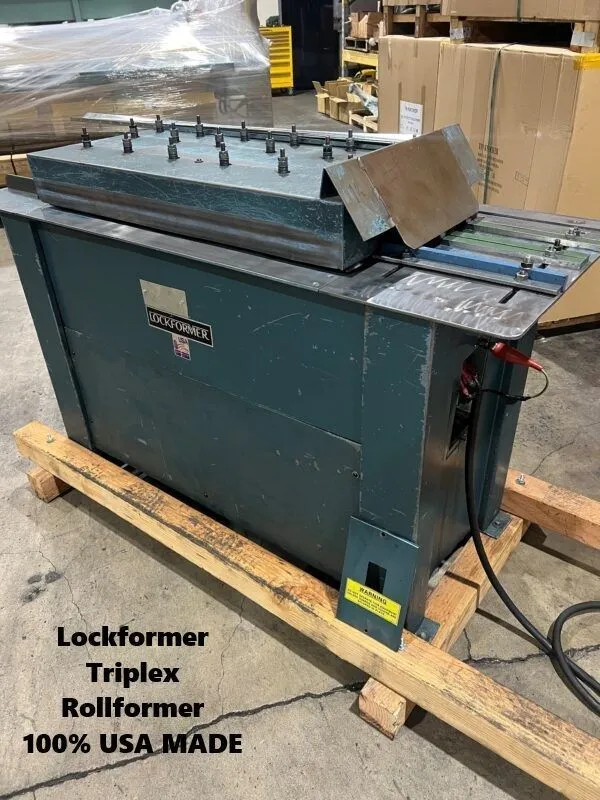

LOCKFORMER TRIPLEX CLEATFORMER

Description

This Lockformer Triplex Cleatformer has 9 forming stations with two (2) inboard forming position for the Flat “S” Cleat and Drive Cleat as well as two (2) outboard stations equipped with MALE and FEMALE SNAPLOCK ROLLS. It is a stand-alone machine that has a 5 HP Motor and runs on 230 Volt, Three Phase Power with 100 FPM running speed. This machine is ready to ship, wire up and run parts upon delivery. Call us to order at 800-753-0393
Model Lockformer Triplex Cleat Former
Capacity 22-28 gauge for "S" cleat profile and 20-26 gauge for drive cleat profile
Depth of Pocket / Size "S" cleat width 1-1/16" / Drive cleat width 1-1/8"
Speed 100 feet per minute
Motor / Voltage 5 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM.
Dimensions Length: 60" Width: 24" Height: 40"
Pass-line Height: 32-1/2"
Weight: 850 lbs.
