LOCKFORMER 16 GAUGE PITTSBURGH
Have one to sell?
ConditionUsed
1 available
$3,150.00 USD

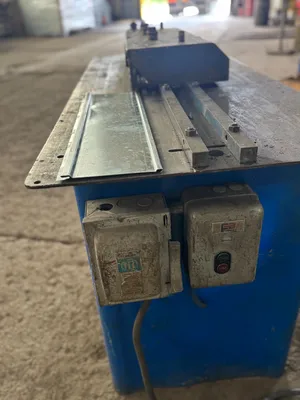

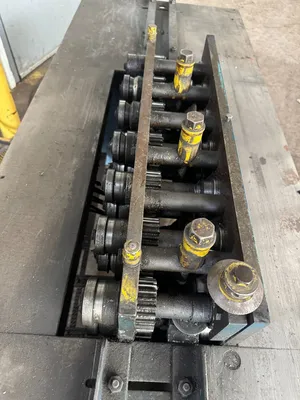

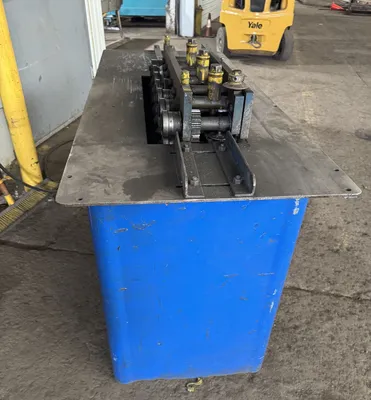

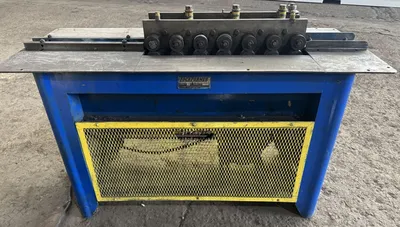

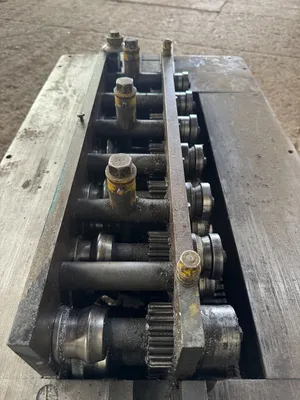

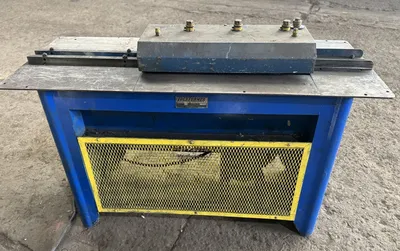

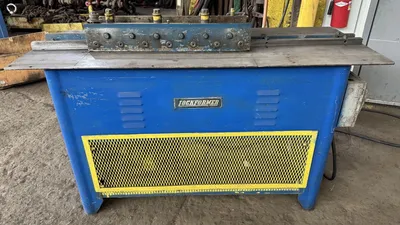

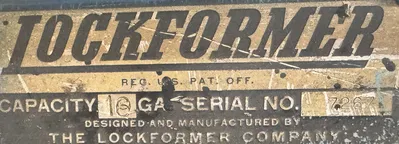

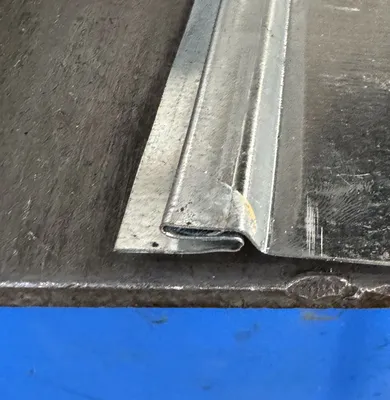

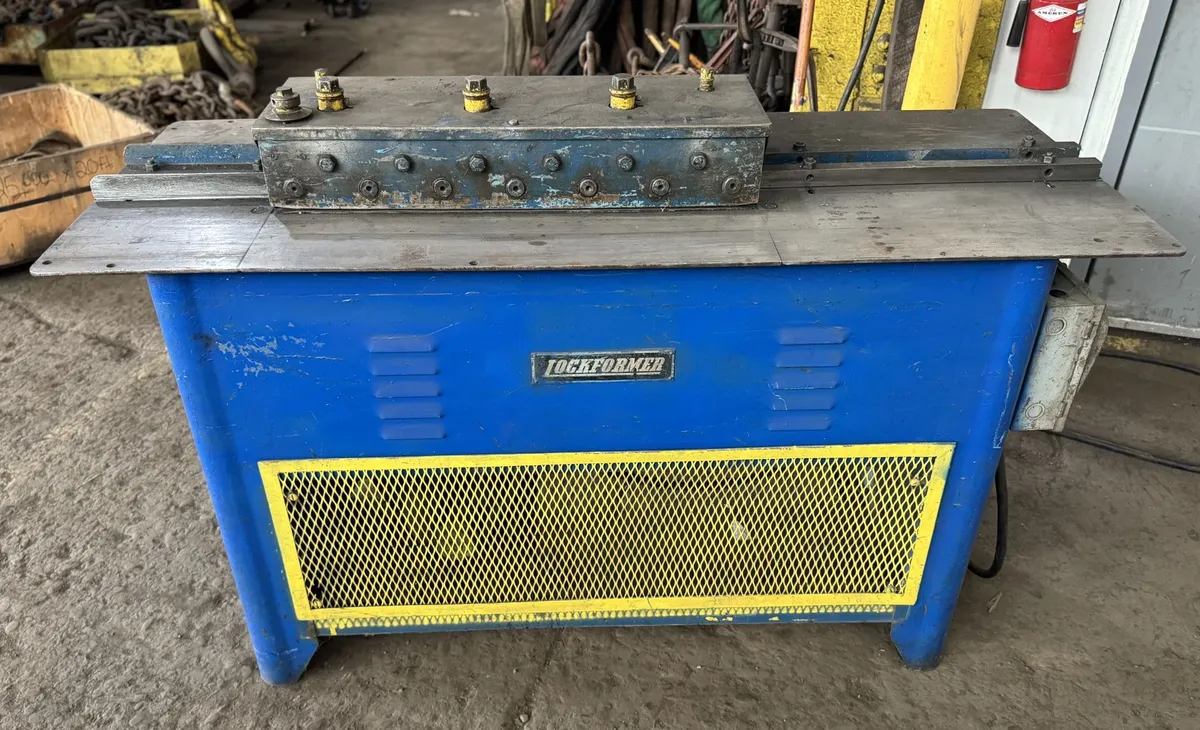

This is a 16-gauge Lockformer Pittsburgh equipped with the 16-gauge female Pittsburgh roll set on the inboard side and then it has ACME Lock rolls on the auxiliary side. Serial number 7267. THIS MACHINE IS AVAILABLE TO BE "RENTED" BY THE MONTH IF BUYING A MACHINE ISN'T IN THE BUDGET. IT ALSO CAN SERVE AS A "LOANER" IF YOU WOULD LIKE US TO REBUILD YOUR EXISTING 16-GAUGE PITTSBURGH. LET'S DISCUSS IT. Like all 16 gauge Pittsburgh rollforming machines this has 7 forming stations. The outboard side has the capability of forming 1 of 8 different profiles depending on which auxiliary roll set is ordered.

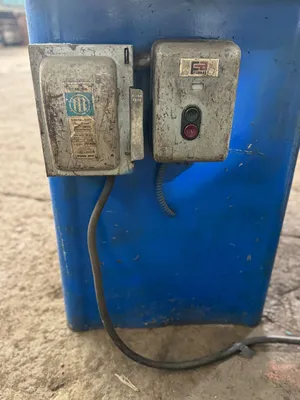

Motor: 3HP/3PH/220-440 Volts.
**All machines shown are subject to prior sale, machine has not been refurbished and availability is subject to shop backlog and replacement parts.
Capacity: 16–18 gauge

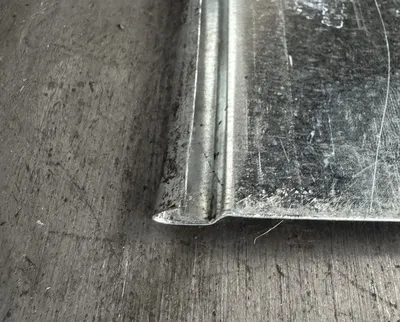

Depth of Pocket/Size: 1/2" Uses approximately 1 3/8" of material
Other: Width of hammer-over edge adjustable up to 3/8". Extended shafts for mounting auxiliary rolls.
Speed: 40 - 45 feet per minute
Motor/Voltage: 3 H. P. , 230/460 volts, 60 cycle, 3phase, A. C. 3,600 RPM. Other motors available upon request
Dimensions: 58.5" L x 24" W x 41" H
Passline: 34"
Weight: 750 lbs.
