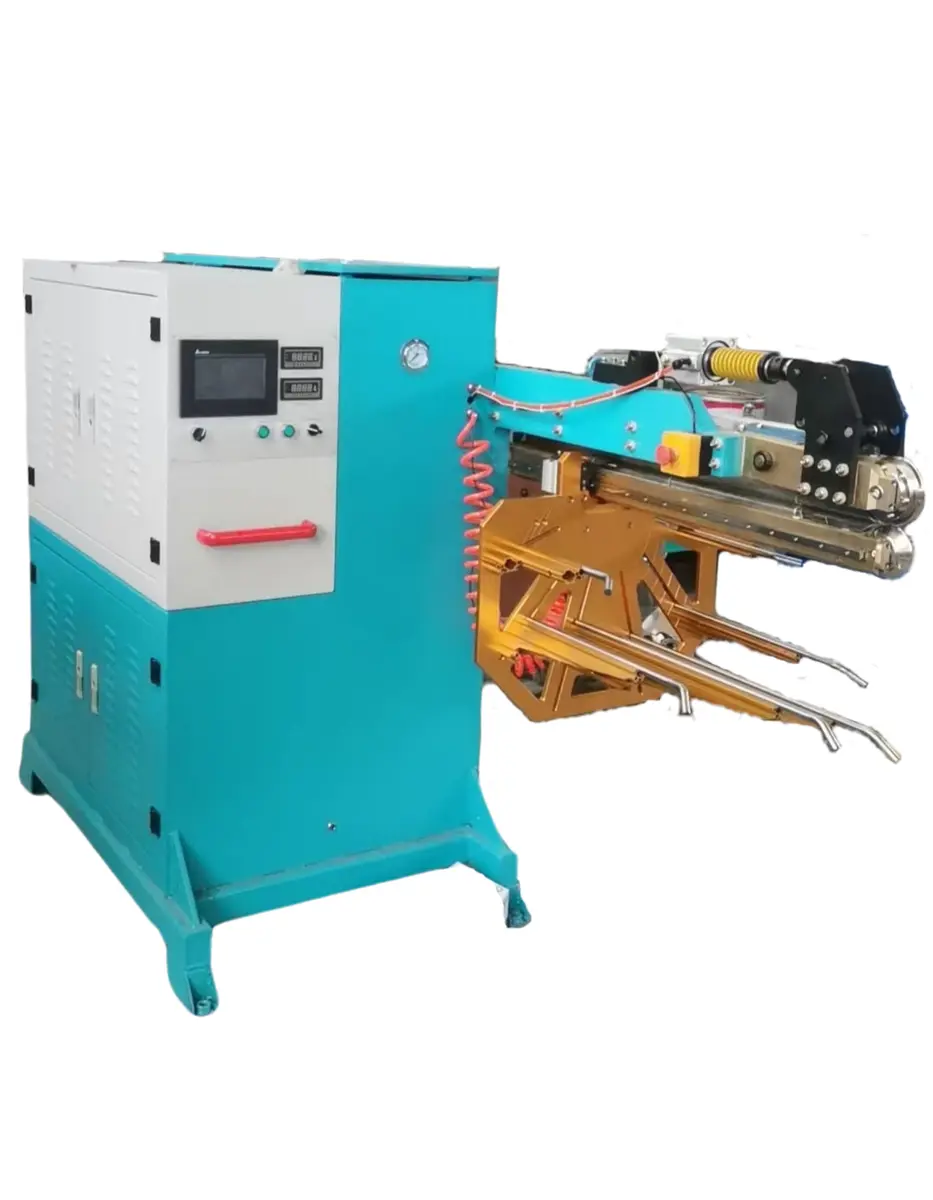

BRAVO SW1000 Stitch Welder

Description

Are you looking for precision and efficiency in sheet metal welding? Look no further than the Bravo Stitch Welder! Engineered to save time and Material.
Key Features:
• Minimum material overlap: 6 mm (0.250")
• The strongest machine on the market: 100 KVA, it welds up to 20 Ga
• Diameter range: 100 to 1000 mm (4 - 40 inches)
• Easy Programming in English and/or Spanish: Navigate effortlessly with a user-friendly touchscreen interface.
• Internationally recognized and available components to include but not limited to: Schneider electrics, Delta HMI and PLC, NSK, HIWIN
bearings, ...
Whether you ́re in appliances, HVAC or general manufacturing, the Bravo Stitch Welder upgrades your welding capabilities. A great, complementary machine to your Gorelocker operation.

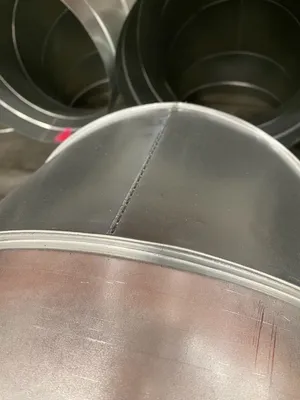

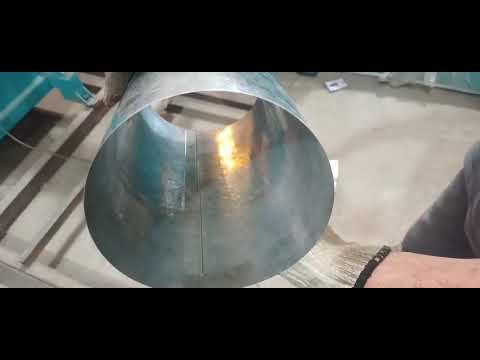

A Stitchwelder is designed specifically for longitudinal seam welding of pre rounded Galvanized and Stainless “tubes”. Capacity is 28 gauge to 20 gauge in Galvanized and Stainless, Min of 3” length, Max of 40” length, seam overlap is 1/4”, the diameter of fittings are min 3” wide and a max of 39” wide.
