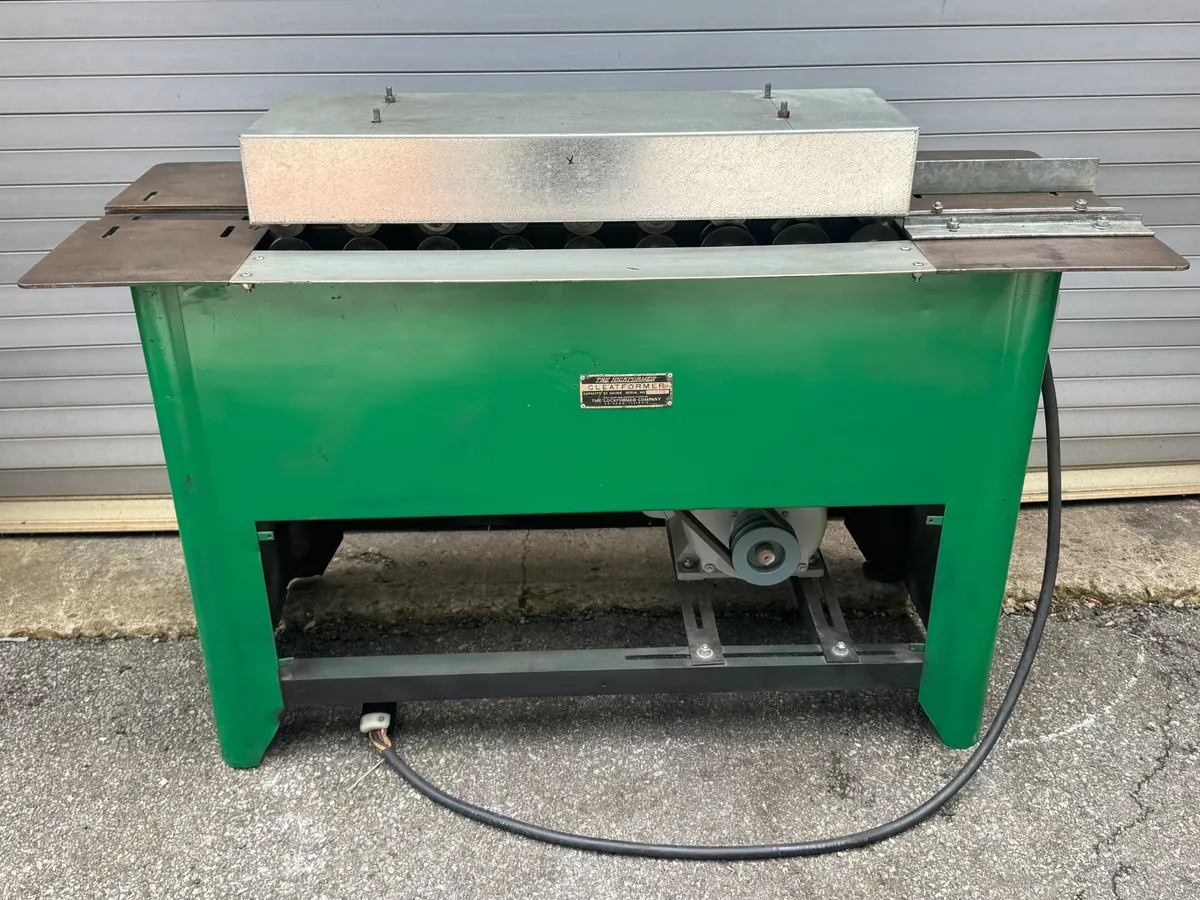

LOCKFORMER 8900 CLEATFORMER

Description

This 8900 makes "S" cleats and Drive Cleats and has an open shaft available to add optional tooling. These are a very flexible Lockformer, designed for superhigh productivity of inboard cleats. The 8900 design has one inboard and two outboard forming positions allowing bearing support on both sides of the profile. These zones also can be adjusted by the operator to meet the requirements of a wide variety of gauges. With 9 forming stations, the 8900 Cleatformer can form 20-28 gauge sheet metal into "S" and drive cleats on the inboard forming positions and up to 12 auxiliary roll set profiles on it's open outboard forming position at speeds averaging 100 fpm. It's precision needle-type bearings; heavy 3/4" chassis plate; case-hardened and ground roll shafts; and an arc-welded steel stand. This machine has been testet, see video attached. 90-day warranty on all parts, any adjustments will be done by customer. This is a nice rollformer and can be shipped common carrier. Flat "S" Slips Mounted Inboard Center (22 to 28 Ga.)
**THIS MACHINE HAS A DOUBLE EXTENDED SHAFT FOR AUXILIARY TOOLING THAT CAN BE ADDED**
20 Gauge Pittsburgh Rolls
Drive Cleat Rolls - included
3-in-1 Clinch Collar Rolls
Male Button Punch Snaplock Rolls
Female Button Punch Snaplock Rolls
