IOWA PRECISION COIL LINE

Description

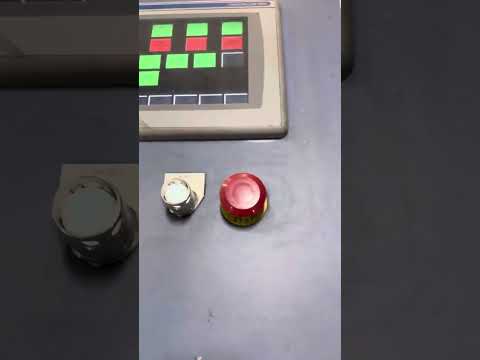

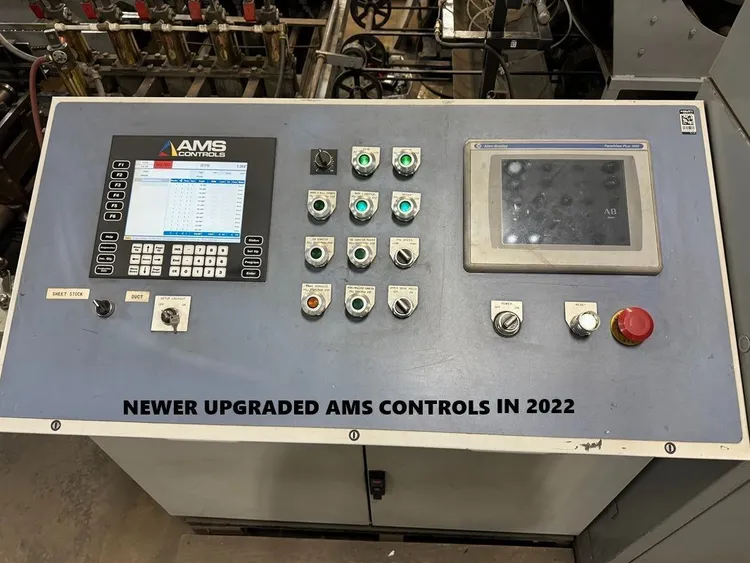

This Iowa Precision Fabriduct 4 coil system is equipped with a new AMS controller, Beading, Notchers for Slip & Drive and TDC, 16-gauge shear, transfer table into a MARK V Duplex Rollformer which roll forms the Male and Female Pittsburgh or Male and Female Snaplock, then transfer table into the Cleatformer Duplex, 14-Station TDC Duplex, thru to the Glue System on the insulmatic, 5 Head Durodyne Pinspotter ending in the full Wrapper Brake system.

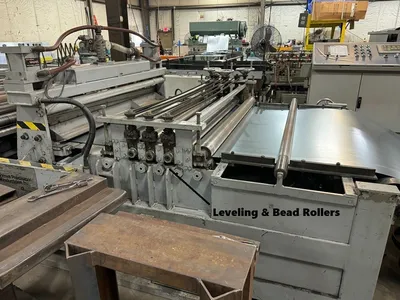

Duct-O-Matic II with 12" on center adjustable Beading, 16-gauge x 60" Leveling Section

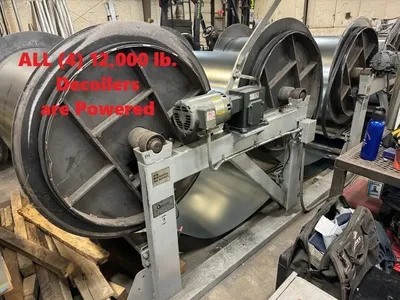

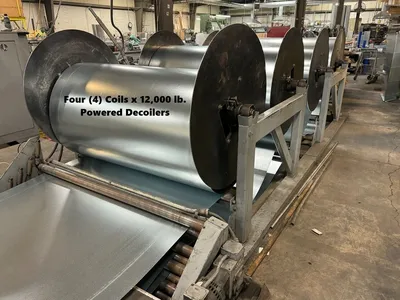

Four (4) Coils, each 60" x 12,000 lb. Capacity, powered (Motor Belt Driven)
60" x 16-gauge Mild Steel Shear Section

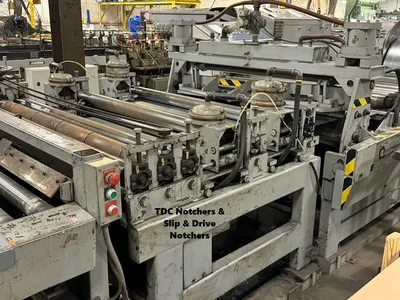

Complete 16-gauge Mild Steel Notching section for Slip & Drive and TDC Connection
(1) Lockformer Transfer Table (5' x 10' capacity) - To Feed Mark V Duplex Rollformer

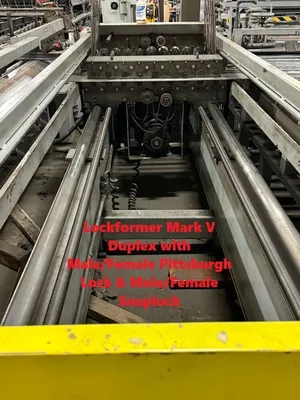

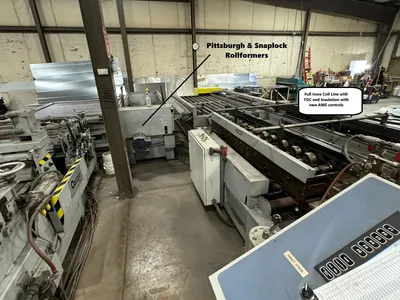

(1) Lockformer Model Mark V Male & Female Duplex Rollformer
Roll Forms 18-gauge Pittsburgh Male & Female with 20-gauge Male & Female Snaplock
(1) Iowa Precision Transfer Table (5' x 10' Capacity) - Feeds IPS Cleat Roller / Drive Ear Rollformer
(1) Iowa Precision CR-5 Cleat Roller (18-gaue Mile Steel Capacity 60" Max.- turns Drive ears for slip/drive

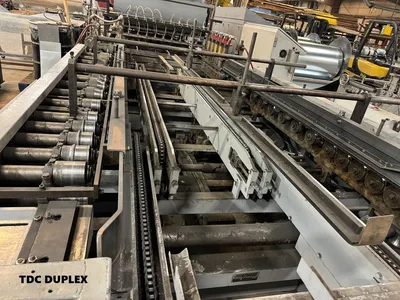

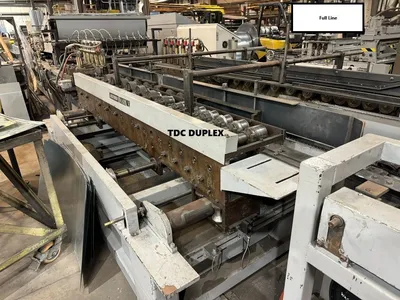

(10 Lockformer TDC 14-Station Duplex Flange Rollformer (18-gauge Mild Steel Capacity)

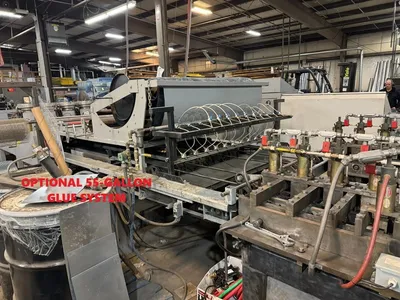

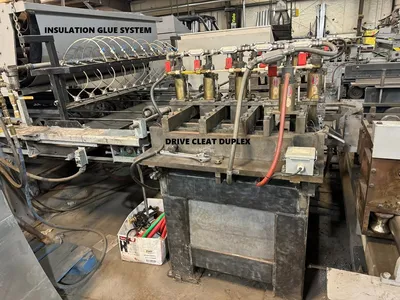

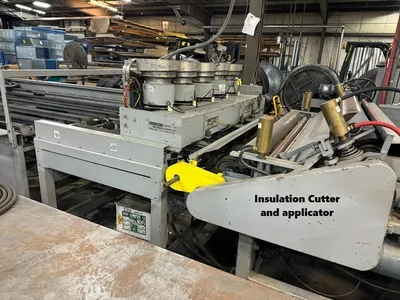

(1) Iowa Precision ISM-60" InsuluMatic Duct Liner with Glue System

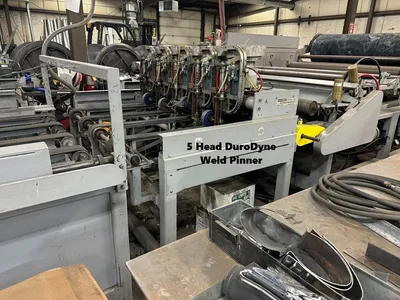

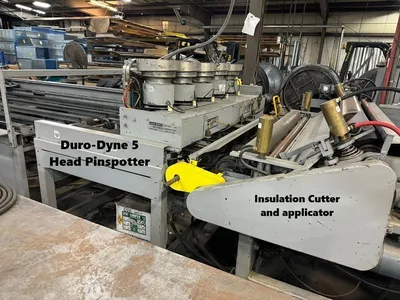

(10 Duro-Dyne 5 Head / Station Weld Pinner to Weld Pin Lined Insulated Duct

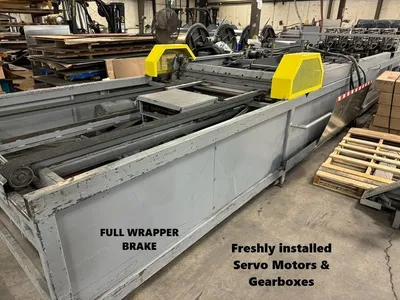

(1) Iowa Precision Model B5w - Wrap Brakke forming, L-shape, U-Shape & Full Wrapper Duct
(Min. Duct Size 6" x 6" un-insulated, 7" x 7" Insulated, Max. Capacity 16-gauge 10' Sheet Length
Call to discuss this line at 800-753-0393, see line footprint drawing attached
