Roper Whitney 11-gauge CNC Autobrake

Description

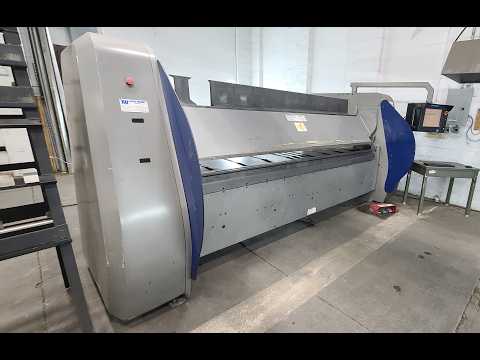

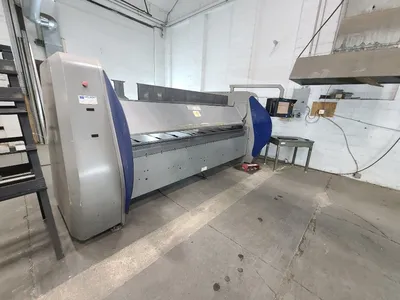

This Roper Whitney 10' x 11 Gauge CNC Autobrake (Model: AB1011K) is a sheet metal brake was made in the USA. It has a bending length of 126" and uses mild steel (11 Gauge) or stainless steel (20 Gauge). The backgauge depth is 61" and it has three bending bars (0.787", 0.390", and 0.250"). The clamping beam opening is 7.9" H14. The Autobrake is powered by an advanced CNC control system, making it easy to use, fast, and accurate for bending various materials and thicknesses, CALL 800-753-0393 today!
This "VERY NICE" Roper 11 gauge Kombi Beam with an L 120"/60" back gauge equipped with the Height adjustable backgauge" 3.75 inches for special box applications, Machine has been gone through and is running perfectly!

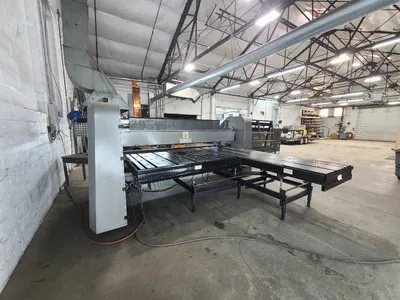

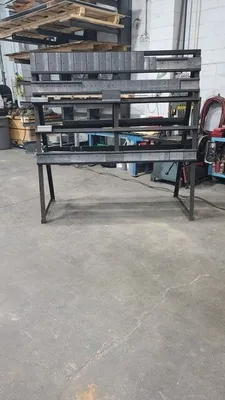

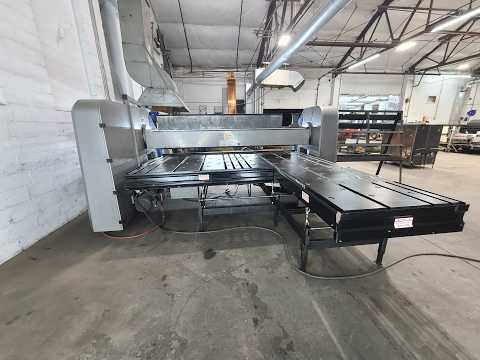

This is a Roper Whitney 10foot, 11 Gauge Auto Brake with Kombi Beam, Orion control, Autobrake (Model: AB1011K). It has a bending length of up to 120"-126", mild steel (11 Gauge) or stainless steel (18 Gauge). The backgauge depth is 120"/61" L style, two "BOX STYLE" bending bars (0.390", and 1.250"), "MORE than $75,000 in tooling alone". The clamping beam opening is 7.9".
KOMBI-type upper beam so that tools can easily be changed when box folding, for example.

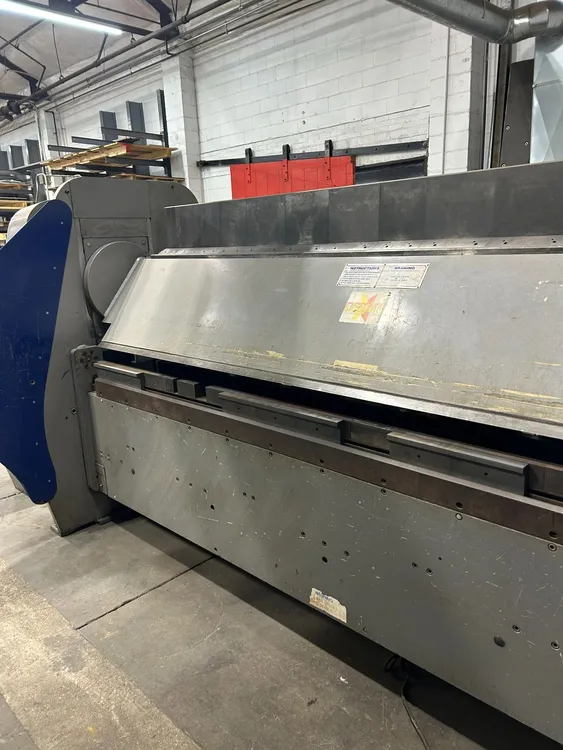

The Kombi beam is rotated via a coupling which is adjusted to protect against overloading and at the same time to give soft contact with the mechanical stops which hold the beam in position. The mechanical stops counteract the forces that arise on clamping and bending. The design of these mechanical stops has been patented by Göteneds. The PRO models are fitted with a sensor which detects which tool has been fitted, the standard 150 mm or high 250 mm tools, such as box folding tools.
The bending beam on the PRO model is also equipped with programmable crowning of the bending bar and programmable sheet thickness setting. After these have been set to their basic settings, they are set by two actuators built into the bending beam, by a program in the control system. (PRO 20 is not equipped with programmable crowning).
This Roper Autobrake Kombi is powered by an advanced Orion control system, making it easy to use, fast, and accurate for bending various materials and thicknesses. This is a very robust industrial-grade machine suited for heavy-gauge, precise, and complex bending applications, including radius productions.

PLEASE see complex box video below and give us a call for pricing at 412-921-2800 or 800-753-0393,
THANK YOU!

Another Video showing the crowning and sheet metal thickness function is below.
