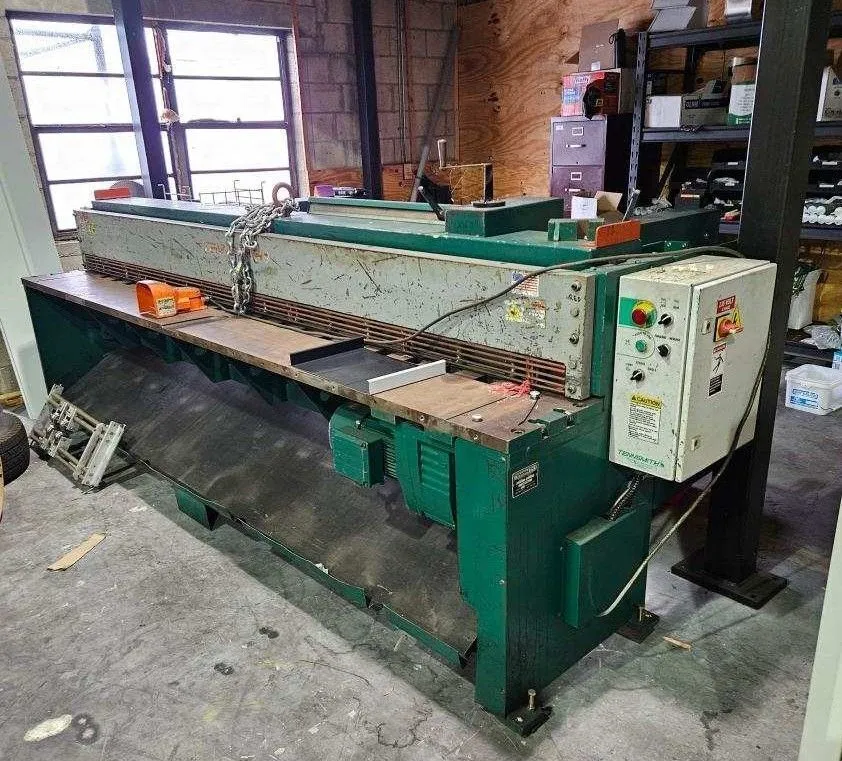

TENNSMITH LM1014 MECHANICAL POWER SHEAR

This LM1014 shear incorporate the unique 2x back gauge system. This allows the operator to move the backstop from 0 up to 30 inches in approximately 2 seconds with only two rotations of the handle. The material is held up in the rear with the rear sheet support system, then sheared and the cut part drops forward to the front of the shear ending up near the operator ankle area. This allows this shear to be placed up against a wall for shop space efficiency. Weighing in at 6,300-lbs, this machine runs standard off of 230volt/3phase electrics. It has a 5-HP motor and requires 30amps. Standard with a Front Operated 30” Back Gauge with Front Return; 35-strokes per minute.
