Roof Panel Machines and Panformers

Description

VS-150 Standing Seam Panformer with Hydraulic Drive and Shear, we will pay your freight if we can secure a deposit on your Rollformer. Call us 800-753-0393, machines are often available from stock.
The VS-150 machine is equipped with hydraulic drive and front hydraulic scissors shear, 110 volt – 1 phase power, 40 FPM speed. It produces the 1″ and 1 1/2″ Standing Seam profile and “U-Panels in the base model machine, adjustable width panels of 9″ to 24”.

The VS-150 is also a “Multi-Profile” capable piece of machinery forming 7 different profiles in total. From Snap Lock styles to true Board and Batten and Bermuda Roof profiles. The versatility is built into the design of the machine but most importantly the changeover time is anywhere from 15 minutes to 1 hour. You can purchase these optional dies at anytime! A Digital Controller for fully automatic operation is also available and highly recommended for increased production.

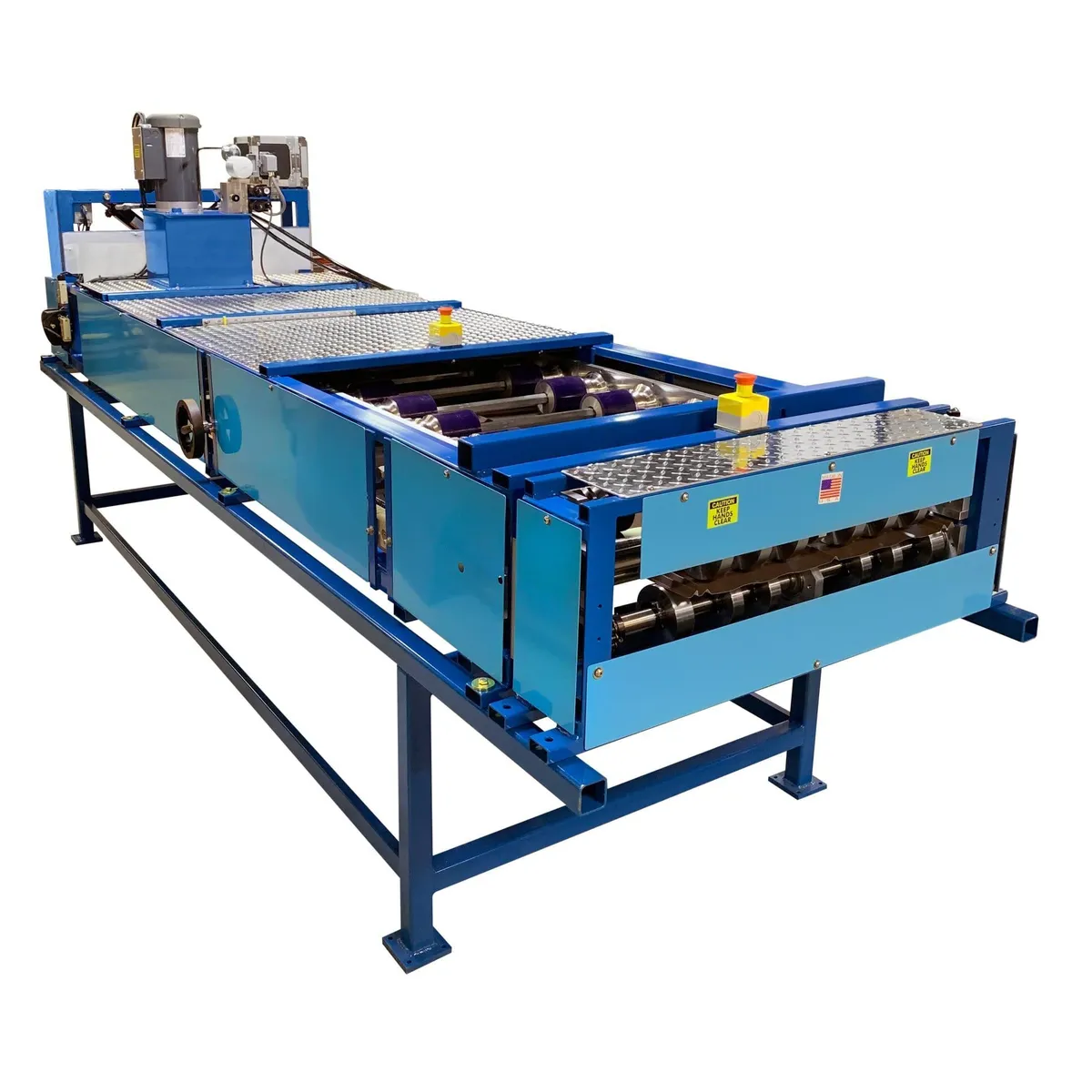

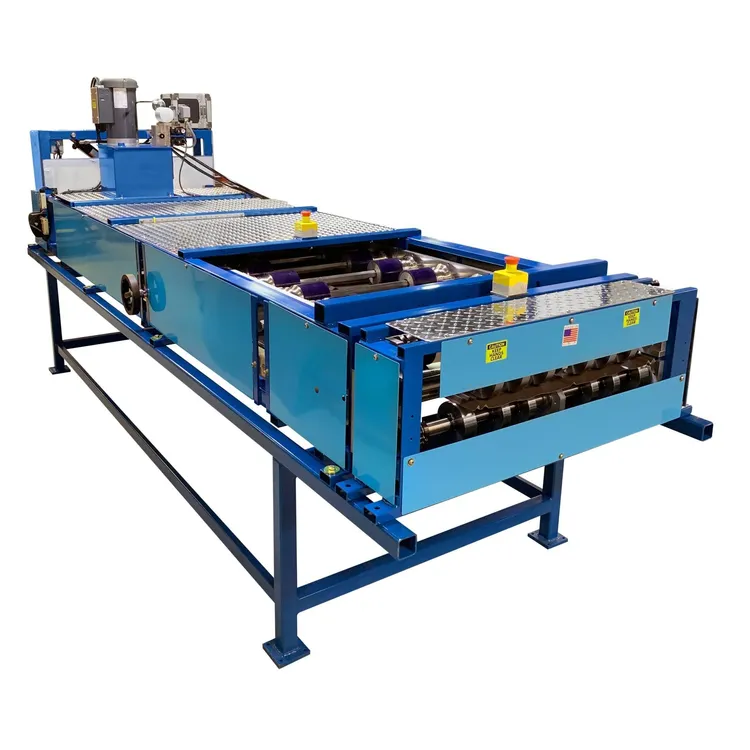

5V Crimp Panel with Hydraulic Drive and Shear
Although originally an agricultural panel, 5V crimp is now a popular residential panel. Mount it in your shop or make it portable and take it to the jobsite.

The 5V machine features a hydraulic drive and front hydraulic scissors shear, adjustable panel width capability 14″ to 28″. The “traditional size” 5V Panel is feeding the machine 27 1/2″ coil stock, giving you a 26″ wide finished panel with 24″ coverage with the overlap.

The Digital Controller is optional but highly recommended for fully automatic operation.

SLP-175 Self-Locking Panel Former with Hydraulic Drive and Shear
SLP – 175 Machine produces one of the most popular commercial metal roof panels in the industry, the 1 ¾” Snap Lock Panel.

The SLP-175 is an adjustable width machine for 12″ to 20″ panels with a 6″ “material use”. Complete with electric – hydraulic drive and front hydraulic scissors shear and a single batch Digital Controller for fully automatic operation. This machine has the option for Stiffening or Striation Ribs.

The machine is powered with a 5 HP 220 Volt 1 or 3 Phase power unit for 22 – 24 gauge Painted Steel – .032″ Painted Aluminum capacity.

NSP Nail Strip Panel with Hydraulic Drive and Shear
Our Nail Strip Panel Machine, or NSP, is the perfect panel for the residential market. It snaps together and requires no clips or seaming. It works great with an inexpensive 28 gauge. material. The additional advantage of no external fastener makes this profile unbeatable.

The NSP – 1” profile was originally made popular in the Pacific Northwest part of the US. This panel is a very attractive residential panel that lends itself to the ease of installation – no seaming, no roof clips needed. Lay it down and screw it to the deck while snapping one panel over the other! It is also ideal for Lumber Yards and Suppliers to sell this panel to local roofing contractors and homeowners who desire a metal roof but without the need of seaming and the roof clips.

This machine comes complete with a hydraulic drive and front hydraulic scissors shear, a Digital Controller for fully automatic operation, adjustable panel width capability of 12” to 20”, nail strip slotting die stage with 3/16” wide by ¾” long slots every 2” O.C. The “material use” on this profile is 5 ¼”.

Originally an agricultural panel, the 5V crimp is now a popular residential panel. Mount the 5V machine in your shop or make it portable and take it to the jobsite. The 5V machine features a hydraulic drive and front hydraulic scissors shear, adjustable panel width capability 14” to 28”. The “traditional size” 5V Panel is feeding the machine 27 1/2” coil stock, giving you a 26” wide finished panel with 24” coverage with the overlap.
Digital Controller is optional but highly recommended for fully automatic operation.

Specifications:
Hydraulic Drive and Front Scissors Shear
40 FPM speed
Adjustable Width: 12’’-20’’
14 Forming Stages
# 40 Chain and Sprocket / Spur gear drive
3 HP Electric-Hydraulic Power Unit, 110V, Single Phase with 16 cu in drive motor
416 Grade Stainless Steel Forming Rolls
303 Grade 1 ¼” Ø Stainless Steel Shafts
Capacities: 24-29 ga. Painted Steel, .032” Painted Aluminum, Copper 16 oz. Max.
Options & Accessories:
3000 Lbs. x 30” Decoiler
5000 lbs. x 30’’ Decoiler
Machine Stand w/ 4 Corner Leveler Pads for shop use
Striation Rib Attachment
Digital Controller for Fully Automatic Operation- Siemens +/- 1/10” Tolerance
Add Increased Production Capability IN SHOP only: 80 – 100 FPM using a 5 HP 220 Volt 3 Phase AC Drive Motor System & Pneumatic Powered Shear (90 – 110 psi). Used in conjunction with the above Digital Controller.

Item Codes:
RF-5V-CR RollFormer 5V Crimp Panel
RF-5V-DECOILER5 RF 5V Crimp Panel Decoiler 5k lbs 30″
RF-5V-DIGITAL RF 5V Crimp Panel Digital Controller for Fully Automatic Operation- Siemens +/- 1/10” Tolerance
RF-5V-DSSYSTEM RF 5V Crimp Panel 5 HP 220 Volt 3 Phase AC Drive Motor System & Pneumatic Powered Shear
RF-5V-STAND RF 5V Crimp Panel Stand w/4 Corner Leveler Pads
RF-5V-STRIB RF 5V Crimp Panel Striation Rib Attachment
