Our Universal Heming machines are real time savers to your production requirements allowing you to form Hems, Hem & Kick, and Pipe Lock for commercial down spouting. Fabricate metal on your schedule and not someone else’s!

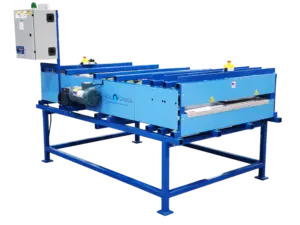

The “Universal Hemming” Machines offer Dual Sided Hemming with ½” Flat Hem or Tear Drop Hem and the Hem & Kick with a 5/8” Kick Out with ½” Hem tooling included in the base machine. Built with “symmetrically designed tooling” to have your profile forming on the top or the bottom of the coil. Interchange the tooling, i.e., form Flat Hem on one side and Kick Out w/ Hem on the other. AC Drive Motor System (Sheet Fed / No Shear), adjustable coil stock width of 8” to 36”, variable to 80 FPM speed, 220 Volt 3 Phase power. 800-753-0393
NOTE: Quick Change tooling in base machine (No hardware, No wrench, spring loaded push/pull pins)
Each Additional Set of “Quick Change” Tooling
Double Sided ¾” Kick Out w/ 5/8″ Return Hem
Double Sided “Pipe Lock”
½” “TEAR DROP” Hem Tooling for the 28 – 29 gauge Grade E
80 ksi Painted Steel (Stages 7 to 10 L/R)
Slitting Knife (1) for increased production
Perforation Dies (2) sets maximum
Optional Oiler Kit for above Perf Dies
Small Stiffening Ribs (2) Quick Release style
Machine Stand w/ Leveler Pads
Add Front End MANUAL Rotary Shear
Add AC Drive GEM Digital Controller
AC Drive Motor – variable to 80 FPM
220 Volt 3 Phase Power
Sheet Fed / No Shear
8″ to 36″ Coil Stock Width
22 – 29 gauge Painted Steel
.032-.040 Painted Aluminum
Each Additional Set of “Quick Change” Tooling
Double Sided ¾” Kick Out w/ 5/8″ Return Hem
Double Sided “Pipe Lock”
½” “TEAR DROP” Hem Tooling for the 28 – 29 gauge Grade E
80 ksi Painted Steel (Stages 7 to 10 L/R)
Slitting Knife (1) for increased production
Perforation Dies (2) sets maximum
Optional Oiler Kit for above Perf Dies
Small Stiffening Ribs (2) Quick Release style
Machine Stand w/ Leveler Pads
Add Front End MANUAL Rotary Shear
Add AC Drive GEM Digital Controller
