ERCOLINA O30 Mega Mandrel Bender

Description

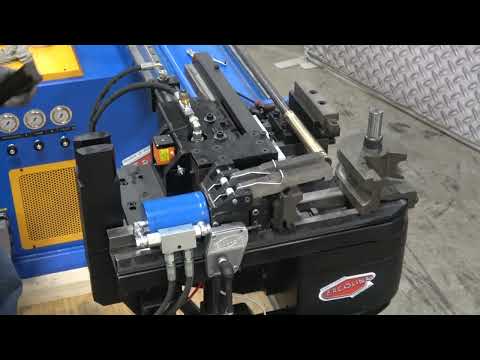

Our 030 MANDREL BENDER IS FEATURED HERE CREATING QUALITY BENDS IN 2-1/2″ OD STAINLESS STEEL!

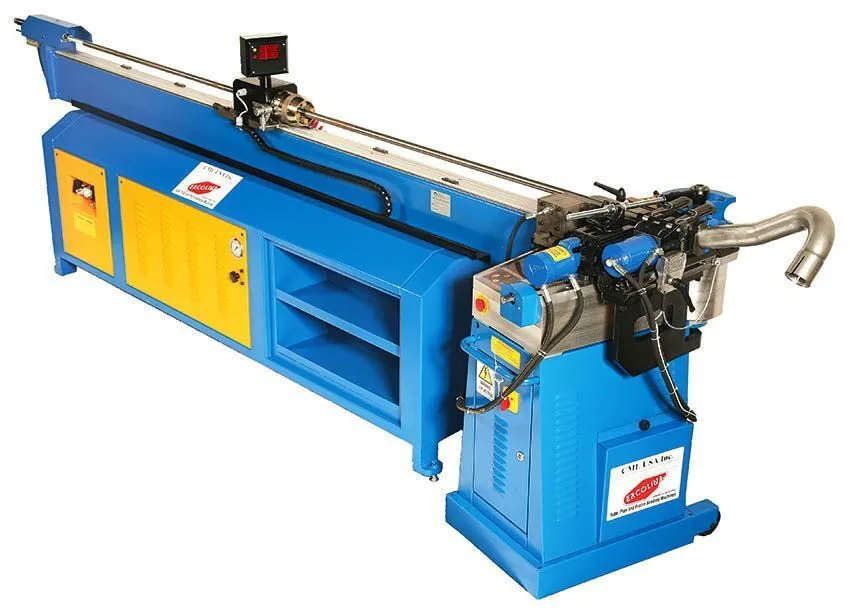

The 030 Mega Bender with mandrel system is ideal for prototype or small production mandrel bending applications. Our affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish. Call 800-753-0393 or email us using the form attached and one of our salesmen will call you. Thank you for your interest!
Mild steel tube capacity 2.5″ (.083 wall)
Stainless tube capacity 2.5″ (.065 wall)
Square tube capacity 2″ (.065 wall)
Pipe capacity 1.5″ Sch. 40
Maximum bend radius 7.875″
Bend to CLR as small as 1.5D
Variable bending speed
Programmable bend angle
Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials
Programmable bend sequencing and mandrel retraction
Independent clamp and pressure die adjustment
Quick change tooling reduces setup time
Bending software available for part layout guideline
Reference display of Y & B axis to assist set-up
Y – Feeding manual with adjustable stops
B – Feeding manual with adjustable stops
C – NC programmable bend angle
A15/H76 – 5′ mandrel table only
A3/H76 – 10′ mandrel table only
A6/H76 – 20′ mandrel table only
