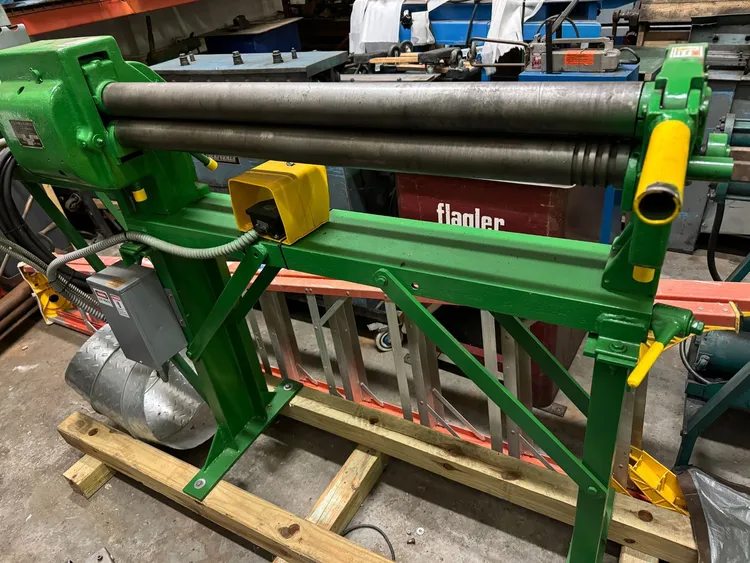

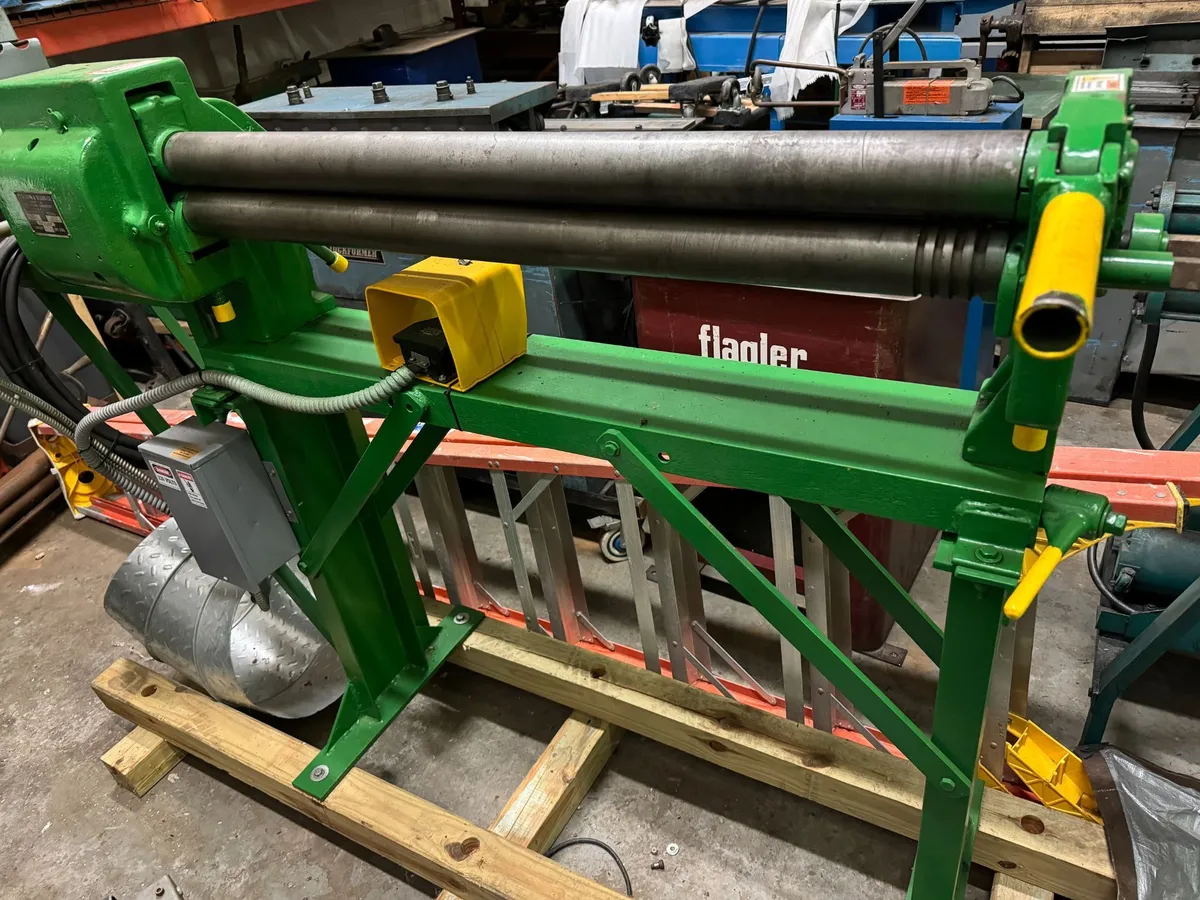

This is a converted 390-E to power Sheet metal slip roller. It is equipped with a 2 H.P 230-Volt 3-Phase Dayton Motor. It is used to form sheet metal into cylindrical and conical shapes. Material is fed into the 2 drive rollers, and the rolls are rotated to feed the material through. An adjustable third roller is situated behind the 2 drive rollers and can be moved closer to or further away from the drive rollers to form tighter or looser curves in the material. The third roller is independently adjustable on the left and right side allowing for more complex shapes like cones to be produced. This unit could be easily converted back to a manual roll, but it works super nice as it is. We won't remove the motor, but the new owner could. BUT why would you? 800-753-0393
Rollers: 3; 2 to drive the material, 1 to form the material
Roller Diameter: 2.5”
Minimum Forming Diameter: 4”
Maximum Width: 36”
Maximum Thickness: .063”
Accessories: Equipped with wire/rod grooves to form cylindrical material
