Sold

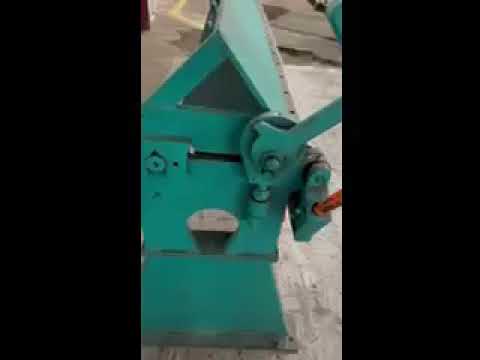

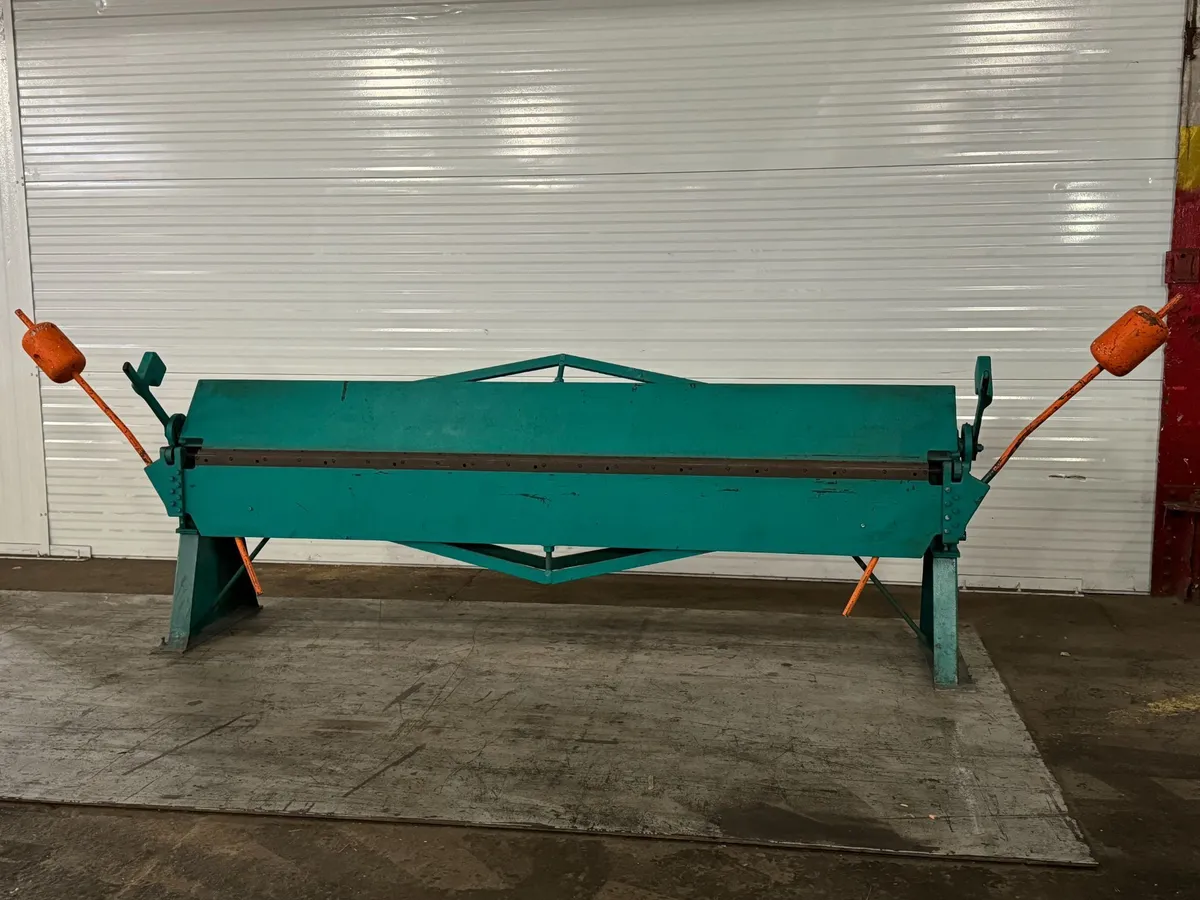

Tennmsmith 10' x 18-ga Hand Brake

Apron Brakes
Manufacturer:
TENNSMITH
Model:
HB121-18
Condition:
Excellent
Year:
2006
Stock #:
8578
Serial #:
05306
Country:
United States
This is an awesome Tennsmith Brake for roofers or an HVAC shop. These brakes bends simple to complex shapes. Tennsmith’s heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability. Other adjustment features include: Leveling screws and lock nuts on the pedestals Jack screws and tensioner bolts on the apron Truss rods on the apron, base and upper beam Fully adjustable counter balances to facilitate the bending process Replaceable nose bar and apron inserts
Capacity (ga)18 gauge18 gauge
Overall Length121"3.1 m

Capacity, Mild Steel 18 Gauge
Bending Length 121 in.
Maximum Lift Of Beam 2-1/4 in.
Front To Rear Beam Adjustment 1/2 in.
Minimum Reverse Bend 1/4 in.
Minimum Flange In Capacity Material 1 in.
Dimensions (counterweights in place) 159 x 52 x 60 in.
Shipping Weight 2800 lbs.
