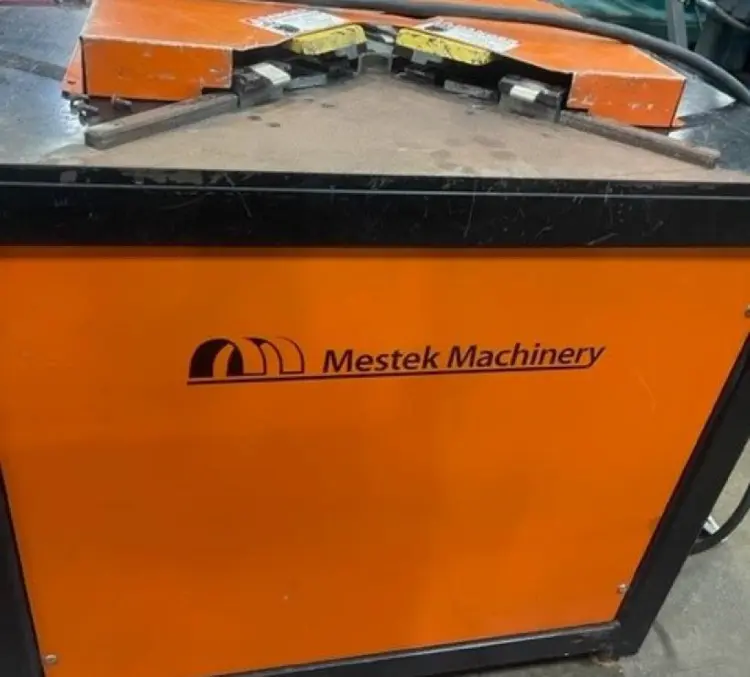

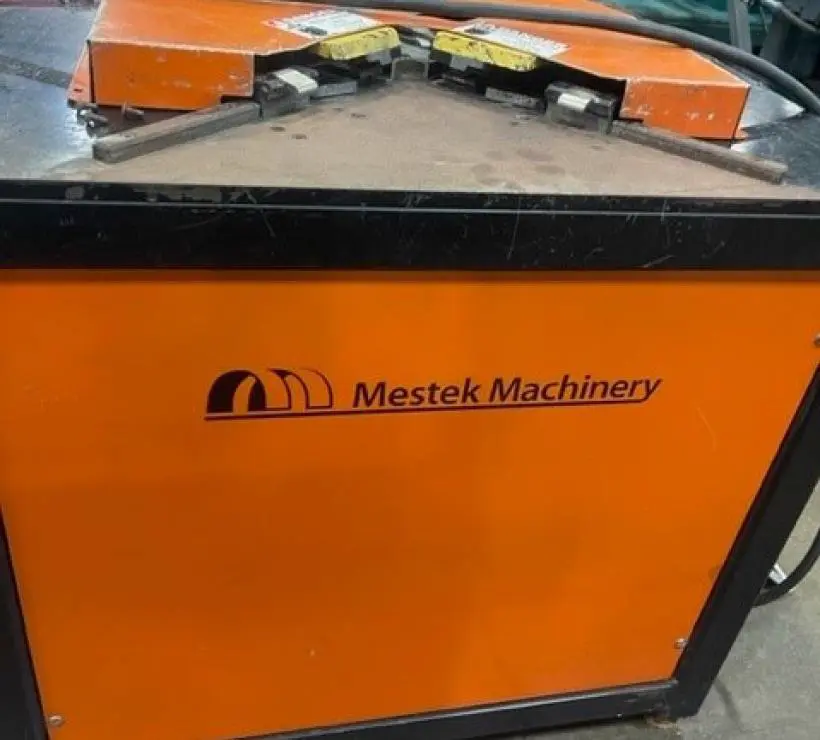

The Iowa Precision Cornermatic Plus HVAC Ductwork Corner Insertion Machine was specifically designed to reduce shop labor by addressing the difficulty with inserting corners into some styles of fitting ductwork. The Cornermatic Plus can handle any transverse duct connector (TDC) or transverse duct flange (TDF) fitting assembled on a bench and automatically and effortlessly inserts and crimps Iowa Precision TDC and TDF Corners in seconds — allowing you to do a duct section — eight (8) corners — in about 20 seconds in any gauge (16 through 26). Test results have shown that the Iowa Precision Cornermatic Plus HVAC Ductwork Corner Inserter Machine can produce 80 ducts/hour vs. 15 ducts/hour for manual insertion. THIS MACHINE IS SUBJECT TO PRIOR SALE.
Type: Automatic Corner Inserter
Flange Type: TDC/TDF
Model No.: CMP-C-16 Cornermatic Plus
Capacity Gauge Range: 16 (.063") to 26 (.022")
Cycle Time: Approx.: 2-1/2 seconds per corner
Overall Dimensions (L x W x H) Approx.: 24-1/8" x 24-1/8" x 40"
Weight Approx. (Lbs.): 900
Electrics: 120V
Air Required: 85 psi (5 to 6 BAR) min.
