TIN KNOCKER TK H1652 HYDRAULIC SHEAR
Have one to sell?
$8,250.00 USD
$8,100.00 USD
ConditionNew
1 available
New
Freight to any business address with a way to unload - $895.00

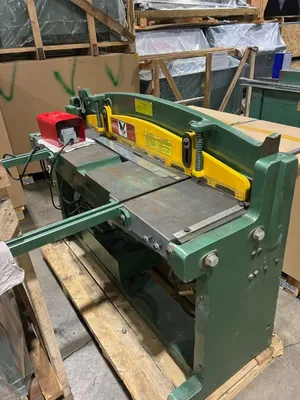

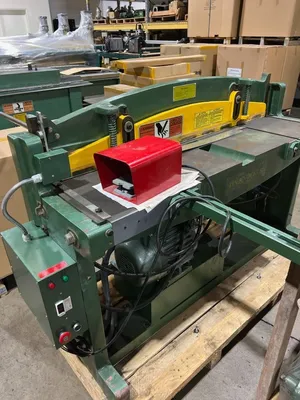

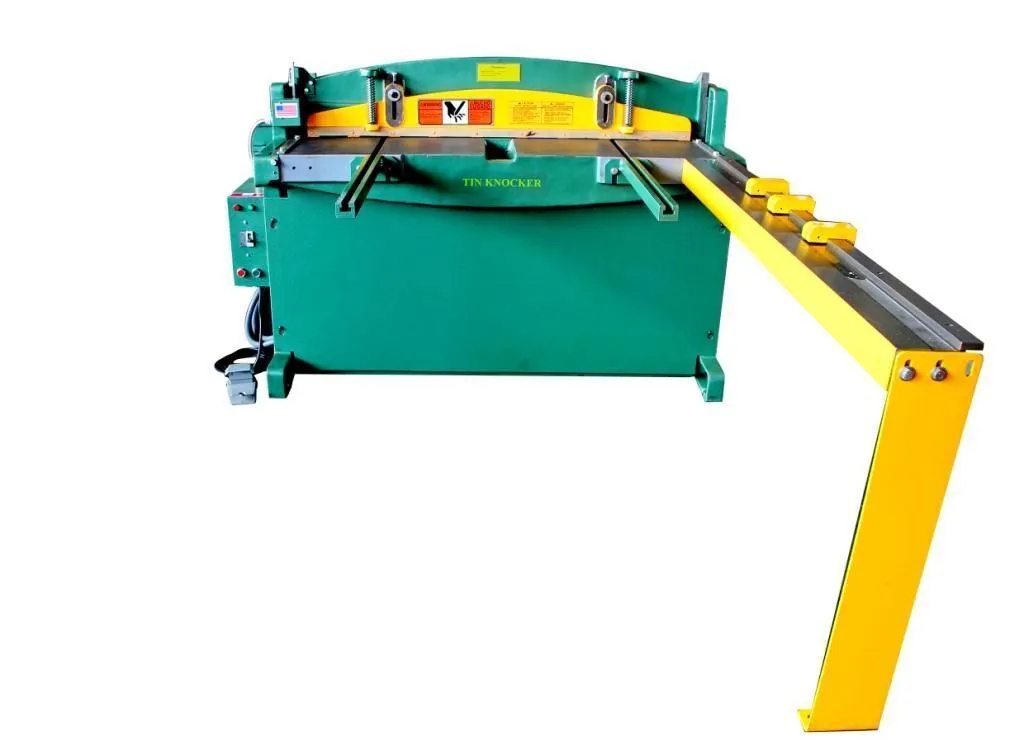

TK H1652 Hydraulic Shear
The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action
INCLUDES: Front support arms, Parallel rack and pinion back gauge, 5ft squaring arm with drop stops.
Specifications:
Weight: 1350 lbs.
Dimensions: 72 x 48 x 36 in.
Maximum shearing capacity, mild steel: 16 ga. / 1,6 mm
Maximum shearing capacity stainless steel: 20 ga. / 1,0 mm
Maximum cutting length: 52 in. / 1320 mm
Back gauge range: 30 in. / 762 mm
Front gauge range: 37 in. / 940 mm
Standard motor: 3 hp. – 220 Volt/ 1 phase / 60HZ
Floor space, gauges in position: 66 x 76 x 42 in/ 1676 x 1930 x 1070 mm
Contact us for more info 800-753-0393
Weight: 1350 lbs.
Dimensions: 72 x 48 x 36 in.
Maximum shearing capacity, mild steel: 16 ga. / 1,6 mm
Maximum shearing capacity stainless steel: 20 ga. / 1,0 mm
Maximum cutting length: 52 in. / 1320 mm
Back gauge range: 30 in. / 762 mm
Front gauge range: 37 in. / 940 mm
Standard motor: 3 hp. – 220 Volt/ 1 phase / 60HZ
Floor space, gauges in position: 66 x 76 x 42 in/ 1676 x 1930 x 1070 mm
