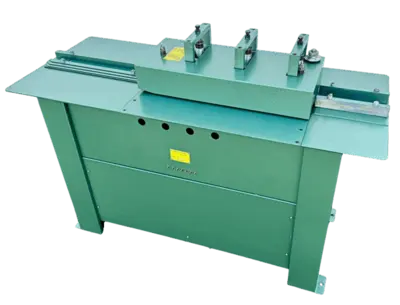

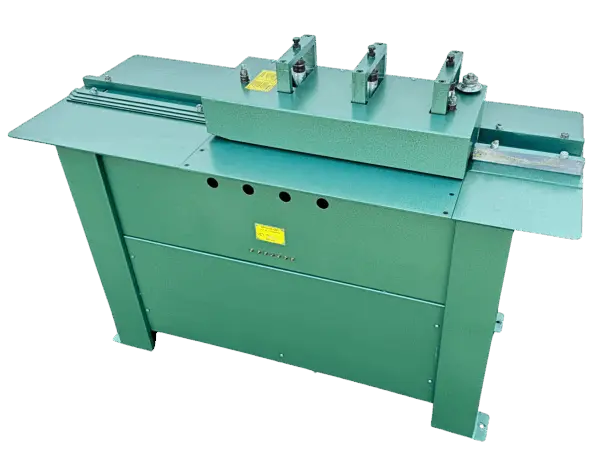

TIN KNOCKER TK 16 GA. PITTSBURGH ROLLFORMER
Have one to sell?
ConditionNew
1 available
$7,950.00 USD
$7,750.00 USD
New
Freight Special to any business address with a way to unload

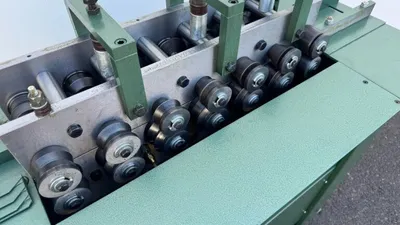

IT COMES LOADED!!! The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions. One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include: Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection. You don’t pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls.
CALL US FOR DELIVERED PRICE. 800-753-0393
Material Capacity (Inboard Rolls): 16ga
Material Capacity (Outboard Rolls): 22-26ga
Motor: 3HP, 230V/3ph/60, 1ph Optional
Speed: 40-45 feet/minute
Pocket Depth: 3/8"-1/2", using 1-3/8" of material
Dimensions: 59”L x 24”W x 41”H
Weight: 650lbs
Capacity: 16-20 Ga. uses approx. 1-3/8” of material
Motor: 3HP, 230/3/60, 1PH Optional
Depth of Pocket/Size: ½” width of hammer-over edge adjustable up to 3/8
Speed: 40-45 ft per minute
CHOOSE FROM:
ROLLS CAPACITY
APPROXIMATE MATERIAL
USED SIZE
Acme (“Double Seam”) Rolls (Type "L"): 16-22 gauge 1-1/4" 7/16" seam
Drive Cleat Rolls: 20-26 Gauge 2-1/8" 1-1/8" width
Combination 4-in-1 Rolls and
4-Step Gauge Straight Right-AngledFlange Rolls:
16-24 Gauge up to 7/16" up to 7/16" high
Right-Angled Flange: 22-26 Gauge 1-1/8" 5/8" seam
Standing Seam: 22-26 Gauge 1-1/8" 5/8" seam
T-Connection: 22-26 Gauge 1-3/4" 5/8" seam
