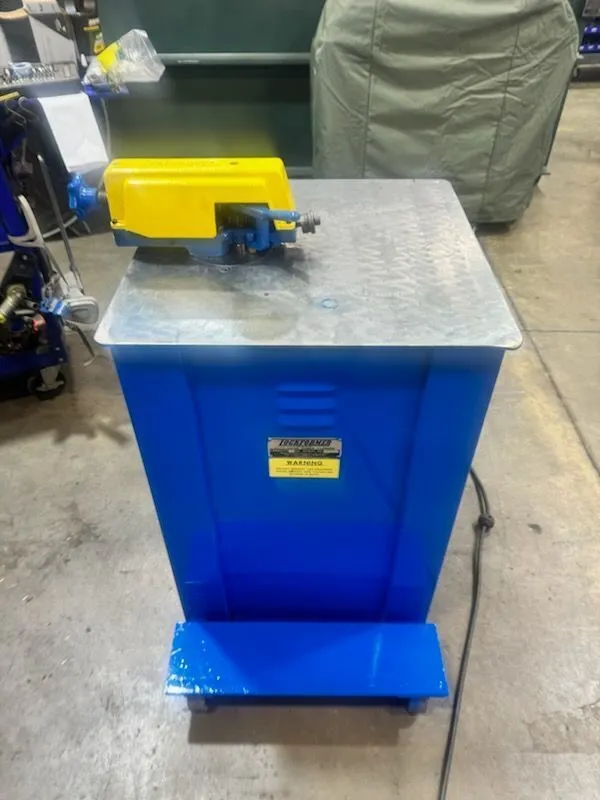

LOCKFORMER 18-Gauge AUTO-GUIDE POWER FLANGER

Description

This REBUILT by professionals is a must as a ductwork prep machine. This 18-gauge has Heavy Duty Casters on it, custom made by the previous owner. They were too well built to remove, they work great, they knew what they were doing! This unit will automatically follow any edge – curved or straight. Use the convenient table slot to turn up a "starting flange" and let it go! A calibrated dial can be set for radii as small as 3-1/4" (or 2" when auto-guide is deactivated). Automatically flange
16-to-26-gauge material at speeds of 18 fpm. A non-releasing type head is suitable for open-end fittings, straight and irregular curves. This one is available immediately.
Model - Lockformer Pittsburgh Lock Roll Former | Model 16 Forming Stations - 5
Capacity - 18–22 gauge
Depth of Pocket - 1/2" Uses approximately 1-3/8" of material Hammer Over-edge
Adjustability - 3/8”
Forming Speed - 40–45 feet per minute
Motor - 3 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 3,600 RPM. 800-753-0393
