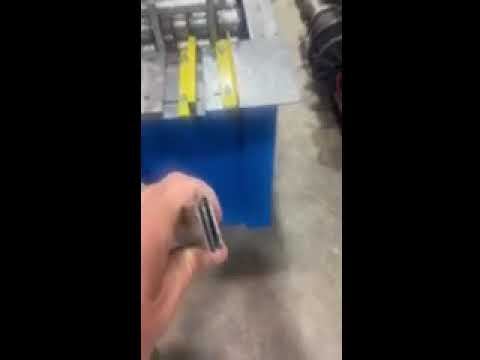

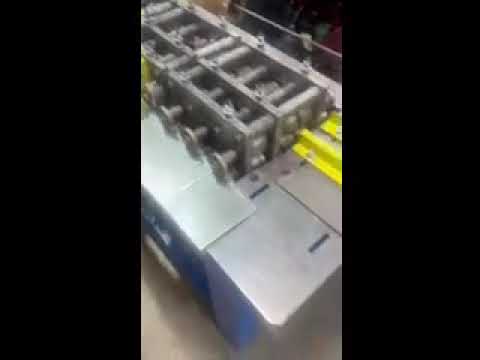

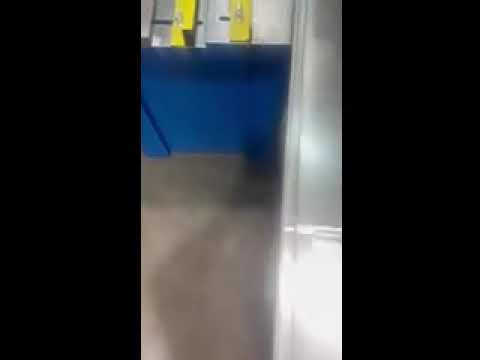

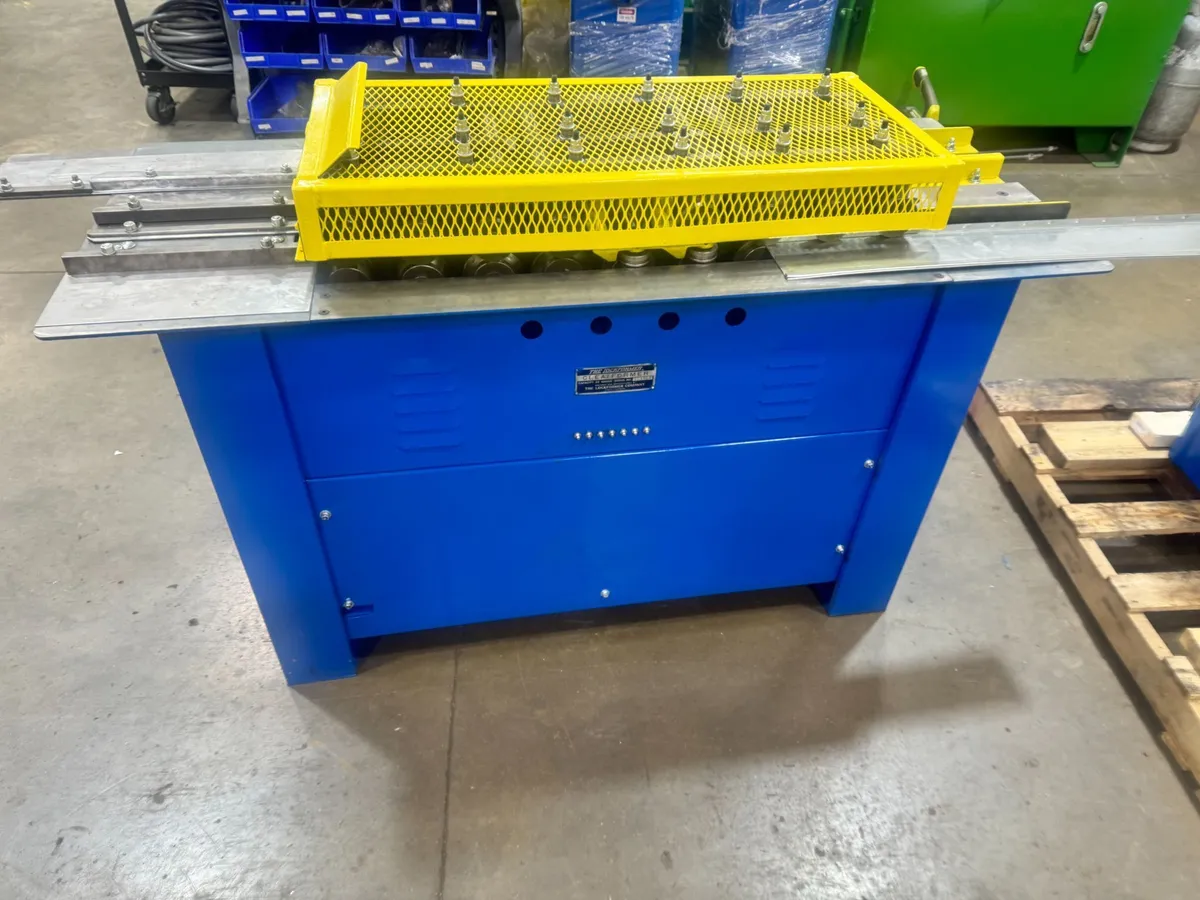

The flexible Lockformer Triplex Cleat Former (SEE VIDEOS BELOW) is designed for super high productivity in the fabrication of inboard cleats. The machine design has two inboard and two outboard forming positions allowing bearing support on both sides of the profile. The top plate and roll assembly are split into three zones with each having special design details like knurled rolls and angled guides to keep material moving through the machine in a straight line. These zones also can be adjusted by the operator to meet the requirements of a wide variety of gauges. This machine was COMPLETELY REBUILT with the following parts replaced.
Our Servicemen Techs removed and replaced all:
Bearings; Thrust washers; Shims; Belle washers; V Belts; Grease lines
Techs replaced: 1- Fiber gear, 1- Main Steel drive gear, 1- Roll shaft, 1- T1 S cleat Roll, 1- T2 S cleat roll, 1- Entry Guide bar, 1- Exit Guide bar, 1- Head spacer, Techs installed 2 wear plates; Techs cleaned and painted stand; Techs cleaned and painted all; covers, and motor; Techs tested and tuned all profiles
Machine originally had slitting.
SPEC PARTS PARTS
1- T1 S Cleat Roll
SPEC PARTS PARTS
1- T2 S cleat roll With Grip edge
1- Main Fiber gear with hub
1- Main Steel drive gear
1- Entry guide
1- exit Guide
1 - head spacer

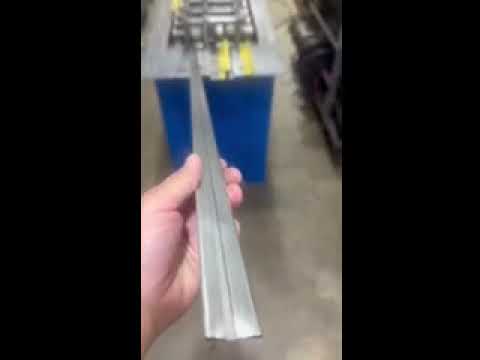

The Triplex forms inboard S cleats or drive cleats, S cleat width of 1 1/16", drive cleat width of 1 1/8", 22-28 gauge for S cleat, 20-26 gauge for drive cleat profile and you can choose from twelve (12) auxiliary roll set profiles for the outboard forming positions. You can pick the additional roll profiles from the attached chart.
High precision needle-type bearings,
Heavy 3/4″ chassis plate, case-hardened and ground roll shafts, and an arc-welded steel stand protected with Lockformer’s top quality primer and paint finish.
OPTIONS:
- Up to twelve (12) auxiliary roll set profiles on the outboard forming positions (see chart)
- Combination “S” and drive cleat scrap cutter attachment
The Cleat Roll Forming Machine, Triplex Model, is covered by the standard limited warranty described in detail in Lockformer's terms and conditions of sale for a period of six (6) months.
Specifications
Brand - Lockformer
Model - Triplex Cleat Former
Capacity:
22-28 gauge for "S" cleat profile
20-26 gauge for drive cleat profile
Depth of Pocket / Size:
"S" cleat width 1-1/16"
Drive cleat width 1-1/8"
Speed - 100 feet per minute
Passline: - 32-1/2"
Drive: V-Belt
Manual switch with across the line starter
Motor / Voltage - 5 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM.
