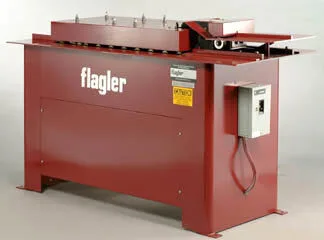

FLAGLER QUADFORMER

Description

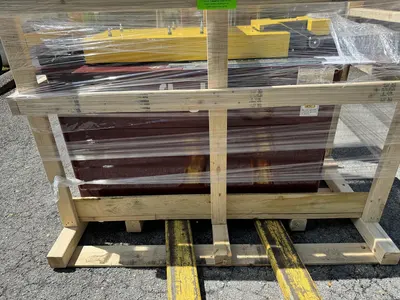

This new Quadformer is equipped with the Optional Slitter Attachment and 20-gauge Male/Female Snaplock Rolls.
This is a 10 station rollformer with Flat S and Drive Cleat rolls built inboard and 2 outboard roll set profile available, pulls approx 16 amps, standard 230 Volt 3 Phase Electrics. Single Phase Electrics available as special order

Runs 100 ft per min

With (10) Forming Stations, the Flagler Quadformer comes standard with “S” and Drive Cleat on the inboard forming positions. Machine has two Outboard Auxiliary Shafts which allow for your choice of Male or Female Button Lock, or Pittsburgh and 3-in-1 Rolls. The optional Quad Cutter attachment allows the shop to use up drop for their S & Drive Cleats while also avoiding having to pre-cut widths of 2.125″ and 3.625″
All Quadformers come standard as 3 Phase. For Single Phase add $740.

Note: If ordering for an existing unit to be converted, price is $1,000, then factory will issue credit of $260 upon receipt of original motor and starter return.

Tap in 3-in-1 rollset includes Outside Tap, End Cap profile, ½” Right Angle
4-in-1 entrance guide is upon request, no additional charge
Usually they are set for the ¼” right angle Male Pittsburgh
