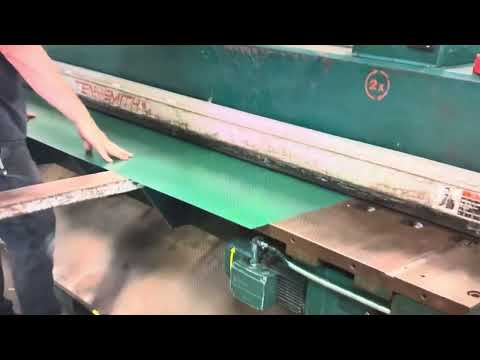

This LM1014 shear has the 2x back gauge system. This allows the operator to move the backstop from 0 up to 30 inches (0 to 24 inches for Model LM410) in approximately 2 seconds with only two rotations of the handle. An optional digital readout is available for this system.
The LM Series shears are standard with four edge, high carbon/high chromium (HCHC) top and bottom blades, solid-bar hold-down with non-marring urethane insert, single, continuous and job stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs. The LM410 model incorporates all of the popular LM series features into this 52-1/2″ cutting length, 10-gauge mild steel capacity shear. Model LM610 has a rated capacity of 10-gauge mild steel with a maximum cutting length of 60-1/2 inches.
Tennsmith’s LM1010 is standard equipped with a 30-inch powered back gauge system. The ballscrew-driven back gauge provides quick, accurate cuts. The LM1010 is powered by a 12-1/2-hp gear motor attached to a mechanical linkage which provides smooth, quiet operation.
The LM1010 is rated at a maximum of 10-gauge material with a cutting width of 121 inches. To enhance productivity, optional equipment available for the machines include: five or ten-foot squaring arm, front support arms, light beam and protractor attachment. A rear drop sheet support system is available for the LM1010.
Additionally, the LM1010-2x is equipped with the popular 2x manual back gauge option. This allows the operator to move the backstop from 0 to 30 inches in approximately two seconds with only two rotations of the handle. An optional digital readout is available for this system.
Capacity, Mild Steel: 14 Gauge 2.0 mm
Capacity, Stainless Steel: 18 Gauge 1.25 mm
Maximum Cutting Length: 126 in.
Back Gauge Range: 30 in. 762 mm
Strokes Per Minute, Full-Length: 35
Motor-230/460v, 3-Phase, 60Hz: 5 hp
Number of Hold-downs: 16
Solid bar with non-marring urethane insert: 18
Floor Space, Gauges in Position: 143 x 72 x 56 in.
Shipping Weight: 5900 lbs. 2682 kg
Unique 2x back gauge system for rapid adjustments
Four edge high carbon /high chromium blades
Independent self-leveling material hold down feet with neoprene inserts
Reversible motor with controls for single, continuous, and job stroke cycles
Precision machined table with hand well
Dual inch / metric inlaid bed scales
Non-metallic gibs.
