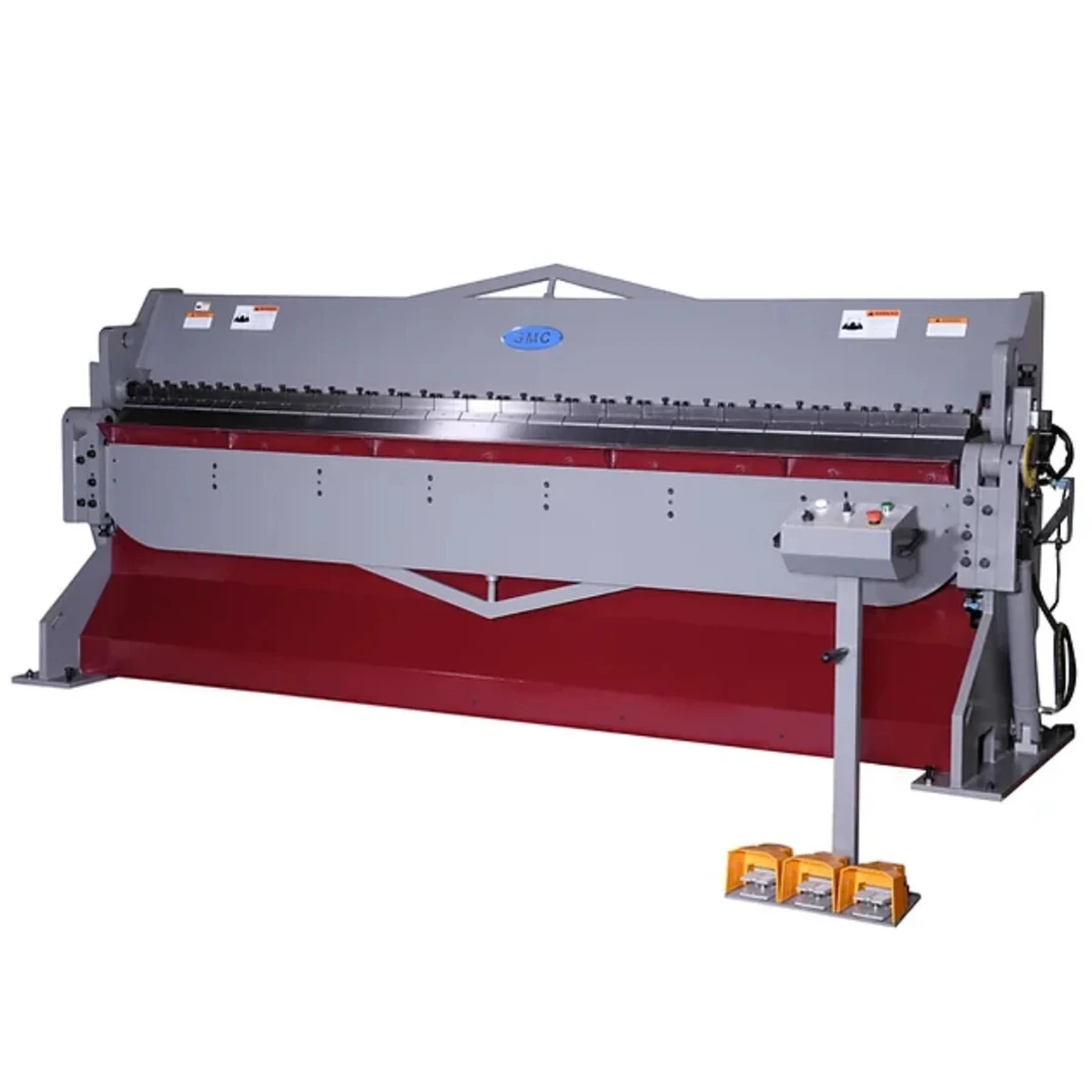

GMC HBB-1014 10 ft Sheet Metal Brake / 14 Gauge Mild Steel
Folding Machines| $23,850.00 USD |
.jpg)
.jpg)
.jpg)
ISO 9001 certified.
Hydraulic adjustment for opening.
Hydraulic power clamping for workpiece.
26” manual back gauge with handwheel.
1” manual beam adjustment (front and back).
Min. reverse bend is 3/4” (20mm).
Heavy welded all steel construction for maximum rigidity.
Rexroth Hydraulic logic system centrally located and quiet.
A wide guide body ensures strong, stable, smooth & accurate movement.
Total pieces fingers assortment: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
Central control panels on each side for convenient operation.
Jog and auto operation modes.
Overload protection and disconnect switch.
Assorted box and pan fingers.
26” manual back gauge with one side handwheel operation.
Angle set up dial.
Hydraulic clamping system.
Foot pedal control for hydraulic clamping & auto mode
MAKE AN OFFER, 800-753-0393 or sales@sheetmetalmachinery.com
| Max Thickness (gauge) | 14 gauge |
| Dimensions | 142" x 46" x 66" |
| Weight | 6950 |
Max Bending Length: 10'
Bending Capacity:
Mild Steel: 14-gauge
Max Bending Length: 10'
Bending Capacity:
Mild Steel - 14-gauge
Stainless Steel - 16-gauge
Hemming max thickness: 28 Ga.
Bend Degree: 135
Max. Box Depth: 6"
Large Beam Opening: 3"
Manual Back Gauge: 26”
Oil Tank Gal. 17 Gal
Hydraulic Oil: Shell #68 or equivalent
Main Motor 5 HP 3 Phase
Prewired: 220VAC 20A
Optional: 440VAC 10A
Weight 6,850 lbs.
Shipping Weight: 6,950 lbs.
Overall Dimensions 142" x 46" x 66"
Shipping Dimensions: 153” x 41” x 67”
Assorted Box & Pan Fingers.
26” manual back gauge with one side handwheel operation.
Angle set up dial.
Hydraulic clamping system.
Foot pedal control for hydraulic clamping & auto mode.
