Taiwan Machines
ISO 9001 certified

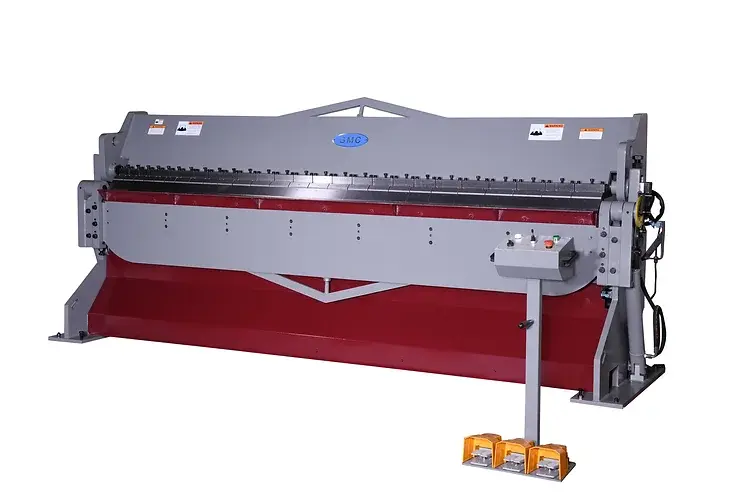

Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Comes with one 10’ straight finger
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
Max Bending Length: 10'
Bending capacity: .....................................10’x 14Ga
mild steel(hot roll), 60,000PSI:................ 10’x 14Ga
stainless steel, tensile 85,000PSI:........... 10’x 16Ga
soft aluminum, tensile 28,000PSI:........... 10’ x 10Ga
Hemming max thickness.......................... 28Ga.
Straight Finger Length:..............................10'1"
Bend Degree:..............................................135
Max. box and pan depth w/ fingers..........6"
Large Beam Opening:................................3"
Manual Back Gauge:.................................26”
Oil Tank Gal.:.............................................17 Gal.
Hydraulic Oil:.............................................Shell #68 or equivalent
Main Motor: ..............................................5 HP 3 Phase
Prewired:................................................... 220VAC 20A
Weight:.......................................................6,850 lbs.
Shipping Weight:.......................................6,950 lbs.
Overall Dimensions:..................................142" x 46" x 66"
Shipping Dimensions:...............................153” x 41” x 67”
