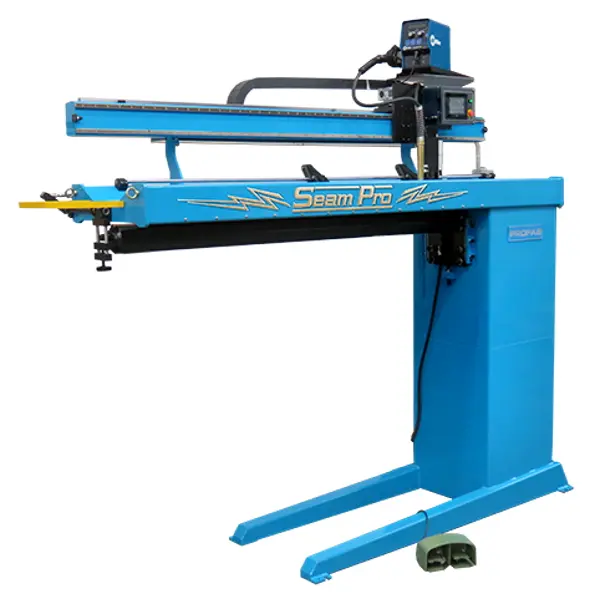

The PLS line of seam Welders is designed for longitudinal seam welding of materials in thicknesses from 22ga. Through 10ga. and lengths from 1” to 72”. Standard maximum part diameter is 38”, however an interchangeable riser platform insert is included at no extra cost for welding part diameters up to 62”.
The PLS seamer consists of *A rigid platform which includes a clamping finger mechanism that will hold parts in place during the welding cycle, *A side beam track with precision linear bearings upon which a servo driven motor carriage is mounted (linear bearings provide smooth and consistent motion up and down the complete length of the side beam assembly which enables the machine to consistently produce smooth clean accurate welds), *And a microprocessor carriage controller for automatic sequencing of the carriage travel and sequencing of the power supply (MIG, TIG, ETC) starting and stopping.
-Water Cooled Mandrel, allows for a six inch (6”) minimum rectangular or round part diameter
Several Welding Power Supplies are available and compatible with the seam welder control, including TIG, MIG, Plasma, Laser.
Standard Features include:
- Side Beam Track and Carriage
- Pneumatic drive release. Disengages drive allowing for manual movement of carriage.
- Carriage mounted motor control with digital read out, jog functions, Forward / Reverse selector, Start/Stop controls and E stop (with microprocessor for automatic sequencing of the carriage travel and sequencing of the power supply starting and stopping).
