This is a Em-Pro 10′ x 10 Gauge 2-Axis NC Hydraulic Folder with 6″ Box Depth Fingers, VHS-1035
Model: VHS-1035 S/N: 8535 “2021”. Ready to ship.
Bending Length: 122″ (10′)
Bending Capacity:
Mild Steel: 0.137″
Stainless Steel: 0.098″
Bending Angle: 0 – 135°
Max. Box Height (with 6″ Tools): 6″
Min. Reverse Bend: 1.181″
Motor: 5 HP / 220v / 3ph
Standard Features:
Schneider 2-Axis 7″ Touch Screen NC Control for Bend Angle

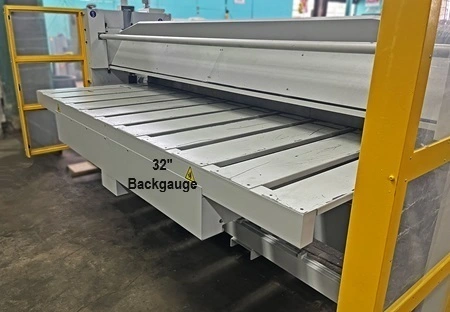

32″ Back Gauge
4″ and 6″ Tall Tooling
Manual Gap Adjustment and Crowning on Lower Beam
Front and Rear Safety Lights
Segmented Upper Tools
Three-Function Foot Pedal
Mechanical Specifications:
Dimensions: 169″ x 43″ x 68″ H
Weight: approx. 10,000 lbs.
CALL OR EMAIL US FOR MORE DETAILS. MACHINE CAN BE SEEN UNDERPOWER.
