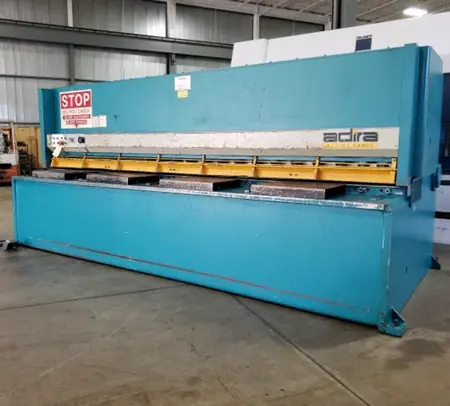

ADIRA 13' x 3/8" Hydraulic Squaring Shear
Have one to sell?
ConditionUsed
1 available
$37,500.00 USD
General Specifications
Type: Hydraulic Swing Beam Guillotine Shear
Model No.: GHS-1040
Capacity: 10 mm (.393701"")
Length: 4050 mm (159.4488"", 13')
Weight Approx. (Lbs.): 27,000
Electrics: Volt 220/440, 60 Hz
Serial No.: 3196/8688D
Year: 1997
Additional Information
Power Operated Back Gauge, Blade Gap Adjustment, Squaring Arm, Foot Pedal Control
Power Operated Back Gauge, Blade Gap Adjustment, Squaring Arm, Foot Pedal Control
General Specifications
Type: Hydraulic Swing Beam Guillotine Shear
Model No.: GHS-1040
Capacity: 10 mm (.393701"")
Length: 4050 mm (159.4488"", 13')
Weight Approx. (Lbs.): 27,000
Electrics: Volt 220/440, 60 Hz
Serial No.: 3196/8688D
Year: 1997
Additional Information
Power Operated Back Gauge, Blade Gap Adjustment, Squaring Arm, Foot Pedal Control
Imperial
| Max Thickness | 38" |
| Length of Blade | 160.69" |
| Hyd/Mech | Hyd |
| Back Gauge | 40" |
| Power | 18 hp |
| SPM | 11 strokes/min. |
| Dimensions | 185 x 94 x 78 |
| Weight | 28190 |
Power Operated Back Gauge, Blade Gap Adjustment, Squaring Arm, Foot Pedal Control
